Canon 1D vs Leica S-E Typ 006

The Canon EOS-1D and the Leica S-E (Typ 006) are two professional cameras that were officially introduced, respectively, in September 2001 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D) and a medium format (S-E Typ 006) sensor. The Canon has a resolution of 4.1 megapixels, whereas the Leica provides 37.5 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.

Headline Specifications
Canon 1D   Leica S-E Typ 006
Canon 1D Leica S-E Typ 006
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Leica S mount lenses
4.1 MP, APS-H Sensor 37.5 MP, Medium Format Sensor
no Video no Video
ISO 200-1600 (100-3200) ISO 100-1600
Optical viewfinder Optical viewfinder
2.0" LCD, 120k dots 3.0" LCD, 922k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
8 shutter flaps per second 1.5 shutter flaps per second
Weathersealed bodyWeathersealed body
156 x 158 x 80 mm, 1585 g 160 x 120 x 80 mm, 1260 g

Body comparison: Canon 1D vs Leica S-E Typ 006

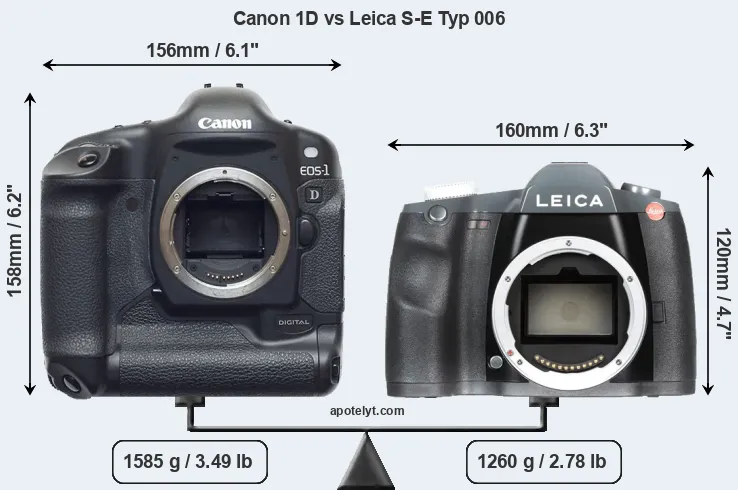

The physical size and weight of the Canon 1D and the Leica S-E Typ 006 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

Compare Canon 1D and Leica S-E Typ 006
Compare 1D versus S-E Typ 006 top

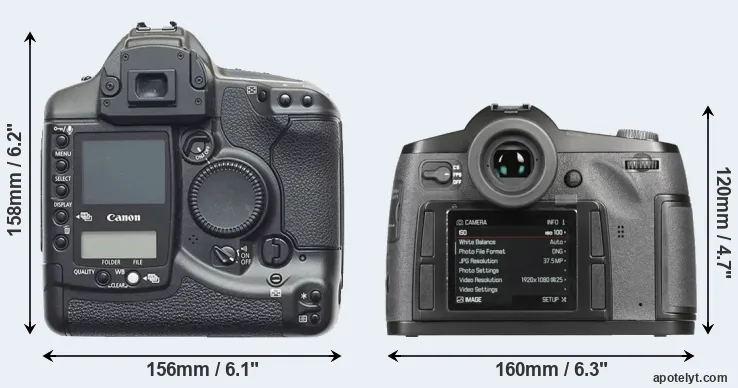

Compare 1D or S-E Typ 006 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S-E Typ 006 is notably smaller (22 percent) than the Canon 1D. Moreover, the S-E Typ 006 is markedly lighter (21 percent) than the 1D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the S-E Typ 006, Leica provides the Multi-Function Handgrip S vertical grip as an optional accessory (see here on eBay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D» 6.1 in 6.2 in 3.1 in 55.9 oz 500 Y Sep 2001 6,499- i Canon 1D
Leica S-E Typ 006« 6.3 in 4.7 in 3.1 in 44.4 oz .. Y Sep 2014 16,900- i Leica S-E Typ 006
Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1D C« » 6.2 in 6.5 in 3.3 in 54.5 oz 1120 Y Apr 2012 14,999- i Canon 1D C
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« » 6.1 in 6.2 in 3.1 in 43.4 oz 1500 Y Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« » 6.1 in 6.2 in 3.1 in 40.7 oz 2200 Y Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« » 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« » 6.1 in 6.2 in 3.1 in 55.2 oz 1200 Y Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« » 6.1 in 6.2 in 3.1 in 54.1 oz 1200 Y Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« » 6.1 in 6.2 in 3.1 in 44.6 oz 600 Y Sep 2002 8,999- i Canon 1Ds
Leica S3« » 6.3 in 4.7 in 3.1 in 44.4 oz .. Y Sep 2018 24,490 i i Leica S3
Leica SL« » 5.8 in 4.1 in 1.5 in 29.9 oz 400 Y Oct 2015 7,450 i i Leica SL
Leica S Typ 007« » 6.3 in 4.7 in 3.1 in 44.4 oz .. Y Sep 2014 24,490 i i Leica S Typ 007
Leica S Typ 006« » 6.3 in 4.7 in 3.1 in 44.4 oz .. Y Sep 2012 21,950- i Leica S Typ 006
Leica S2« » 6.3 in 4.7 in 3.1 in 49.7 oz .. Y Sep 2008 22,995- i Leica S2

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 1D was launched at a markedly lower price (by 62 percent) than the S-E Typ 006, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 1D vs Leica S-E Typ 006

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Leica S-E Typ 006 a medium format sensor. The sensor area in the S-E Typ 006 is 146 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, both cameras are equipped with CCD (Charged Coupled Device) sensors.

Canon 1D and Leica S-E Typ 006 sensor measures

With 37.5MP, the S-E Typ 006 offers a higher resolution than the 1D (4.1MP), but the S-E Typ 006 has smaller individual pixels (pixel pitch of 6.00μm versus 11.56μm for the 1D). Yet, the S-E Typ 006 is a much more recent model (by 12 years and 11 months) than the 1D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S-E Typ 006 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Leica S-E (Typ 006) are ISO 100 to ISO 1600 (no boost).

1D versus S-E Typ 006 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D» APS-H 4.1 2496 1662-----Canon 1D
Leica S-E Typ 006« Medium Format 37.5 7500 5000-----Leica S-E Typ 006
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 1D C« » Full Frame 17.9 5184 34564K/24p----Canon 1D C
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 1D Mark IV« » APS-H 16.0 4896 32641080/30p22.812.0132074Canon 1D Mark IV
Canon 1D Mark III« » APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 1D Mark II N« » APS-H 8.2 3504 2336-22.311.297566Canon 1D Mark II N
Canon 1D Mark II« » APS-H 8.2 3504 2336-22.311.1100366Canon 1D Mark II
Canon 1Ds« » Full Frame 11.0 4064 2704-21.811.095463Canon 1Ds
Leica S3« » Medium Format 64.0 9800 65334K/24p----Leica S3
Leica SL« » Full Frame 24.0 6000 40004K/30p25.013.4182188Leica SL
Leica S Typ 007« » Medium Format 37.5 7500 50004K/24p----Leica S Typ 007
Leica S Typ 006« » Medium Format 37.5 7500 5000-23.912.282476Leica S Typ 006
Leica S2« » Medium Format 37.5 7500 5000-----Leica S2
Neither the 1D nor the S-E Typ 006 offer Live View, so that they cannot project the live image that the sensor receives onto the rear screen. Moreover, both cameras are still-image focused and cannot record videos.


Feature comparison: Canon 1D vs Leica S-E Typ 006

Beyond body and sensor, cameras can and do differ across a range of features. The 1D and the S-E Typ 006 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The following table reports on some other key feature differences and similarities of the Canon 1D, the Leica S-E Typ 006, and comparable cameras.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model
Canon 1D»optical Y 2.0 120 fixed n 16000 8.0 n n Canon 1D
Leica S-E Typ 006«optical Y 3.0 922 fixed n 4000 1.5 n n Leica S-E Typ 006
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 1D C« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D C
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 1D Mark IV« »optical Y 3.0 920 fixed n 8000 10.0 n n Canon 1D Mark IV
Canon 1D Mark III« »optical Y 3.0 230 fixed n 8000 10.0 n n Canon 1D Mark III
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 1D Mark II N« »optical Y 2.5 230 fixed n 8000 8.5 n n Canon 1D Mark II N
Canon 1D Mark II« »optical Y 2.0 230 fixed n 8000 8.3 n n Canon 1D Mark II
Canon 1Ds« »optical Y 2.0 120 fixed n 8000 3.0 n n Canon 1Ds
Leica S3« »optical Y 3.0 922 fixed n 4000 3.0 n n Leica S3
Leica SL« »4400 Y 3.0 1040 fixed Y 8000 11.0 n n Leica SL
Leica S Typ 007« »optical Y 3.0 922 fixed n 4000 3.5 n n Leica S Typ 007
Leica S Typ 006« »optical Y 3.0 922 fixed n 4000 1.5 n n Leica S Typ 006
Leica S2« »optical Y 3.0 460 fixed n 4000 1.5 n n Leica S2

The 1D writes its imaging data to Compact Flash cards, while the S-E Typ 006 uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.



Connectivity comparison: Canon 1D vs Leica S-E Typ 006

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Leica S-E (Typ 006) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D»Y-----FW---Canon 1D
Leica S-E Typ 006«Y----mini2.0---Leica S-E Typ 006
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon 1D C« »YmonomonoYYmini2.0---Canon 1D C
Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X
Canon 1D Mark IV« »Ystereo-Y-mini2.0---Canon 1D Mark IV
Canon 1D Mark III« »Y-----2.0---Canon 1D Mark III
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 1D Mark II N« »Y-----1.1---Canon 1D Mark II N
Canon 1D Mark II« »Y-----1.1---Canon 1D Mark II
Canon 1Ds« »Y-----FW---Canon 1Ds
Leica S3« »YstereomonoYYmini3.0Y--Leica S3
Leica SL« »YstereomonoYYfull3.0Y--Leica SL
Leica S Typ 007« »YstereomonoYYmini3.0Y--Leica S Typ 007
Leica S Typ 006« »Y----mini2.0---Leica S Typ 006
Leica S2« »Y----mini2.0---Leica S2

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the 1D and the S-E Typ 006 have been discontinued, but can regularly be found used on eBay. The 1D was replaced by the Canon 1D Mark II, while the S-E Typ 006 was followed by the Leica S Typ 007.


Review summary: Canon 1D vs Leica S-E Typ 006

So what is the bottom line? Is there a clear favorite between the Canon 1D and the Leica S-E Typ 006? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon EOS-1D:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Faster shutter: Has higher mechanical shutter speed (16000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (8 vs 1.5 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in September 2001).

ilogo

Arguments in favor of the Leica S-E (Typ 006):

  • More detail: Has more megapixels (37.5 vs 4.1MP), which boosts linear resolution by 201%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: Larger sensor generates images with better, more accurate colors.
  • More dynamic range: Capable of capturing a wider spectrum of light and dark details.
  • Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (922k vs 120k dots).
  • More compact: Is smaller (160x120mm vs 156x158mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 325g or 21 percent) and is thus easier to take along.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
  • More modern: Reflects 12 years and 11 months of technical progress since the 1D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the S-E Typ 006 is the clear winner of the contest (12 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.

1D 06:12 S-E Typ 006

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 1D or the S-E Typ 006. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews: Canon 1D vs Leica S-E Typ 006

This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D»-HiRec--- Sep 2001 6,499- i Canon 1D
Leica S-E Typ 006«----- Sep 2014 16,900- i Leica S-E Typ 006
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1D C« »----- Apr 2012 14,999- i Canon 1D C
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« »-89/100-5/5- Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« »---rev- Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« »----- Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« »-HiRec-rev- Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« »-HiRec--- Sep 2002 8,999- i Canon 1Ds
Leica S3« »----- Sep 2018 24,490 i i Leica S3
Leica SL« »-84/1004.5/54/54/5 Oct 2015 7,450 i i Leica SL
Leica S Typ 007« »----- Sep 2014 24,490 i i Leica S Typ 007
Leica S Typ 006« »----- Sep 2012 21,950- i Leica S Typ 006
Leica S2« »----- Sep 2008 22,995- i Leica S2

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon 1D:
Check Ebay offers
Leica S-E Typ 006:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

    Specifications: Canon 1D vs Leica S-E Typ 006

    Camera Specifications
    Camera Model Canon 1D Leica S-E Typ 006
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Leica S mount lenses
    Launch Date September 2001 September 2014
    Launch Price USD 6499 USD 16900
    Sensor Specs
    Sensor Technology CCD CCD
    Sensor Format APS-H Sensor Medium Format Sensor
    Sensor Size 28.7 x 19.1 mm 45.0 x 19.1 mm
    Sensor Area 548.17 mm2 1350 mm2
    Sensor Diagonal 34.5 mm 54.1 mm
    Crop Factor 1.3x 0.8x
    Sensor Resolution 4.1 Megapixels 37.5 Megapixels
    Image Resolution 2496 x 1662 pixels 7500 x 5000 pixels
    Pixel Pitch 11.56 μm 6.00 μm
    Pixel Density 0.76 MP/cm2 2.78 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability no Video no Video
    ISO Setting 200-1600 ISO 100-1600 ISO
    ISO Boost 100-3200 ISO no Enhancement
    Screen Specs
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 98%
    Viewfinder Magnification 0.55x 0.87x
    Top-Level Screen Control Panel Control Panel
    Rear LCD Size 2.0 inch 3.0 inch
    LCD Resolution 120k dots 922k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs
    Autofocus System Phase-detect AF Phase-detect AF
    Maximum Shutter Speed 1/16000s 1/4000s
    Continuous Shooting 8 shutter flaps/s 1.5 shutter flaps/s
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CF cards CF or SDXC cards
    Second Storage Option Dual card slots Dual card slots
    Connectivity Specs
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector Firewire USB 2.0
    HDMI Port no HDMI mini HDMI
    Wifi Support no Wifi no Wifi
    Body Specs
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type NP-E3 power pack BP-PRO1 power pack
    Body Dimensions 156 x 158 x 80 mm
    (6.1 x 6.2 x 3.1 in)
    160 x 120 x 80 mm
    (6.3 x 4.7 x 3.1 in)
    Camera Weight 1585 g (55.9 oz) 1260 g (44.4 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
