Canon 1D vs Leica M-E Typ 240

The Canon EOS-1D and the Leica M-E (Typ 240) are two digital cameras that were revealed to the public, respectively, in September 2001 and June 2019. The 1D is a DSLR, while the M-E Typ 240 is a rangefinder-focusing mirrorless camera. The cameras are based on an APS-H (1D) and a full frame (M-E Typ 240) sensor. The Canon has a resolution of 4.1 megapixels, whereas the Leica provides 23.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 1D		Leica M-E Typ 240
Digital single lens reflex		Rangefinder camera
Canon EF mount lenses		Leica M mount lenses
4.1 MP – APS-H sensor		23.7 MP – Full Frame sensor
no Video		1080/25p Video
ISO 200-1,600 (100 - 3,200)		ISO 200-6,400
Optical viewfinder		Optical viewfinder
2.0" LCD – 120k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
8 shutter flaps per second		3 shutter flaps per second
Weathersealed body		Weathersealed body
500 shots per battery charge		500 shots per battery charge
156 x 158 x 80 mm, 1585 g		139 x 80 x 42 mm, 680 g

Check 1D offers at
ebay.com
Check M-E Typ 240 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D and the Leica M-E (Typ 240)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

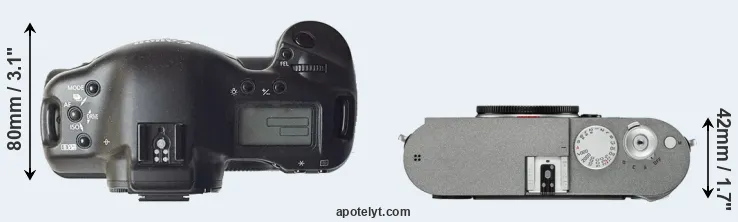

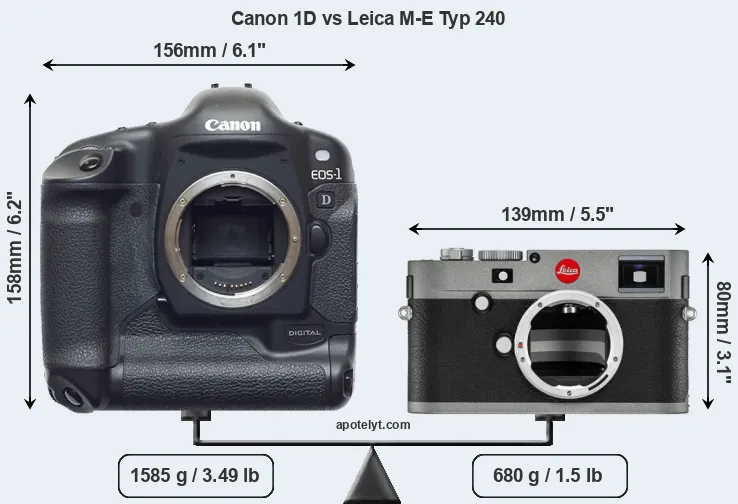

The side-by-side display below illustrates the physical size and weight of the Canon 1D and the Leica M-E Typ 240. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M-E Typ 240 is considerably smaller (55 percent) than the Canon 1D. Moreover, the M-E Typ 240 is substantially lighter (57 percent) than the 1D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1D) and the Leica M Lens Catalog (M-E Typ 240).

As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1D	156 mm	158 mm	80 mm	1585 g	500	Y	Sep 2001	6,499	ebay.com
2.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	3,999	ebay.com
3.		Canon 1D X Mark III	158 mm	168 mm	83 mm	1440 g	2850	Y	Jan 2020	6,499	amazon.com
4.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	5,999	ebay.com
5.		Canon 1D C	158 mm	164 mm	83 mm	1545 g	1120	Y	Apr 2012	14,999	ebay.com
6.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	6,799	ebay.com
7.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	4,999	ebay.com
8.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	4,499	ebay.com
9.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	7,999	ebay.com
10.		Canon 1D Mark II N	156 mm	158 mm	80 mm	1565 g	1200	Y	Aug 2005	3,999	ebay.com
11.		Canon 1D Mark II	156 mm	158 mm	80 mm	1535 g	1200	Y	Jan 2004	4,499	ebay.com
12.		Canon 1Ds	156 mm	158 mm	80 mm	1265 g	600	Y	Sep 2002	8,999	ebay.com
13.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	8,295	ebay.com
14.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	7,995	ebay.com
15.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
16.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	5,195	ebay.com
17.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	6,950	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M-E Typ 240 was launched at a markedly lower price (by 38 percent) than the 1D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Leica M-E Typ 240 a full frame sensor. The sensor area in the M-E Typ 240 is 56 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 23.7MP, the M-E Typ 240 offers a higher resolution than the 1D (4.1MP), but the M-E Typ 240 has smaller individual pixels (pixel pitch of 6.01μm versus 11.56μm for the 1D). Yet, the M-E Typ 240 is a much more recent model (by 17 years and 9 months) than the 1D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Leica M-E Typ 240 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M-E Typ 240 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Canon 1D are 12.5 x 8.3 inches or 31.7 x 21.1 cm for good quality, 10 x 6.6 inches or 25.4 x 16.9 cm for very good quality, and 8.3 x 5.5 inches or 21.1 x 14.1 cm for excellent quality prints.

The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Leica M-E (Typ 240) are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-6400.

In terms of underlying technology, the 1D is build around a CCD sensor, while the M-E Typ 240 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 1D	APS-H	4.1	2496	1662	none	..	..	..	..
2.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
3.		Canon 1D X Mark III	Full Frame	20.0	5472	3648	4K/60p	24.2	14.5	3248	91
4.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
5.		Canon 1D C	Full Frame	17.9	5184	3456	4K/24p	24.3	13.0	2155	85
6.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
7.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
8.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
9.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
10.		Canon 1D Mark II N	APS-H	8.2	3504	2336	none	22.3	11.2	975	66
11.		Canon 1D Mark II	APS-H	8.2	3504	2336	none	22.3	11.1	1003	66
12.		Canon 1Ds	Full Frame	11.0	4064	2704	none	21.8	11.0	954	63
13.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
14.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
15.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
16.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
17.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The M-E Typ 240 indeed provides for movie recording, while the 1D does not. The highest resolution format that the M-E Typ 240 can use is 1080/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 1D and the M-E Typ 240 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the M-E Typ 240 has a higher magnification than the one of the 1D (0.68x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 1D and Leica M-E Typ 240 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 1D	optical	Y	2.0 / 120	fixed	n	1/16000s	8.0/s	n	n
2.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
3.		Canon 1D X Mark III	optical	Y	3.2 / 2100	fixed	Y	1/8000s	20.0/s	n	n
4.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
5.		Canon 1D C	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
6.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
7.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
8.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
9.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
10.		Canon 1D Mark II N	optical	Y	2.5 / 230	fixed	n	1/8000s	8.5/s	n	n
11.		Canon 1D Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	8.3/s	n	n
12.		Canon 1Ds	optical	Y	2.0 / 120	fixed	n	1/8000s	3.0/s	n	n
13.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
14.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
15.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
16.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
17.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 1D, but is missing on the M-E Typ 240 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 1D writes its imaging data to Compact Flash cards, while the M-E Typ 240 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Leica M-E (Typ 240) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 1D	Y	- / -	-	-	-	FW	-	-	-
2.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
3.		Canon 1D X Mark III	Y	mono / mono	Y	Y	mini	3.1	Y	-	Y
4.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 1D C	Y	mono / mono	Y	Y	mini	2.0	-	-	-
6.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
7.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
8.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
9.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
10.		Canon 1D Mark II N	Y	- / -	-	-	-	1.1	-	-	-
11.		Canon 1D Mark II	Y	- / -	-	-	-	1.1	-	-	-
12.		Canon 1Ds	Y	- / -	-	-	-	FW	-	-	-
13.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
14.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
15.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
16.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
17.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-

Studio photographers will appreciate that the Canon 1D (unlike the M-E Typ 240) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 1D and the M-E Typ 240 have been discontinued, but can regularly be found used on ebay. The 1D was replaced by the Canon 1D Mark II, while the M-E Typ 240 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.

Review summary

So what conclusions can be drawn? Is the Canon 1D better than the Leica M-E Typ 240 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS-1D:

• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2001).

Advantages of the Leica M-E (Typ 240):

• More detail: Has more megapixels (23.7 vs 4.1MP), which boosts linear resolution by 139%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can capture not only stills but also 1080/25p video.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.68x vs 0.55x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 120k dots).
• More compact: Is smaller (139x80mm vs 156x158mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 905g or 57 percent) and is thus easier to take along.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
• More modern: Reflects 17 years and 9 months of technical progress since the 1D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the M-E Typ 240 is the clear winner of the contest (14 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1D or the M-E Typ 240. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1D	..	..	..	+ +	..	..	Sep 2001	6,499	ebay.com
2.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	3,999	ebay.com
3.		Canon 1D X Mark III	..	+ +	5/5	..	4.5/5	4/5	Jan 2020	6,499	amazon.com
4.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	5,999	ebay.com
5.		Canon 1D C	..	..	..	..	..	..	Apr 2012	14,999	ebay.com
6.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	6,799	ebay.com
7.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	4,999	ebay.com
8.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	4,499	ebay.com
9.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	7,999	ebay.com
10.		Canon 1D Mark II N	..	..	..	..	..	..	Aug 2005	3,999	ebay.com
11.		Canon 1D Mark II	..	..	..	+ +	..	..	Jan 2004	4,499	ebay.com
12.		Canon 1Ds	..	..	..	+ +	..	..	Sep 2002	8,999	ebay.com
13.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	8,295	ebay.com
14.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	7,995	ebay.com
15.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
16.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	5,195	ebay.com
17.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	6,950	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
