Canon 1D vs 400D

The Canon EOS-1D and the Canon EOS 400D (labelled Canon XTi in some countries) are two digital cameras that were announced, respectively, in September 2001 and August 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D) and an APS-C (400D) sensor. The 1D has a resolution of 4.1 megapixels, whereas the 400D provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 1D		Canon 400D
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
4.1 MP – APS-H sensor		10.1 MP – APS-C sensor
no Video		no Video
ISO 200-1,600 (100 - 3,200)		ISO 100-1,600
Optical viewfinder		Optical viewfinder
2.0" LCD – 120k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
8 shutter flaps per second		3 shutter flaps per second
Weathersealed body		not weather sealed
500 shots per battery charge		370 shots per battery charge
156 x 158 x 80 mm, 1585 g		127 x 84 x 65 mm, 556 g

Check 1D offers at
ebay.com
Check 400D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D and the Canon EOS 400D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon 1D and the Canon 400D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 400D is considerably smaller (57 percent) than the Canon 1D. Moreover, the 400D is substantially lighter (65 percent) than the 1D. It is worth mentioning in this context that the 1D is splash and dust resistant, while the 400D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1D) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (400D). You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 1D gets 500 shots out of its Canon NP-E3 battery, while the 400D can take 370 images on a single charge of its Canon NB-2LH power pack. As can be seen in the images above, the 1D has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 400D, Canon provides the BG-E3 vertical grip as an optional accessory (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1D	156 mm	158 mm	80 mm	1585 g	500	Y	Sep 2001	6,499	ebay.com
2.		Canon 400D	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
3.		Canon 1D X Mark III	158 mm	168 mm	83 mm	1440 g	2850	Y	Jan 2020	6,499	amazon.com
4.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	5,999	ebay.com
5.		Canon 5D Mark IV	151 mm	116 mm	76 mm	890 g	900	Y	Aug 2016	3,499	amazon.com
6.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
7.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
8.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
9.		Canon 1D C	158 mm	164 mm	83 mm	1545 g	1120	Y	Apr 2012	14,999	ebay.com
10.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	6,799	ebay.com
11.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
12.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	7,999	ebay.com
13.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
14.		Canon 1D Mark II N	156 mm	158 mm	80 mm	1565 g	1200	Y	Aug 2005	3,999	ebay.com
15.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
16.		Canon 1D Mark II	156 mm	158 mm	80 mm	1535 g	1200	Y	Jan 2004	4,499	ebay.com
17.		Canon 1Ds	156 mm	158 mm	80 mm	1265 g	600	Y	Sep 2002	8,999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 400D was launched at a markedly lower price (by 88 percent) than the 1D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

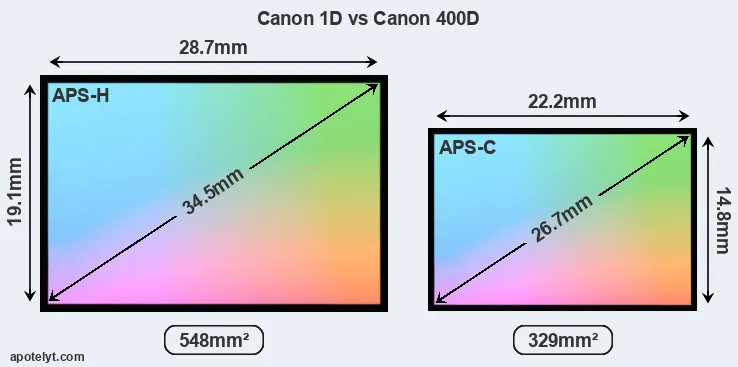

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Canon 400D an APS-C sensor. The sensor area in the 400D is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the 400D uses a more advanced image processing engine (DIGIC II) than the 1D (DIGIC), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the 400D offers a higher resolution of 10.1 megapixels, compared with 4.1 MP of the 1D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.71μm versus 11.56μm for the 1D). However, it should be noted that the 400D is much more recent (by 4 years and 10 months) than the 1D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon 400D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 400D for good quality output (200 dots per inch) amounts to 19.4 x 13 inches or 49.4 x 32.9 cm, for very good quality (250 dpi) 15.6 x 10.4 inches or 39.5 x 26.3 cm, and for excellent quality (300 dpi) 13 x 8.6 inches or 32.9 x 21.9 cm. The corresponding values for the Canon 1D are 12.5 x 8.3 inches or 31.7 x 21.1 cm for good quality, 10 x 6.6 inches or 25.4 x 16.9 cm for very good quality, and 8.3 x 5.5 inches or 21.1 x 14.1 cm for excellent quality prints.

The Canon EOS-1D has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Canon EOS 400D are ISO 100 to ISO 1600 (no boost).

In terms of underlying technology, the 1D is build around a CCD sensor, while the 400D uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 1D	APS-H	4.1	2496	1662	none	..	..	..	..
2.		Canon 400D	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
3.		Canon 1D X Mark III	Full Frame	20.0	5472	3648	4K/60p	24.2	14.5	3248	91
4.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
5.		Canon 5D Mark IV	Full Frame	30.1	6720	4480	4K/30p	24.8	13.6	2995	91
6.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
7.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
8.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
9.		Canon 1D C	Full Frame	17.9	5184	3456	4K/24p	24.3	13.0	2155	85
10.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
11.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
12.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
13.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
14.		Canon 1D Mark II N	APS-H	8.2	3504	2336	none	22.3	11.2	975	66
15.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
16.		Canon 1D Mark II	APS-H	8.2	3504	2336	none	22.3	11.1	1003	66
17.		Canon 1Ds	Full Frame	11.0	4064	2704	none	21.8	11.0	954	63
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 1D and the 400D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1D offers a wider field of view (100%) than the one in the 400D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1D has a higher magnification (0.55x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D and Canon 400D along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 1D	optical	Y	2.0 / 120	fixed	n	1/16000s	8.0/s	n	n
2.		Canon 400D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 1D X Mark III	optical	Y	3.2 / 2100	fixed	Y	1/8000s	20.0/s	n	n
4.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
5.		Canon 5D Mark IV	optical	Y	3.2 / 1620	fixed	Y	1/8000s	7.0/s	n	n
6.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
7.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon 1D C	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
10.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
11.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
12.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
13.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
14.		Canon 1D Mark II N	optical	Y	2.5 / 230	fixed	n	1/8000s	8.5/s	n	n
15.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon 1D Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	8.3/s	n	n
17.		Canon 1Ds	optical	Y	2.0 / 120	fixed	n	1/8000s	3.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 1D, but is missing on the 400D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Concerning the storage of imaging data, both the 1D and the 400D write their files to Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D and Canon EOS 400D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 1D	Y	- / -	-	-	-	FW	-	-	-
2.		Canon 400D	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 1D X Mark III	Y	mono / mono	Y	Y	mini	3.1	Y	-	Y
4.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 5D Mark IV	Y	mono / mono	Y	Y	mini	3.0	Y	Y	-
6.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
7.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon 1D C	Y	mono / mono	Y	Y	mini	2.0	-	-	-
10.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
11.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
12.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
13.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
14.		Canon 1D Mark II N	Y	- / -	-	-	-	1.1	-	-	-
15.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
16.		Canon 1D Mark II	Y	- / -	-	-	-	1.1	-	-	-
17.		Canon 1Ds	Y	- / -	-	-	-	FW	-	-	-

Studio photographers will appreciate that the Canon 1D (unlike the 400D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 1D and the 400D have been discontinued, but can regularly be found used on ebay. The 1D was replaced by the Canon 1D Mark II, while the 400D was followed by the Canon 450D. Further information on the features and operation of the 1D and 400D can be found, respectively, in the Canon 1D Manual (free pdf) or the online Canon 400D Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 1D and the Canon 400D? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS-1D:

• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.55x vs 0.49x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/16000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (500 versus 370) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2001).

Arguments in favor of the Canon EOS 400D:

• More detail: Has more megapixels (10.1 vs 4.1MP), which boosts linear resolution by 56%.
• Better jpgs: Has a more modern image processing engine (DIGIC II vs DIGIC).
• Larger screen: Has a bigger rear LCD (2.5" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (230k vs 120k dots).
• More compact: Is smaller (127x84mm vs 156x158mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 1029g or 65 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
• More modern: Reflects 4 years and 10 months of technical progress since the 1D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the 1D comes out slightly ahead of the 400D (10 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 1D and the Canon 400D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1D or the 400D. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1D	..	..	..	+ +	..	..	Sep 2001	6,499	ebay.com
2.		Canon 400D	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
3.		Canon 1D X Mark III	..	+ +	5/5	..	4.5/5	4/5	Jan 2020	6,499	amazon.com
4.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	5,999	ebay.com
5.		Canon 5D Mark IV	4.5/5	+ +	4/5	87/100	4.5/5	4.5/5	Aug 2016	3,499	amazon.com
6.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
7.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
8.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
9.		Canon 1D C	..	..	..	..	..	..	Apr 2012	14,999	ebay.com
10.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	6,799	ebay.com
11.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
12.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	7,999	ebay.com
13.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
14.		Canon 1D Mark II N	..	..	..	..	..	..	Aug 2005	3,999	ebay.com
15.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
16.		Canon 1D Mark II	..	..	..	+ +	..	..	Jan 2004	4,499	ebay.com
17.		Canon 1Ds	..	..	..	+ +	..	..	Sep 2002	8,999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
