Canon 1D versus Canon 4000D

The Canon EOS-1D and the Canon EOS 4000D are two digital cameras that were officially introduced, respectively, in September 2001 and February 2018. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D) and an APS-C (4000D) sensor. The 1D has a resolution of 4.1 megapixel, whereas the 4000D provides 17.9 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 1D vs Canon 4000D

The physical size and weight of the Canon 1D and the Canon 4000D are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 1D – represents 100 percent across all the size and weight measures).

Compare Canon 1D vs Canon 4000D

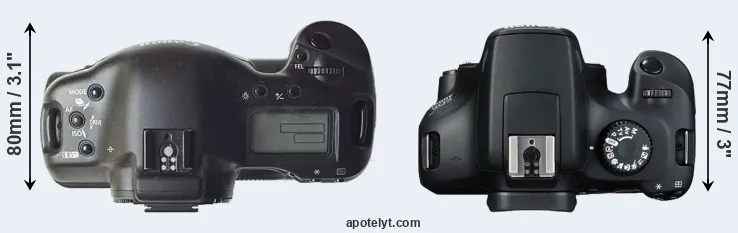

Compare 1D versus 4000D top
Compare 1D and 4000D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 4000D is considerably smaller (47 percent) than the Canon 1D. Moreover, the 4000D is substantially lighter (72 percent) than the 1D. It is worth mentioning in this context that the 1D is splash and dust resistant, while the 4000D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1D) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (4000D). You can find a comprehensive overview of suitable optics in the Canon EF Lens Catalog.

As can be seen in the images above, the 1D has a battery grip build in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D» 156 mm 158 mm 80 mm 1585 g 500 Y Sep 2001 6,499- i Canon 1D
Canon 4000D« 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 i i Canon 4000D
Canon 2000D« » 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 i i Canon 2000D
Canon 1D X Mark II« » 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« » 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1300D« » 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449- i Canon 1300D
Canon 5DS« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS R
Canon 1200D« » 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449- i Canon 1200D
Canon 100D« » 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549- i Canon 100D
Canon 1D C« » 158 mm 164 mm 83 mm 1545 g 1120 Y Apr 2012 14,999- i Canon 1D C
Canon 1D X« » 158 mm 168 mm 83 mm 1551 g 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 1100D« » 130 mm 100 mm 78 mm 495 g 700 n Feb 2011 449- i Canon 1100D
Canon 1Ds Mark III« » 150 mm 160 mm 80 mm 1385 g 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« » 156 mm 158 mm 80 mm 1565 g 1200 Y Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« » 156 mm 158 mm 80 mm 1535 g 1200 Y Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« » 156 mm 157.6 mm 80 mm 1265 g 600 Y Sep 2002 8,999- i Canon 1Ds

Any camera purchase will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 4000D was launched at a markedly lower price (by 94 percent) than the 1D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 1D vs Canon 4000D

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Canon 4000D an APS-C sensor. The sensor area in the 4000D is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the 4000D uses a more advanced image processing engine (DIGIC 4+) than the 1D (DIGIC), with benefits for noise reduction, color accuracy, and processing speed.

Canon 1D and Canon 4000D sensor measures

Despite having a smaller sensor, the 4000D offers a higher resolution of 17.9 megapixel, compared with 4.1 MP of the 1D. This megapixel advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 11.56μm for the 1D). However, it should be noted that the 4000D is much more recent (by 16 years and 5 months) than the 1D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

1D versus 4000D MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D» APS-H 4.1 2496 1662-----Canon 1D
Canon 4000D« APS-C 17.9 5184 34561080/30p21.911.469563Canon 4000D
Canon 2000D« » APS-C 24.0 6000 40001080/30p22.611.9100971Canon 2000D
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 1300D« » APS-C 17.9 5184 34561080/30p----Canon 1300D
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 5DS R« » Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R
Canon 1200D« » APS-C 17.9 5184 34561080/30p21.911.372463Canon 1200D
Canon 100D« » APS-C 17.9 5184 34561080/30p21.811.384363Canon 100D
Canon 1D C« » Full Frame 17.9 5184 34564K/24p----Canon 1D C
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 1100D« » APS-C 12.2 4272 2848720/30p21.911.075562Canon 1100D
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 1D Mark II N« » APS-H 8.2 3504 2336-22.311.297566Canon 1D Mark II N
Canon 1D Mark II« » APS-H 8.2 3504 2336-22.311.1100366Canon 1D Mark II
Canon 1Ds« » Full Frame 11.0 4064 2704-21.811.095463Canon 1Ds

Many modern cameras are not only capable of taking still images, but can also record movies. The 4000D indeed provides for movie recording, while the 1D does not. The highest resolution format that the 4000D can use is 1080/30p.



Feature comparison: Canon 1D vs Canon 4000D

Beyond body and sensor, cameras can and do differ across a range of features. The 1D and the 4000D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 1D and Canon 4000D along with similar information for a selection of comparators. If you need more detail on the specs, you can find comprehensive listings, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 1D»optical Y 2.0 120 fixed n 16000 8.0 n n Canon 1D
Canon 4000D«optical n 2.7 230 fixed n 4000 3.0 Y n Canon 4000D
Canon 2000D« »optical n 3.0 920 fixed n 4000 3.0 Y n Canon 2000D
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 1300D« »optical n 3.0 920 fixed n 4000 3.0 Y n Canon 1300D
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 5DS R« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS R
Canon 1200D« »optical n 3.0 460 fixed n 4000 3.0 Y n Canon 1200D
Canon 100D« »optical n 3.0 1040 fixed Y 4000 4.9 Y n Canon 100D
Canon 1D C« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D C
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 1100D« »optical n 2.7 230 fixed n 4000 3.0 Y n Canon 1100D
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 1D Mark II N« »optical Y 2.5 230 fixed n 8000 8.5 n n Canon 1D Mark II N
Canon 1D Mark II« »optical Y 2.0 230 fixed n 8000 8.3 n n Canon 1D Mark II
Canon 1Ds« »optical Y 2.0 120 fixed n 8000 3.0 n n Canon 1Ds

One feature that is present on the 1D, but is missing on the 4000D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 1D writes its imaging data to Compact Flash cards, while the 4000D uses SDXC cards. The 1D features dual card slots, which can be very useful in case a memory card fails. In contrast, the 4000D only has one slot.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D»Y-----FW---Canon 1D
Canon 4000D«Ymonomono--mini2.0YY-Canon 4000D
Canon 2000D« »Ymonomono--mini2.0YY-Canon 2000D
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon 1300D« »Ymonomono--mini2.0YY-Canon 1300D
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 5DS R« »YmonomonoY-mini3.0---Canon 5DS R
Canon 1200D« »Ymonomono--mini2.0---Canon 1200D
Canon 100D« »YmonomonoY-mini2.0---Canon 100D
Canon 1D C« »YmonomonoYYmini2.0---Canon 1D C
Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X
Canon 1100D« »Ystereomono--mini2.0---Canon 1100D
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 1D Mark II N« »Y-----1.1---Canon 1D Mark II N
Canon 1D Mark II« »Y-----1.1---Canon 1D Mark II
Canon 1Ds« »Y-----FW---Canon 1Ds

The 4000D is a recent model that features in the current product line-up of Canon. In contrast, the 1D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D was succeeded by the Canon 1D Mark II.

Review summary: Canon 1D vs Canon 4000D

So how do things add up? Which of the two cameras – the Canon 1D or the Canon 4000D – has the upper hand? Below is a summary of the relative strengths of each of the two contestants.


Advantages of the Canon EOS-1D:

  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (16000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been available for much longer (launched in September 2001).


Arguments in favor of the Canon EOS 4000D:

  • More detail: Has more megapixels (17.9 vs 4.1MP), which boosts linear resolution by 108%.
  • Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC).
  • Broader imaging potential: Can capture not only stills but also 1080/30p video.
  • Larger screen: Has a bigger rear LCD (2.7" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (230k vs 120k dots).
  • More compact: Is smaller (129x102mm vs 156x158mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 1149g or 72 percent) and is thus easier to take along.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier file upload: Has wifi build in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (94 percent cheaper at launch).
  • More modern: Reflects 16 years and 5 months of technical progress since the 1D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the 4000D is the clear winner of the contest (12 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

1D 07:12 4000D

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 1D or the 4000D handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D»-HiRec--- Sep 2001 6,499- i Canon 1D
Canon 4000D«rev-3.5/5-3.5/5 Feb 2018 399 i i Canon 4000D
Canon 2000D« »rev-3.5/5-3.5/5 Feb 2018 449 i i Canon 2000D
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1300D« »rev73/1004/53.5/54/5 Mar 2016 449- i Canon 1300D
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« »Rec83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R
Canon 1200D« »Rec-4/54/54.5/5 Feb 2014 449- i Canon 1200D
Canon 100D« »Rec78/1004/54/54/5 Mar 2013 549- i Canon 100D
Canon 1D C« »----- Apr 2012 14,999- i Canon 1D C
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 1100D« »80/10069/1004/54/54.5/5 Feb 2011 449- i Canon 1100D
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« »----- Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« »-HiRec-rev- Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« »-HiRec--- Sep 2002 8,999- i Canon 1Ds

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
