Canon 1D Mark IV vs Olympus E-M5
The Canon EOS-1D Mark IV and the Olympus OM-D E-M5 are two digital cameras that were announced, respectively, in October 2009 and February 2012. The 1D Mark IV is a DSLR, while the E-M5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-H (1D Mark IV) and a Four Thirds (E-M5) sensor. The Canon has a resolution of 16 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark IV and the Olympus OM-D E-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

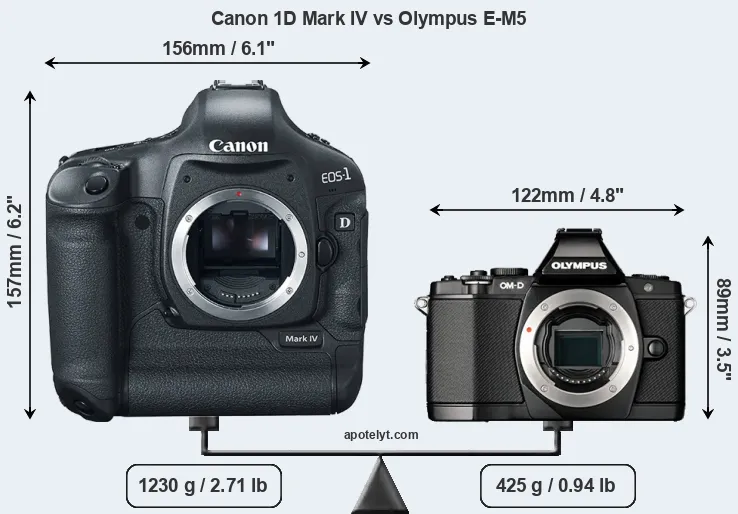

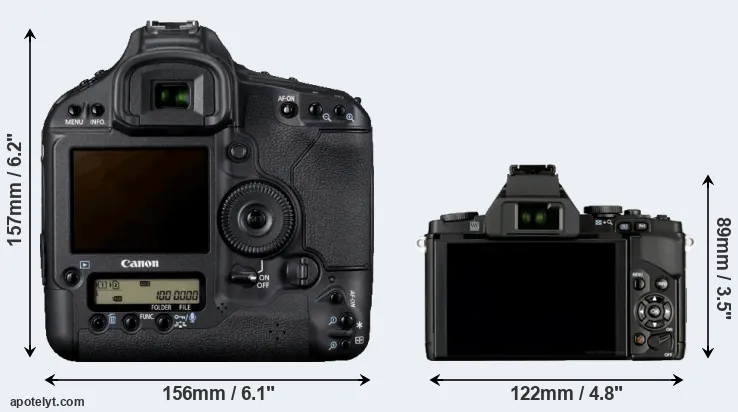

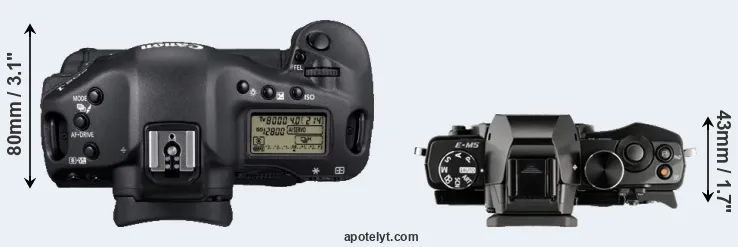

An illustration of the physical size and weight of the Canon 1D Mark IV and the Olympus E-M5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M5 can be obtained in two different colors (black, silver), while the 1D Mark IV is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 is considerably smaller (56 percent) than the Canon 1D Mark IV. Moreover, the E-M5 is substantially lighter (65 percent) than the 1D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1D Mark IV) and the Micro Four Thirds Lens Catalog (E-M5). Mirrorless cameras, such as the E-M5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 1D Mark IV gets 1500 shots out of its LP-E4 battery, while the E-M5 can take 360 images on a single charge of its BLN-1 power pack. As can be seen in the images above, the 1D Mark IV has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the E-M5, Olympus provides the HLD-6 vertical grip as an optional accessory (see here on eBay).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|Canon 1D Mark IV||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999|
|Olympus E-M5||4.8 in||3.5 in||1.7 in||15.0 oz||360||Y||Feb 2012||1,299|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Canon 1D X||6.2 in||6.6 in||3.3 in||54.7 oz||1120||Y||Oct 2011||6,799|
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Canon 7D||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Canon 1D Mark III||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499|
|Canon 1D Mark II||6.1 in||6.2 in||3.1 in||54.1 oz||1200||Y||Jan 2004||4,499|
|Canon 1Ds Mark II||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999|
|Nikon D4||6.3 in||6.2 in||3.6 in||47.3 oz||2600||Y||Jan 2012||5,999|
|Nikon D3S||6.3 in||6.2 in||3.5 in||43.7 oz||4200||Y||Oct 2009||5,199|
|Olympus PEN-F||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199|
|Olympus E-M5 II||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099|
|Olympus E-M1||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399|
|Olympus E-P5||4.8 in||2.7 in||1.5 in||14.8 oz||330||n||May 2013||999|
|Panasonic GX7||4.8 in||2.8 in||2.2 in||14.2 oz||350||n||Aug 2013||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-M5 was launched at a markedly lower price (by 74 percent) than the 1D Mark IV, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

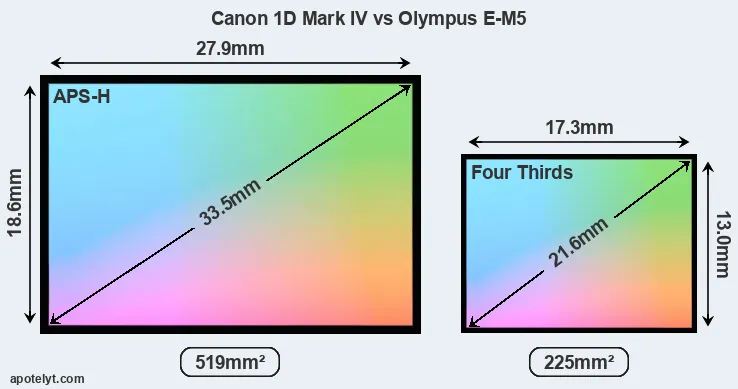

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D Mark IV features an APS-H sensor and the Olympus E-M5 a Four Thirds sensor. The sensor area in the E-M5 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 2.0. The sensor in the 1D Mark IV has a native 3:2 aspect ratio, while the one in the E-M5 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

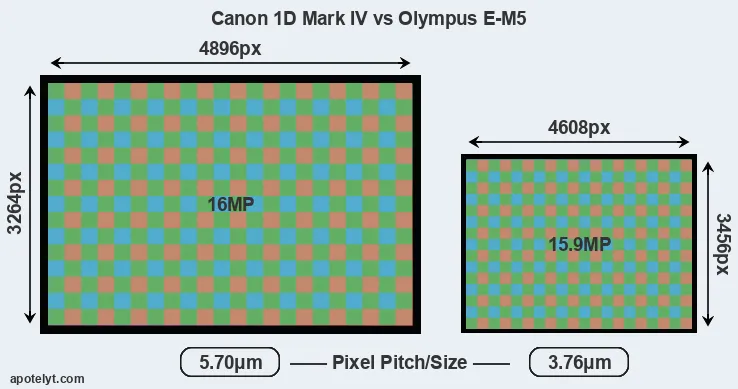

With 16MP, the 1D Mark IV offers a slightly higher resolution than the E-M5 (15.9MP), but the 1D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.70μm versus 3.76μm for the E-M5) due to its larger sensor. However, the E-M5 is a much more recent model (by 2 years and 3 months) than the 1D Mark IV, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The Canon EOS-1D Mark IV has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 50-102400. The corresponding ISO settings for the Olympus OM-D E-M5 are ISO 200 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-M5 provides a faster frame rate than the 1D Mark IV. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M5 has an electronic viewfinder (1440k dots), while the 1D Mark IV has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), as well as the same magnification (0.58x). The following table reports on some other key feature differences and similarities of the Canon 1D Mark IV, the Olympus E-M5, and comparable cameras.
|Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n|
|Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One feature that is present on the 1D Mark IV, but is missing on the E-M5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1D Mark IV writes its imaging data to Compact Flash or SDHC cards, while the E-M5 uses SDXC cards. The 1D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M5 only has one slot. The E-M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 1D Mark IV cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark IV and Olympus OM-D E-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 1D Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D Mark II||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
It is notable that the 1D Mark IV has a microphone port, which is missing on the E-M5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 1D Mark IV (unlike the E-M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 1D Mark IV and the E-M5 have been discontinued, but can regularly be found used on eBay. The E-M5 was replaced by the Olympus E-M5 II, while the 1D Mark IV does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is the Canon 1D Mark IV better than the Olympus E-M5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS-1D Mark IV:
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (920k vs 610k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1500 versus 360) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in October 2009).
Arguments in favor of the Olympus OM-D E-M5:
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More compact: Is smaller (122x89mm vs 156x157mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 805g or 65 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More modern: Reflects 2 years and 3 months of technical progress since the 1D Mark IV launch.
If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (11 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark IV and the Olympus E-M5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 1D Mark IV and the E-M5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D Mark IV||..||89/100||..||5/5||..||Oct 2009||4,999|
|Olympus E-M5||+ +||80/100||4.5/5||5/5||5/5||Feb 2012||1,299|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 1D X||..||..||4.5/5||4.5/5||4.5/5||Oct 2011||6,799|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 1D Mark III||..||..||..||o||..||Feb 2007||4,499|
|Canon 1D Mark II||..||+ +||..||o||..||Jan 2004||4,499|
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Nikon D4||..||..||4.5/5||..||4.5/5||Jan 2012||5,999|
|Nikon D3S||..||89/100||4.5/5||5/5||5/5||Oct 2009||5,199|
|Olympus PEN-F||..||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Olympus E-P5||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999|
|Panasonic GX7||+||79/100||5/5||4.5/5||5/5||Aug 2013||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 1D Mark IV vs Olympus E-M5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark IV||Olympus E-M5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||October 2009||February 2012|
|Launch Price||USD 4,999||USD 1,299|
|Sensor Specs||Canon 1D Mark IV||Olympus E-M5|
|Sensor Format||APS-H Sensor||Four Thirds Sensor|
|Sensor Size||27.9 x 18.6 mm||17.3 x 13.0 mm|
|Sensor Area||518.94 mm2||224.9 mm2|
|Sensor Diagonal||33.5 mm||21.6 mm|
|Sensor Resolution||16 Megapixels||15.9 Megapixels|
|Image Resolution||4896 x 3264 pixels||4608 x 3456 pixels|
|Pixel Pitch||5.70 μm||3.76 μm|
|Pixel Density||3.08 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||50 - 102,400 ISO||no Enhancement|
|Image Processor||DIGIC IV||TruePic VI|
|DXO Sensor Quality (score)||74||71|
|DXO Color Depth (bits)||22.8||22.8|
|DXO Dynamic Range (EV)||12.0||12.3|
|DXO Low Light (ISO)||1320||826|
|Screen Specs||Canon 1D Mark IV||Olympus E-M5|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||1440k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||610k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 1D Mark IV||Olympus E-M5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||10 shutter flaps/s||9 shutter flaps/s|
|Shutter Life Expectancy||300 000 actuations||100 000 actuations|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDHC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 1D Mark IV||Olympus E-M5|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D Mark IV||Olympus E-M5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1500 shots per charge||360 shots per charge|
156 x 157 x 80 mm
(6.1 x 6.2 x 3.1 in)
122 x 89 x 43 mm
(4.8 x 3.5 x 1.7 in)
|Camera Weight||1230 g (43.4 oz)||425 g (15.0 oz)|
