Canon 1D Mark III versus Canon 5DS R

The Canon EOS-1D Mark III and the Canon EOS 5DS R are two professional cameras that were announced, respectively, in February 2007 and February 2015. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark III) and a full frame (5DS R) sensor. The 1D Mark III has a resolution of 10.1 megapixel, whereas the 5DS R provides 50.3 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 1D Mark III vs Canon 5DS R

An illustration of the physical size and weight of the Canon 1D Mark III and the Canon 5DS R is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 1D Mark III – represents 100 percent across all the size and weight measures).

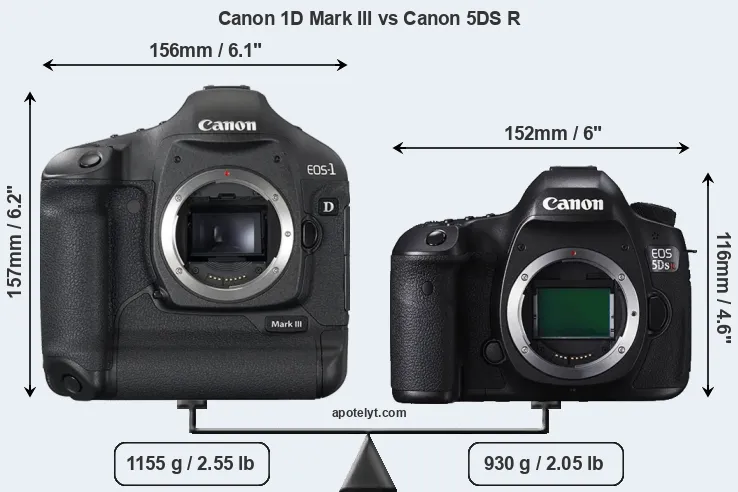

Compare Canon 1D Mark III vs Canon 5DS R

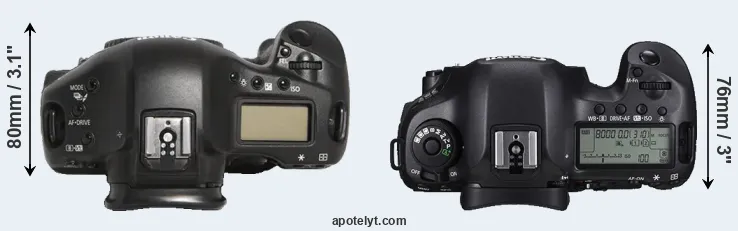

Compare 1D Mark III versus 5DS R top

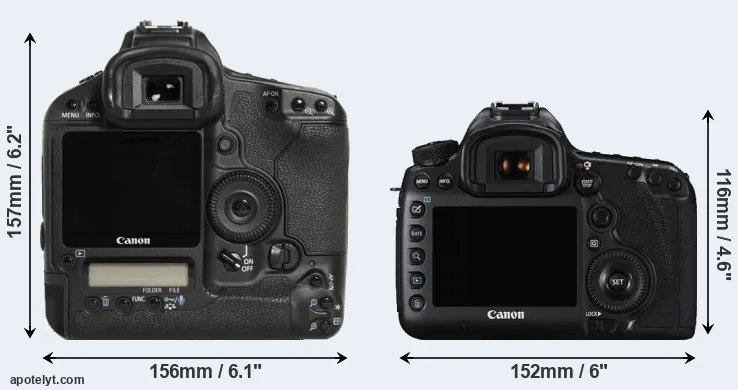

Compare 1D Mark III and 5DS R rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5DS R is notably smaller (28 percent) than the Canon 1D Mark III. Moreover, the 5DS R is markedly lighter (19 percent) than the 1D Mark III. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5DS R) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D Mark III). You can find a comprehensive overview of suitable optics in the Canon EF Lens Catalog.

Concerning battery life, the 1D Mark III gets 2200 shots out of its LP-E4 battery, while the 5DS R can take 700 images on a single charge of its LP-E6 power pack. As can be seen in the images above, the 1D Mark III has a battery grip build in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5DS R, Canon provides the BG-E11 vertical grip as an optional accessory (see here on eBay).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D Mark III» 156 mm 156.6 mm 80 mm 1155 g 2200 Y Feb 2007 4,499- i Canon 1D Mark III
Canon 5DS R« 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS R
Canon 5D Mark IV« » 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 5DS« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 5D Mark III« » 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499- i Canon 5D Mark III
Canon 1D Mark IV« » 156 mm 157 mm 80 mm 1230 g 1500 Y Oct 2009 4,999- i Canon 1D Mark IV
Canon 5D Mark II« » 152 mm 114 mm 75 mm 850 g 850 Y Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« » 150 mm 160 mm 80 mm 1385 g 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 5D« » 152 mm 113 mm 75 mm 895 g 400 Y Aug 2005 3,299- i Canon 5D
Canon 1D Mark II« » 156 mm 158 mm 80 mm 1535 g 1200 Y Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« » 156 mm 157.6 mm 80 mm 1265 g 600 Y Sep 2002 8,999- i Canon 1Ds
Nikon D3S« » 160 mm 157 mm 88 mm 1240 g 4200 Y Oct 2009 5,199- i Nikon D3S
Nikon D3« » 160 mm 157 mm 88 mm 1300 g 4300 Y Aug 2007 4,999- i Nikon D3
Nikon D2Xs« » 157.5 mm 149.5 mm 86 mm 1252 g 3800 Y Jun 2006 4,699- i Nikon D2Xs

The camera’s price is obviously a critical decision-making factor. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 5DS R was launched at a somewhat lower price (by 18 percent) than the 1D Mark III, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 1D Mark III vs Canon 5DS R

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D Mark III features an APS-H sensor and the Canon 5DS R a full frame sensor. The sensor area in the 5DS R is 65 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

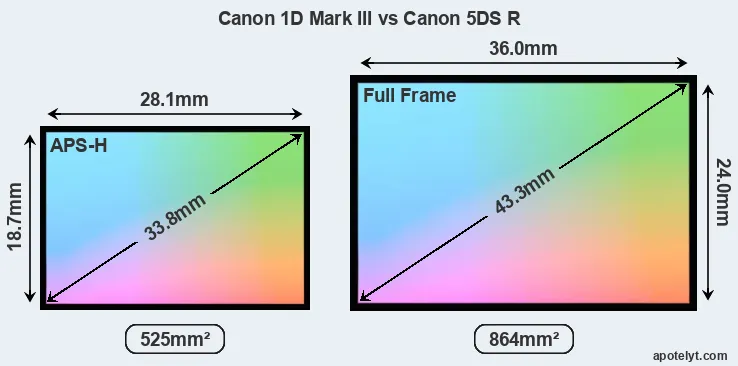

Canon 1D Mark III and Canon 5DS R sensor measures

With 50.3MP, the 5DS R offers a higher resolution than the 1D Mark III (10.1MP), but the 5DS R has smaller individual pixels (pixel pitch of 4.14μm versus 7.21μm for the 1D Mark III). Yet, the 5DS R is a much more recent model (by 7 years and 11 months) than the 1D Mark III, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 5DS R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

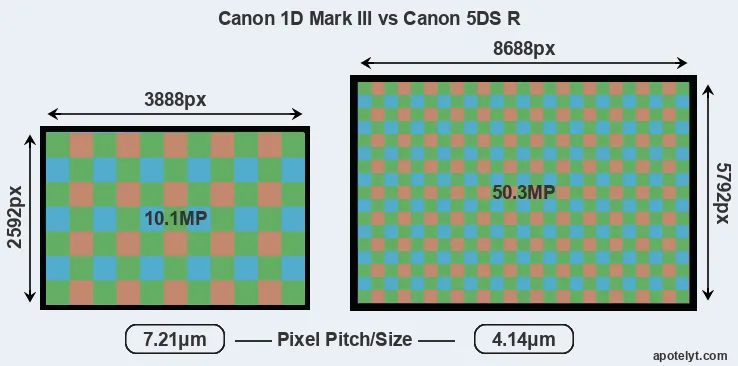

1D Mark III versus 5DS R MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 5DS R offers substantially better image quality than the 1D Mark III (overall score 15 points higher). The advantage is based on 1.9 bits higher color depth, 0.7 EV in additional dynamic range, and 1.1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D Mark III» APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III
Canon 5DS R« Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 5D Mark III« » Full Frame 22.1 5760 38401080/30p24.011.7229381Canon 5D Mark III
Canon 1D Mark IV« » APS-H 16.0 4896 32641080/30p22.812.0132074Canon 1D Mark IV
Canon 5D Mark II« » Full Frame 21.0 5616 37441080/30p23.711.9181579Canon 5D Mark II
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 5D« » Full Frame 12.7 4368 2912-22.911.1136871Canon 5D
Canon 1D Mark II« » APS-H 8.2 3504 2336-22.311.1100366Canon 1D Mark II
Canon 1Ds« » Full Frame 11.0 4064 2704-21.811.095463Canon 1Ds
Nikon D3S« » Full Frame 12.1 4256 2832720/24p23.512.0325382Nikon D3S
Nikon D3« » Full Frame 12.1 4256 2832-23.512.2229081Nikon D3
Nikon D2Xs« » APS-C 12.2 4288 2848-22.210.948959Nikon D2Xs

Many modern cameras cannot only take still pictures, but also record videos. The 5DS R indeed provides for movie recording, while the 1D Mark III does not. The highest resolution format that the 5DS R can use is 1080/60p.



Feature comparison: Canon 1D Mark III vs Canon 5DS R

Beyond body and sensor, cameras can and do differ across a range of features. The 1D Mark III and the 5DS R are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Canon 1D Mark III and Canon 5DS R in connection with corresponding information for a sample of similar cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 1D Mark III»optical Y 3.0 230 fixed n 8000 10.0 n n Canon 1D Mark III
Canon 5DS R«optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS R
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 5D Mark III« »optical Y 3.2 1040 fixed n 8000 6.0 n n Canon 5D Mark III
Canon 1D Mark IV« »optical Y 3.0 920 fixed n 8000 10.0 n n Canon 1D Mark IV
Canon 5D Mark II« »optical Y 3.0 920 fixed n 8000 3.9 n n Canon 5D Mark II
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 5D« »optical Y 2.5 230 fixed n 8000 3.0 n n Canon 5D
Canon 1D Mark II« »optical Y 2.0 230 fixed n 8000 8.3 n n Canon 1D Mark II
Canon 1Ds« »optical Y 2.0 120 fixed n 8000 3.0 n n Canon 1Ds
Nikon D3S« »optical Y 3.0 921 fixed n 8000 11.0 n n Nikon D3S
Nikon D3« »optical Y 3.0 922 fixed n 8000 11.0 n n Nikon D3
Nikon D2Xs« »optical Y 2.5 230 fixed n 8000 5.0 n n Nikon D2Xs

The 1D Mark III writes its imaging data to Compact Flash or SDHC cards, while the 5DS R uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D Mark III»Y-----2.0---Canon 1D Mark III
Canon 5DS R«YmonomonoY-mini3.0---Canon 5DS R
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 5D Mark III« »YmonomonoYYmini2.0---Canon 5D Mark III
Canon 1D Mark IV« »Ystereo-Y-mini2.0---Canon 1D Mark IV
Canon 5D Mark II« »YmonomonoY-mini2.0---Canon 5D Mark II
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 5D« »Y-----2.0---Canon 5D
Canon 1D Mark II« »Y-----1.1---Canon 1D Mark II
Canon 1Ds« »Y-----FW---Canon 1Ds
Nikon D3S« »Ystereo---mini2.0---Nikon D3S
Nikon D3« »Y----mini2.0---Nikon D3
Nikon D2Xs« »Y-----2.0---Nikon D2Xs

The 5DS R is a recent model that features in the current product line-up of Canon. In contrast, the 1D Mark III has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D Mark III was succeeded by the Canon 1D Mark IV.

Review summary: Canon 1D Mark III vs Canon 5DS R

So what conclusions can be drawn? Is the Canon 1D Mark III better than the Canon 5DS R or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Advantages of the Canon EOS-1D Mark III:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Faster burst: Shoots at higher frequency (10 vs 5 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (2200 versus 700) on a single battery charge.
  • More heavily discounted: Has been available for much longer (launched in February 2007).


Reasons to prefer the Canon EOS 5DS R:

  • More detail: Has more megapixels (50.3 vs 10.1MP), which boosts linear resolution by 123%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (15 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (1.9 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (0.7 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.1 stops ISO advantage).
  • Broader imaging potential: Can capture not only stills but also 1080/60p video.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
  • More compact: Is smaller (152x116mm vs 156x156.6mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 225g or 19 percent) and is thus easier to take along.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • More affordable: Was released into a lower priced segment (18 percent cheaper at launch).
  • More modern: Reflects 7 years and 11 months of technical progress since the 1D Mark III launch.

If the count of relative strengths (bullet points above) is taken as a measure, the 5DS R is the clear winner of the contest (14 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

1D Mark III 05:14 5DS R

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the 1D Mark III or the 5DS R. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D Mark III»---rev- Feb 2007 4,499- i Canon 1D Mark III
Canon 5DS R«Rec83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 5D Mark III« »HiRec82/1004.5/55/54.5/5 Mar 2012 3,499- i Canon 5D Mark III
Canon 1D Mark IV« »-89/100-5/5- Oct 2009 4,999- i Canon 1D Mark IV
Canon 5D Mark II« »91/10079/1004/55/5- Sep 2008 3,499- i Canon 5D Mark II
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 5D« »88/100HiRecrevrev- Aug 2005 3,299- i Canon 5D
Canon 1D Mark II« »-HiRec-rev- Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« »-HiRec--- Sep 2002 8,999- i Canon 1Ds
Nikon D3S« »-89/1004.5/55/55/5 Oct 2009 5,199- i Nikon D3S
Nikon D3« »-HiRec5/5rev4.5/5 Aug 2007 4,999- i Nikon D3
Nikon D2Xs« »---rev- Jun 2006 4,699- i Nikon D2Xs

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
