Canon 1D Mark II vs 7D Mark II
The Canon EOS-1D Mark II and the Canon EOS 7D Mark II are two digital cameras that were revealed to the public, respectively, in January 2004 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark II) and an APS-C (7D Mark II) sensor. The 1D Mark II has a resolution of 8.2 megapixels, whereas the 7D Mark II provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D Mark II||Canon 7D II|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Canon EF mount lenses|
|8.2 MP, APS-H Sensor||20 MP, APS-C Sensor|
|no Video||1080/60p Video|
|ISO 100-1,600 (50 - 3,200)||ISO 100-16,000 (100 - 51,200)|
|Optical viewfinder||Optical viewfinder|
|2.0 LCD, 230k dots||3.0 LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|8.3 shutter flaps per second||10 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|1200 shots per battery charge||670 shots per battery charge|
|156 x 158 x 80 mm, 1535 g||149 x 112 x 78 mm, 910 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II and the Canon EOS 7D Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon 1D Mark II and the Canon 7D II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 7D II is considerably smaller (32 percent) than the Canon 1D Mark II. Moreover, the 7D Mark II is substantially lighter (41 percent) than the 1D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

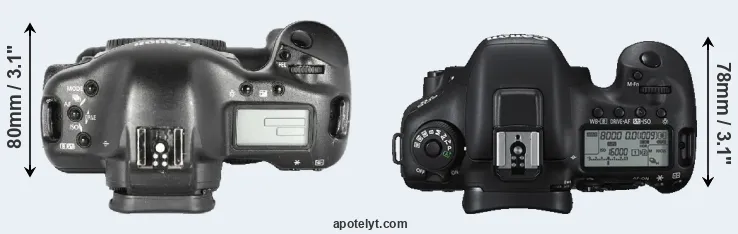

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1D Mark II) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (7D Mark II). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D Mark II gets 1200 shots out of its NP-E3 battery, while the 7D Mark II can take 670 images on a single charge of its LP-E6N power pack. As can be seen in the images above, the 1D Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 7D Mark II, Canon provides the BG-E16 vertical grip as an optional accessory (see here on eBay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 1D Mark II||6.1 in||6.2 in||3.1 in||54.1 oz||1200||Y||Jan 2004||4,499|
|Canon 7D II||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon 5DS R||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Canon T6i||5.2 in||4.0 in||3.1 in||19.6 oz||440||n||Feb 2015||749|
|Canon 70D||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199|
|Canon SL1||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549|
|Canon T5i||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649|
|Canon 1D Mark IV||6.1 in||6.2 in||3.1 in||43.4 oz||1500||Y||Oct 2009||4,999|
|Canon 7D||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699|
|Canon 1D Mark III||6.1 in||6.2 in||3.1 in||40.7 oz||2200||Y||Feb 2007||4,499|
|Canon 1Ds Mark III||5.9 in||6.3 in||3.1 in||48.9 oz||1800||Y||Aug 2007||7,999|
|Canon 1D Mark II N||6.1 in||6.2 in||3.1 in||55.2 oz||1200||Y||Aug 2005||3,999|
|Canon 5D||6.0 in||4.4 in||3.0 in||31.6 oz||400||Y||Aug 2005||3,299|
|Canon 1Ds Mark II||6.1 in||6.2 in||3.1 in||42.9 oz||1200||Y||Sep 2004||7,999|
|Canon 1Ds||6.1 in||6.2 in||3.1 in||44.6 oz||600||Y||Sep 2002||8,999|
|Canon 1D||6.1 in||6.2 in||3.1 in||55.9 oz||500||Y||Sep 2001||6,499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 7D Mark II was launched at a markedly lower price (by 60 percent) than the 1D Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

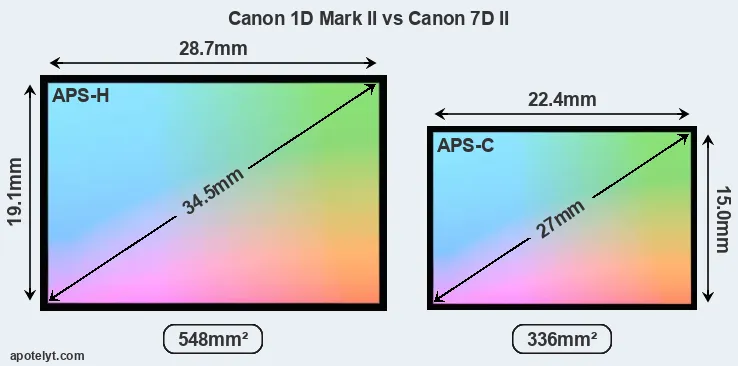

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D Mark II features an APS-H sensor and the Canon 7D II an APS-C sensor. The sensor area in the 7D Mark II is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
Despite having a smaller sensor, the 7D Mark II offers a higher resolution of 20 megapixels, compared with 8.2 MP of the 1D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.10μm versus 8.17μm for the 1D Mark II). However, it should be noted that the 7D Mark II is much more recent (by 10 years and 7 months) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon 7D II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 7D Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon 1D Mark II are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The 7D Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS 7D Mark II are ISO 100 to ISO 16000, with the possibility to increase the ISO range to 100-51200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the 7D Mark II has a markedly higher DXO score than the 1D Mark II (overall score 4 points higher), which will translate into better image quality. The advantage is based on 0.099999999999998 bits higher color depth, 0.7 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
Many modern cameras cannot only take still pictures, but also record videos. The 7D Mark II indeed provides for movie recording, while the 1D Mark II does not. The highest resolution format that the 7D Mark II can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 1D Mark II and the 7D Mark II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 7D Mark II has a higher magnification than the one of the 1D Mark II (0.63x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D Mark II, the Canon 7D II, and comparable cameras.
|Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The 7D Mark II has one, while the 1D Mark II does not. While the built-in flash of the 7D Mark II is not very powerful, it can at times be useful as a fill-in light.
The Canon 7D II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1D Mark II writes its imaging data to Compact Flash or SD cards, while the 7D Mark II uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The 7D Mark II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 1D Mark II cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II and Canon EOS 7D Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D Mark II||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|Canon 1D Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1Ds Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the 7D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 7D Mark II is a recent model that features in the current product line-up of Canon. In contrast, the 1D Mark II has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D Mark II was succeeded by the Canon 1D Mark II N. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Which of the two cameras – the Canon 1D Mark II or the Canon 7D II – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS-1D Mark II:
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 670) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in January 2004).
Arguments in favor of the Canon EOS 7D Mark II:
- More detail: Has more megapixels (20 vs 8.2MP), which boosts linear resolution by 56%.
- Better image quality: Scores markedly higher (4 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (0.7 EV of extra DR).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.55x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Faster burst: Shoots at higher frequency (10 vs 8.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (149x112mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 625g or 41 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 1.1).
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (60 percent cheaper at launch).
- More modern: Reflects 10 years and 7 months of technical progress since the 1D Mark II launch.
If the count of individual advantages (bullet points above) is taken as a guide, the 7D Mark II is the clear winner of the contest (18 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark II and the Canon 7D II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 1D Mark II or the 7D Mark II perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D Mark II||..||+ +||..||o||..||Jan 2004||4,499|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon T6i||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon SL1||+||78/100||4/5||4/5||4/5||Mar 2013||549|
|Canon T5i||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon 1D Mark IV||..||89/100||..||5/5||..||Oct 2009||4,999|
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Canon 1D Mark III||..||..||..||o||..||Feb 2007||4,499|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Canon 1Ds||..||+ +||..||..||..||Sep 2002||8,999|
|Canon 1D||..||+ +||..||..||..||Sep 2001||6,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark II N vs Canon 20D
- Canon 1D Mark II N vs Kodak AZ901
- Canon 1D Mark II N vs Leica D-LUX Typ 109
- Canon 1D Mark II N vs Leica M9
- Canon 1D Mark II N vs Leica V-LUX 4
- Canon 1D Mark II N vs Leica X Vario
- Canon 1D Mark II N vs Nikon D800
- Canon 1D Mark II vs Fujifilm X-T30
- Canon 1D Mark II vs Leica V-LUX 5
- Canon 1D Mark II vs Sony RX10 II
- Canon 1D Mark II vs YI M1
- Canon 5D Mark II vs Canon 7D II
Specifications: Canon 1D Mark II vs Canon 7D II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark II||Canon 7D II|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||January 2004||September 2014|
|Launch Price||USD 4,499||USD 1,799|
|Sensor Specs||Canon 1D Mark II||Canon 7D II|
|Sensor Format||APS-H Sensor||APS-C Sensor|
|Sensor Size||28.7 x 19.1 mm||22.4 x 15.0 mm|
|Sensor Area||548.17 mm2||336 mm2|
|Sensor Diagonal||34.5 mm||27 mm|
|Sensor Resolution||8.2 Megapixels||20 Megapixels|
|Image Resolution||3504 x 2336 pixels||5472 x 3648 pixels|
|Pixel Pitch||8.17 μm||4.10 μm|
|Pixel Density||1.49 MP/cm2||5.94 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||100 - 16,000 ISO|
|ISO Boost||50 - 3,200 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC II||DIGIC 6 (Dual)|
|DXO Sensor Quality (score)||66||70|
|DXO Color Depth (bits)||22.3||22.4|
|DXO Dynamic Range (EV)||11.1||11.8|
|DXO Low Light (ISO)||1003||1082|
|Screen Specs||Canon 1D Mark II||Canon 7D II|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.0inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D Mark II||Canon 7D II|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8.3 shutter flaps/s||10 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SD cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 1D Mark II||Canon 7D II|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 1.1||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 1D Mark II||Canon 7D II|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1200 shots per charge||670 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
149 x 112 x 78 mm
(5.9 x 4.4 x 3.1 in)
|Camera Weight||1535 g (54.1 oz)||910 g (32.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
