Canon 1D Mark II vs 5D Mark IV
The Canon EOS-1D Mark II and the Canon EOS 5D Mark IV are two professional cameras that were announced, respectively, in January 2004 and August 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark II) and a full frame (5D Mark IV) sensor. The 1D Mark II has a resolution of 8.2 megapixels, whereas the 5D Mark IV provides 30.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II and the Canon EOS 5D Mark IV? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

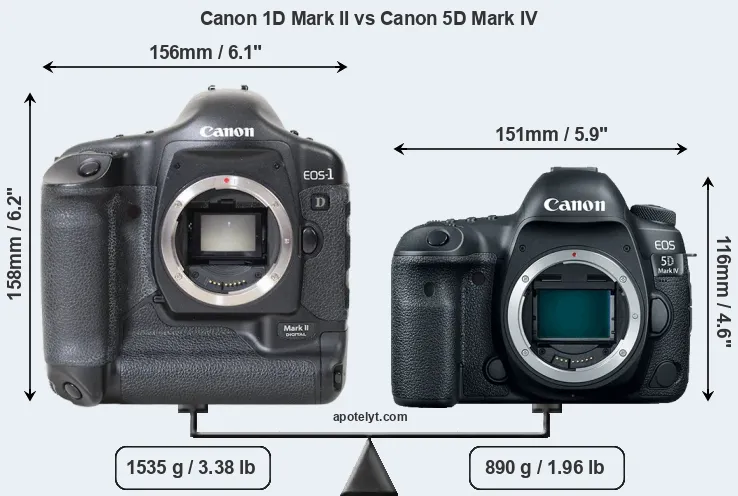

The physical size and weight of the Canon 1D Mark II and the Canon 5D Mark IV are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5D Mark IV is notably smaller (29 percent) than the Canon 1D Mark II. Moreover, the 5D Mark IV is substantially lighter (42 percent) than the 1D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5D Mark IV) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D Mark II). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D Mark II gets 1200 shots out of its NP-E3 battery, while the 5D Mark IV can take 900 images on a single charge of its LP-E6N power pack. As can be seen in the images above, the 1D Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5D Mark IV, Canon provides the BG-E20 vertical grip as an optional accessory (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 1D Mark II||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499|
|2.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|5.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|8.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|9.||Canon 1D Mark III||156 mm||157 mm||80 mm||1155 g||2200||Y||Feb 2007||4,499|
|10.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|11.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|12.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|13.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
|14.||Canon 1Ds||156 mm||158 mm||80 mm||1265 g||600||Y||Sep 2002||8,999|
|15.||Canon 1D||156 mm||158 mm||80 mm||1585 g||500||Y||Sep 2001||6,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 5D Mark IV was launched at a somewhat lower price (by 22 percent) than the 1D Mark II, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D Mark II features an APS-H sensor and the Canon 5D Mark IV a full frame sensor. The sensor area in the 5D Mark IV is 58 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the 5D Mark IV uses a more advanced image processing engine (DIGIC 6+) than the 1D Mark II (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.
With 30.1MP, the 5D Mark IV offers a higher resolution than the 1D Mark II (8.2MP), but the 5D Mark IV has smaller individual pixels (pixel pitch of 5.36μm versus 8.17μm for the 1D Mark II). Yet, the 5D Mark IV is a much more recent model (by 12 years and 6 months) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Canon 1D Mark II are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS-1D Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS 5D Mark IV are ISO 100 to ISO 32000, with the possibility to increase the ISO range to 50-102400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 5D Mark IV offers substantially better image quality than the 1D Mark II (overall score 25 points higher). The advantage is based on 2.5 bits higher color depth, 2.5 EV in additional dynamic range, and 1.6 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|2.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|9.||Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|10.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|11.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|12.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|13.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
|14.||Canon 1Ds||Full Frame||11.0||4064||2704||none||21.8||11.0||954||63|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 5D Mark IV indeed provides for movie recording, while the 1D Mark II does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 1D Mark II and the 5D Mark IV are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5D Mark IV has a higher magnification than the one of the 1D Mark II (0.71x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D Mark II, the Canon 5D Mark IV, and comparable cameras.
|1.||Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n|
|2.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|3.||Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|6.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|8.||Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|9.||Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n|
|10.||Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|11.||Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
|13.||Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 5D Mark IV has a touchscreen, while the 1D Mark II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1D Mark II writes its imaging data to Compact Flash or SD cards, while the 5D Mark IV uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The 5D Mark IV supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 1D Mark II cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II and Canon EOS 5D Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon 1D Mark II||Y||-||-||-||-||-||1.1||-||-||-|
|2.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|3.||Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|6.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|9.||Canon 1D Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|10.||Canon 1Ds Mark III||Y||mono||-||-||-||-||2.0||-||-||-|
|11.||Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
|13.||Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
It is notable that the 5D Mark IV offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 1D Mark II does not provide wifi capability.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the 1D Mark II has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D Mark II was succeeded by the Canon 1D Mark II N. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Is there a clear favorite between the Canon 1D Mark II and the Canon 5D Mark IV? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS-1D Mark II:
- Faster burst: Shoots at higher frequency (8.3 vs 7 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 900) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in January 2004).
Arguments in favor of the Canon EOS 5D Mark IV:
- More detail: Has more megapixels (30.1 vs 8.2MP), which boosts linear resolution by 92%.
- Better image quality: Scores substantially higher (25 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.5 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.6 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 6+ vs DIGIC II).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.55x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (151x116mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 645g or 42 percent) and is thus easier to take along.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 1.1).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was released into a lower priced segment (22 percent cheaper at launch).
- More modern: Reflects 12 years and 6 months of technical progress since the 1D Mark II launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 5D Mark IV is the clear winner of the contest (22 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark II and the Canon 5D Mark IV place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1D Mark II or the 5D Mark IV perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D Mark II||..||..||+ +||..||..||Jan 2004||4,499|
|2.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|3.||Canon 6D Mark II||4/5||+||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|5.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|7.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|8.||Canon 1D Mark IV||5/5||..||89/100||..||..||Oct 2009||4,999|
|9.||Canon 1D Mark III||..||..||..||..||..||Feb 2007||4,499|
|10.||Canon 1Ds Mark III||..||..||+ +||4.5/5||..||Aug 2007||7,999|
|11.||Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|12.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|13.||Canon 1Ds Mark II||..||..||+ +||..||..||Sep 2004||7,999|
|14.||Canon 1Ds||..||..||+ +||..||..||Sep 2002||8,999|
|15.||Canon 1D||..||..||+ +||..||..||Sep 2001||6,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 1D Mark II vs Canon 5D Mark IV
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark II||Canon 5D Mark IV|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||January 2004||August 2016|
|Launch Price||USD 4,499||USD 3,499|
|Sensor Specs||Canon 1D Mark II||Canon 5D Mark IV|
|Sensor Format||APS-H Sensor||Full Frame Sensor|
|Sensor Size||28.7 x 19.1 mm||36.0 x 24.0 mm|
|Sensor Area||548.17 mm2||864 mm2|
|Sensor Diagonal||34.5 mm||43.3 mm|
|Sensor Resolution||8.2 Megapixels||30.1 Megapixels|
|Image Resolution||3504 x 2336 pixels||6720 x 4480 pixels|
|Pixel Pitch||8.17 μm||5.36 μm|
|Pixel Density||1.49 MP/cm2||3.48 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 32,000 ISO|
|ISO Boost||50 - 3,200 ISO||50 - 102,400 ISO|
|Image Processor||DIGIC II||DIGIC 6+|
|DXO Sensor Quality (score)||66||91|
|DXO Color Depth (bits)||22.3||24.8|
|DXO Dynamic Range (EV)||11.1||13.6|
|DXO Low Light (ISO)||1003||2995|
|Screen Specs||Canon 1D Mark II||Canon 5D Mark IV|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.0inch||3.2inch|
|LCD Resolution||230k dots||1620k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 1D Mark II||Canon 5D Mark IV|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8.3 shutter flaps/s||7 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SD cards||CF or SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 1D Mark II||Canon 5D Mark IV|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 1.1||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 1D Mark II||Canon 5D Mark IV|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1200 shots per charge||900 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
151 x 116 x 76 mm
(5.9 x 4.6 x 3.0 in)
|Camera Weight||1535 g (54.1 oz)||890 g (31.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
