Canon 1D Mark II N vs 5DS
The Canon EOS-1D Mark II N and the Canon EOS 5DS are two professional cameras that were revealed to the public, respectively, in August 2005 and February 2015. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark II N) and a full frame (5DS) sensor. The 1D Mark II N has a resolution of 8.2 megapixels, whereas the 5DS provides 50.3 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II N and the Canon EOS 5DS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

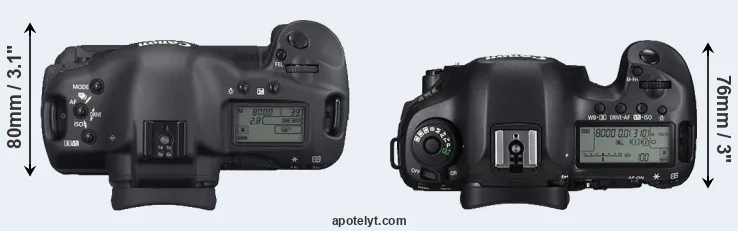

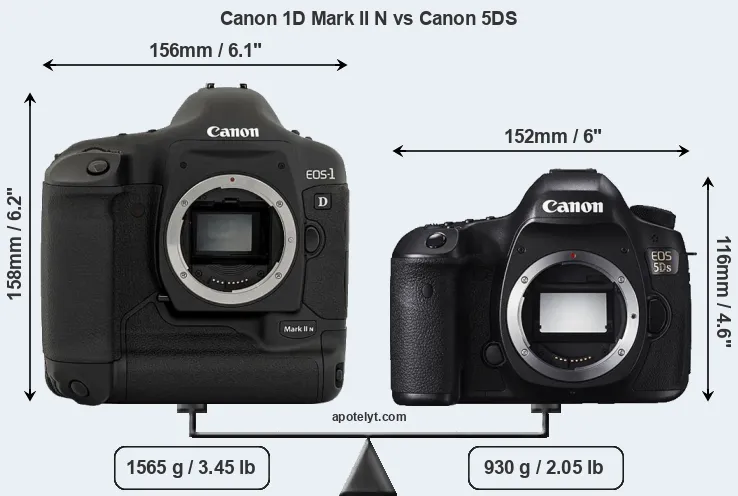

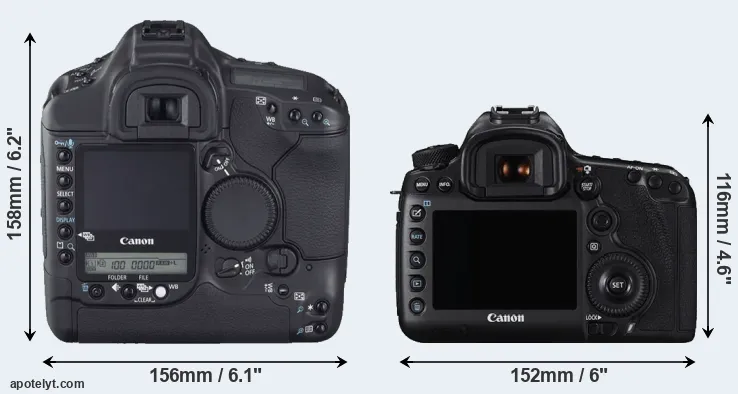

An illustration of the physical size and weight of the Canon 1D Mark II N and the Canon 5DS is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 5DS is notably smaller (28 percent) than the Canon 1D Mark II N. Moreover, the 5DS is substantially lighter (41 percent) than the 1D Mark II N. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 5DS) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (1D Mark II N). You can compare the optics available in the Canon EF Lens Catalog.
Concerning battery life, the 1D Mark II N gets 1200 shots out of its NP-E3 battery, while the 5DS can take 700 images on a single charge of its LP-E6 power pack. As can be seen in the images above, the 1D Mark II N has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 5DS, Canon provides the BG-E11 vertical grip as an optional accessory (see here on ebay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999||ebay.com|
|2.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||ebay.com|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999||amazon.com|
|4.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||ebay.com|
|5.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499||amazon.com|
|6.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699||ebay.com|
|7.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499||ebay.com|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499||ebay.com|
|9.||Canon 1D Mark III||156 mm||157 mm||80 mm||1155 g||2200||Y||Feb 2007||4,499||ebay.com|
|10.||Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999||ebay.com|
|11.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299||ebay.com|
|12.||Canon 1D Mark II||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499||ebay.com|
|13.||Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 5DS was somewhat cheaper (by 8 percent) than the 1D Mark II N at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

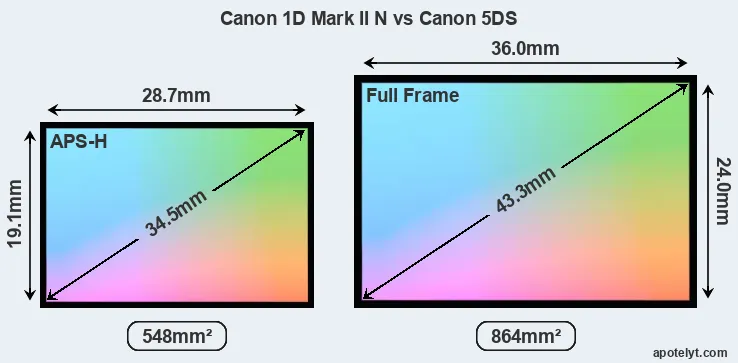

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 1D Mark II N features an APS-H sensor and the Canon 5DS a full frame sensor. The sensor area in the 5DS is 58 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

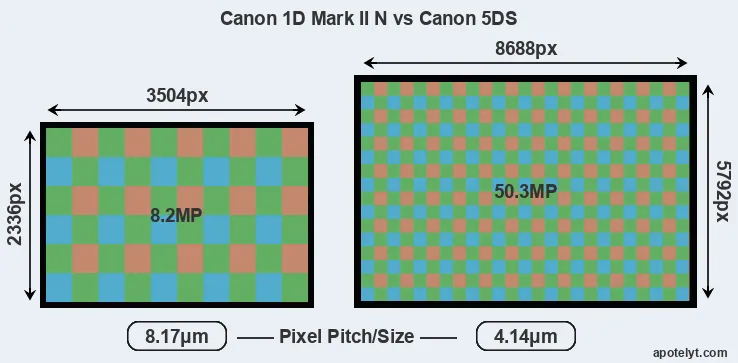

With 50.3MP, the 5DS offers a higher resolution than the 1D Mark II N (8.2MP), but the 5DS has smaller individual pixels (pixel pitch of 4.14μm versus 8.17μm for the 1D Mark II N). Yet, the 5DS is a much more recent model (by 9 years and 5 months) than the 1D Mark II N, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon 5DS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Canon 1D Mark II N are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The Canon EOS-1D Mark II N has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS 5DS are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-12800.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the 5DS offers substantially better image quality than the 1D Mark II N (overall score 21 points higher). The advantage is based on 2.4 bits higher color depth, 1.2 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|1.||Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|2.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|4.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|5.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|6.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|7.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|10.||Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|11.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|12.||Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|13.||Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
Many modern cameras cannot only take still pictures, but also record videos. The 5DS indeed provides for movie recording, while the 1D Mark II N does not. The highest resolution format that the 5DS can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 1D Mark II N and the 5DS are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5DS has a higher magnification than the one of the 1D Mark II N (0.71x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D Mark II N, the Canon 5DS, and comparable cameras.
|1.||Canon 1D Mark II N||optical||Y||2.5 / 230||fixed||n||1/8000s||8.5/s||n||n|
|2.||Canon 5DS||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0/s||n||n|
|3.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5/s||n||n|
|4.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0/s||n||n|
|5.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0/s||n||n|
|6.||Canon 5DS R||optical||Y||3.2 / 1040||fixed||n||1/8000s||5.0/s||n||n|
|7.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0/s||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0 / 920||fixed||n||1/8000s||3.9/s||n||n|
|9.||Canon 1D Mark III||optical||Y||3.0 / 230||fixed||n||1/8000s||10.0/s||n||n|
|10.||Canon 1Ds Mark III||optical||Y||3.0 / 230||fixed||n||1/8000s||5.0/s||n||n|
|11.||Canon 5D||optical||Y||2.5 / 230||fixed||n||1/8000s||3.0/s||n||n|
|12.||Canon 1D Mark II||optical||Y||2.0 / 230||fixed||n||1/8000s||8.3/s||n||n|
|13.||Canon 1Ds Mark II||optical||Y||2.0 / 230||fixed||n||1/8000s||4.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The Canon 5DS has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 1D Mark II N writes its imaging data to Compact Flash or SD cards, while the 5DS uses Compact Flash or SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The 5DS supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 1D Mark II N cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II N and Canon EOS 5DS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 1D Mark II N||Y||- / -||-||-||-||1.1||-||-||-|
|2.||Canon 5DS||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|3.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Canon 5DS R||Y||mono / mono||Y||-||mini||3.0||-||-||-|
|7.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon 1D Mark III||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Canon 1Ds Mark III||Y||mono / -||-||-||-||2.0||-||-||-|
|11.||Canon 5D||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon 1D Mark II||Y||- / -||-||-||-||1.1||-||-||-|
|13.||Canon 1Ds Mark II||Y||- / -||-||-||-||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 1D Mark II N and the 5DS have been discontinued, but can regularly be found used on ebay. The 1D Mark II N was replaced by the Canon 1D Mark III, while the 5DS does not have a direct successor. Further information on the features and operation of the 1D Mark II N and 5DS can be found, respectively, in the Canon 1D Mark II N Manual (free pdf) or the online Canon 5DS Manual.
So what is the bottom line? Is the Canon 1D Mark II N better than the Canon 5DS or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS-1D Mark II N:
- Faster burst: Shoots at higher frequency (8.5 vs 5 flaps/sec) to capture the decisive moment.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 700) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Arguments in favor of the Canon EOS 5DS:
- More detail: Has more megapixels (50.3 vs 8.2MP), which boosts linear resolution by 148%.
- Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.3 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.55x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (152x116mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 635g or 41 percent) and is thus easier to take along.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 1.1).
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 9 years and 5 months of technical progress since the 1D Mark II N launch.
If the count of relative strengths (bullet points above) is taken as a measure, the 5DS is the clear winner of the contest (15 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark II N and the Canon 5DS place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 1D Mark II N and the 5DS in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 1D Mark II N||..||..||..||..||..||..||Aug 2005||3,999||ebay.com|
|2.||Canon 5DS||..||+||..||83/100||4.5/5||4.5/5||Feb 2015||3,699||ebay.com|
|3.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999||amazon.com|
|4.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999||ebay.com|
|5.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499||amazon.com|
|6.||Canon 5DS R||5/5||+||..||83/100||5/5||4.5/5||Feb 2015||3,699||ebay.com|
|7.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499||ebay.com|
|8.||Canon 5D Mark II||4/5||91/100||..||79/100||4/5||..||Sep 2008||3,499||ebay.com|
|9.||Canon 1D Mark III||..||..||..||..||..||..||Feb 2007||4,499||ebay.com|
|10.||Canon 1Ds Mark III||..||..||..||+ +||4.5/5||..||Aug 2007||7,999||ebay.com|
|11.||Canon 5D||..||88/100||..||+ +||o||..||Aug 2005||3,299||ebay.com|
|12.||Canon 1D Mark II||..||..||..||+ +||..||..||Jan 2004||4,499||ebay.com|
|13.||Canon 1Ds Mark II||..||..||..||+ +||..||..||Sep 2004||7,999||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark II N vs Canon XTi
- Canon 1D Mark II N vs Leica X Typ 113
- Canon 1D Mark II N vs Nikon D780
- Canon 1D Mark II N vs Panasonic G95
- Canon 1D Mark II N vs Panasonic GX7
- Canon 1D Mark II N vs Panasonic L1
- Canon 5DS vs Canon SX530
- Canon 5DS vs Fujifilm X-A10
- Canon 5DS vs Olympus E-510
- Canon 5DS vs Panasonic ZS70
- Canon 5DS vs Sony A58
- Canon 5DS vs Sony A99 II
Specifications: Canon 1D Mark II N vs Canon 5DS
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark II N||Canon 5DS|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||August 2005||February 2015|
|Launch Price||USD 3,999||USD 3,699|
|Sensor Specs||Canon 1D Mark II N||Canon 5DS|
|Sensor Format||APS-H Sensor||Full Frame Sensor|
|Sensor Size||28.7 x 19.1 mm||36.0 x 24.0 mm|
|Sensor Area||548.17 mm2||864 mm2|
|Sensor Diagonal||34.5 mm||43.3 mm|
|Sensor Resolution||8.2 Megapixels||50.3 Megapixels|
|Image Resolution||3504 x 2336 pixels||8688 x 5792 pixels|
|Pixel Pitch||8.17 μm||4.14 μm|
|Pixel Density||1.49 MP/cm2||5.82 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100 - 1,600 ISO||100 - 6,400 ISO|
|ISO Boost||50 - 3,200 ISO||50 - 12,800 ISO|
|Image Processor||DIGIC II||DIGIC 6 (Dual)|
|DXO Sensor Quality (score)||66||87|
|DXO Color Depth (bits)||22.3||24.7|
|DXO Dynamic Range (EV)||11.2||12.4|
|DXO Low Light (ISO)||975||2381|
|Screen Specs||Canon 1D Mark II N||Canon 5DS|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D Mark II N||Canon 5DS|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||8.5 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SD cards||CF or SDXC cards|
|Single or Dual Card Slots||Dual card slots||Dual card slots|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 1D Mark II N||Canon 5DS|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 1.1||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 1D Mark II N||Canon 5DS|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1200 shots per charge||700 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
|Camera Weight||1565 g (55.2 oz)||930 g (32.8 oz)|
