Canon 1D C vs Pentax 645D

The Canon EOS-1D C and the Pentax 645D are two professional cameras that were revealed to the public, respectively, in April 2012 and March 2010. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (1DC) and a medium format (645D) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Pentax provides 39.5 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 1D C		Pentax 645D
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Pentax 645 mount lenses
17.9 MP – Full Frame sensor		39.5 MP – Medium Format sensor
4K/24p Video		no Video
ISO 100-51,200 (50 - 204,800)		ISO 100-1,600
Optical viewfinder		Optical viewfinder
3.2" LCD – 1040k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
14 shutter flaps per second		1.1 shutter flaps per second
Weathersealed body		Weathersealed body
1120 shots per battery charge		800 shots per battery charge
158 x 164 x 83 mm, 1545 g		156 x 117 x 119 mm, 1480 g

Check 1DC offers at
ebay.com
Check 645D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D C and the Pentax 645D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

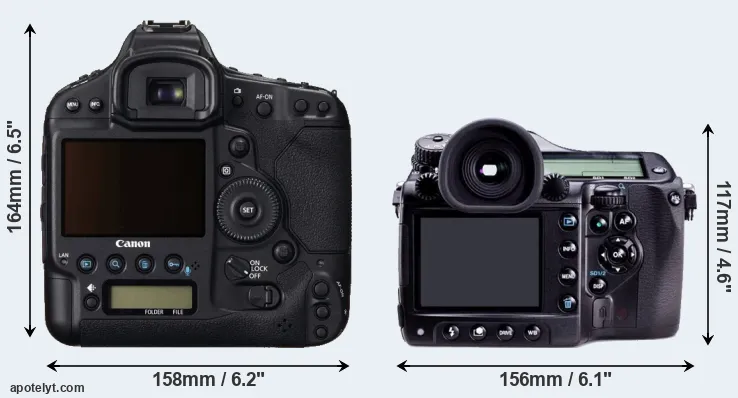

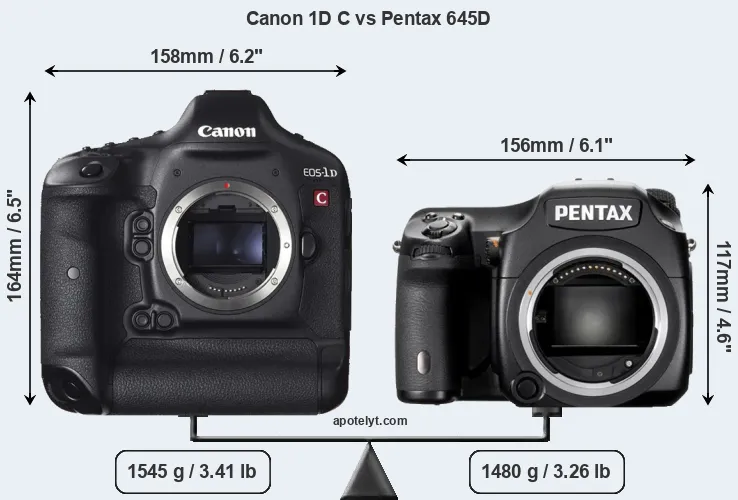

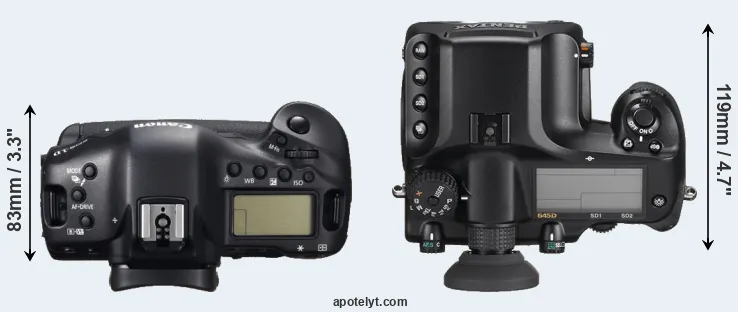

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 1D C and the Pentax 645D. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645D is notably smaller (30 percent) than the Canon 1D C. Moreover, the 645D is slightly lighter (4 percent) than the 1DC. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 1DC gets 1120 shots out of its Canon LP-E4N battery, while the 645D can take 800 images on a single charge of its Pentax D-LI90 power pack. As can be seen in the images above, the 1DC has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1D C	158 mm	164 mm	83 mm	1545 g	1120	Y	Apr 2012	14,999	ebay.com
2.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	9,995	ebay.com
3.		Canon 1D X Mark III	158 mm	168 mm	83 mm	1440 g	2850	Y	Jan 2020	6,499	amazon.com
4.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	5,999	ebay.com
5.		Canon 5D Mark III	152 mm	116 mm	76 mm	950 g	950	Y	Mar 2012	3,499	ebay.com
6.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	2,099	ebay.com
7.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	6,799	ebay.com
8.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	4,999	ebay.com
9.		Canon 5D Mark II	152 mm	114 mm	75 mm	850 g	850	Y	Sep 2008	3,499	ebay.com
10.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	7,999	ebay.com
11.		Canon 1Ds Mark II	156 mm	158 mm	80 mm	1215 g	1200	Y	Sep 2004	7,999	ebay.com
12.		Canon 1Ds	156 mm	158 mm	80 mm	1265 g	600	Y	Sep 2002	8,999	ebay.com
13.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	21,950	ebay.com
14.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	5,999	ebay.com
15.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	5,199	ebay.com
16.		Pentax 645Z	156 mm	117 mm	123 mm	1550 g	650	Y	Apr 2014	8,499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 645D was launched at a markedly lower price (by 33 percent) than the 1DC, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

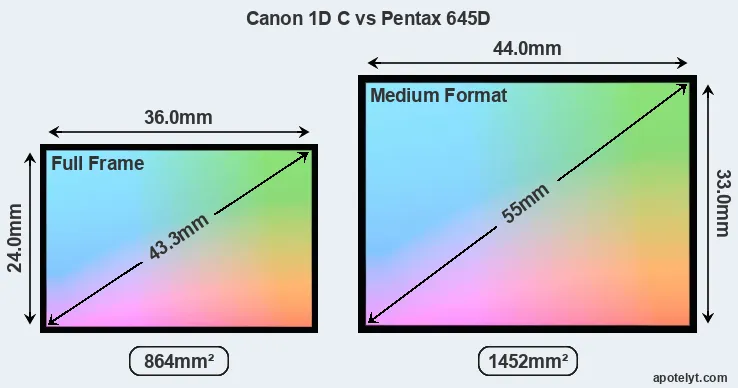

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D C features a full frame sensor and the Pentax 645D a medium format sensor. The sensor area in the 645D is 68 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.79. The sensor in the 1DC has a native 3:2 aspect ratio, while the one in the 645D offers a 4:3 aspect.

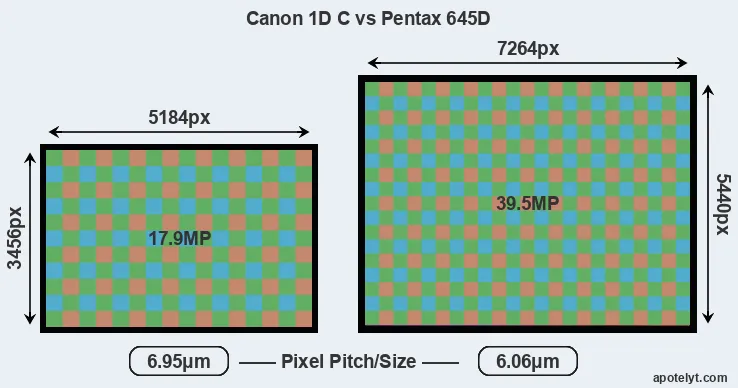

With 39.5MP, the 645D offers a higher resolution than the 1DC (17.9MP), but the 645D has smaller individual pixels (pixel pitch of 6.06μm versus 6.95μm for the 1DC). Yet, the 1DC is a much more recent model (by 2 years and 1 month) than the 645D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 645D has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax 645D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645D for good quality output (200 dots per inch) amounts to 36.3 x 27.2 inches or 92.3 x 69.1 cm, for very good quality (250 dpi) 29.1 x 21.8 inches or 73.8 x 55.3 cm, and for excellent quality (300 dpi) 24.2 x 18.1 inches or 61.5 x 46.1 cm. The corresponding values for the Canon 1D C are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon EOS-1D C has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-204800. The corresponding ISO settings for the Pentax 645D are ISO 100 to ISO 1600 (no boost).

In terms of underlying technology, the 1DC is build around a CMOS sensor, while the 645D uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 1D C	Full Frame	17.9	5184	3456	4K/24p	24.3	13.0	2155	85
2.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
3.		Canon 1D X Mark III	Full Frame	20.0	5472	3648	4K/60p	24.2	14.5	3248	91
4.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
5.		Canon 5D Mark III	Full Frame	22.1	5760	3840	1080/30p	24.0	11.7	2293	81
6.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
7.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
8.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
9.		Canon 5D Mark II	Full Frame	21.0	5616	3744	1080/30p	23.7	11.9	1815	79
10.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
11.		Canon 1Ds Mark II	Full Frame	16.6	4992	3328	none	23.3	11.3	1480	74
12.		Canon 1Ds	Full Frame	11.0	4064	2704	none	21.8	11.0	954	63
13.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
14.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
15.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
16.		Pentax 645Z	Medium Format	51.1	8256	6192	1080/60i	26.0	14.7	4505	101
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The 1DC indeed provides movie recording capabilities, while the 645D does not. The highest resolution format that the 1DC can use is 4K/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 1DC and the 645D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1DC offers a wider field of view (100%) than the one in the 645D (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 645D has a higher magnification (0.78x vs 0.76x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 1D C, the Pentax 645D, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 1D C	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
2.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
3.		Canon 1D X Mark III	optical	Y	3.2 / 2100	fixed	Y	1/8000s	20.0/s	n	n
4.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
5.		Canon 5D Mark III	optical	Y	3.2 / 1040	fixed	n	1/8000s	6.0/s	n	n
6.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
7.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
8.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
9.		Canon 5D Mark II	optical	Y	3.0 / 920	fixed	n	1/8000s	3.9/s	n	n
10.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
11.		Canon 1Ds Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	4.0/s	n	n
12.		Canon 1Ds	optical	Y	2.0 / 120	fixed	n	1/8000s	3.0/s	n	n
13.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
14.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
15.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
16.		Pentax 645Z	optical	Y	3.2 / 1037	tilting	n	1/4000s	3.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Pentax 645D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 1DC writes its imaging data to Compact Flash cards, while the 645D uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D C and Pentax 645D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 1D C	Y	mono / mono	Y	Y	mini	2.0	-	-	-
2.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-
3.		Canon 1D X Mark III	Y	mono / mono	Y	Y	mini	3.1	Y	-	Y
4.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 5D Mark III	Y	mono / mono	Y	Y	mini	2.0	-	-	-
6.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
7.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
8.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
9.		Canon 5D Mark II	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
11.		Canon 1Ds Mark II	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon 1Ds	Y	- / -	-	-	-	FW	-	-	-
13.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
14.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
15.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Pentax 645Z	Y	stereo / mono	Y	-	mini	3.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the 1DC and the 645D have been discontinued, but can regularly be found used on ebay. The 645D was replaced by the Pentax 645Z, while the 1DC does not have a direct successor. Further information on the features and operation of the 1DC and 645D can be found, respectively, in the Canon 1D C Manual (free pdf) or the online Pentax 645D Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon 1D C and the Pentax 645D? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS-1D C:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 4K/24p movies.
• More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (14 vs 1.1 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (1120 versus 800) on a single battery charge.
• More modern: Reflects 2 years and 1 month of technical progress since the 645D launch.

Arguments in favor of the Pentax 645D:

• More detail: Has more megapixels (39.5 vs 17.9MP), which boosts linear resolution by 46%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.76x).
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (156x117mm vs 158x164mm) and will fit more readily into a bag.
• More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in March 2010).

If the count of relative strengths (bullet points above) is taken as a measure, the 1DC emerges as the winner of the contest (10 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 1D C and the Pentax 645D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 1DC or the 645D perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 1D C	..	..	..	..	..	..	Apr 2012	14,999	ebay.com
2.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	9,995	ebay.com
3.		Canon 1D X Mark III	..	+ +	5/5	..	4.5/5	4/5	Jan 2020	6,499	amazon.com
4.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	5,999	ebay.com
5.		Canon 5D Mark III	..	+ +	..	82/100	4.5/5	4.5/5	Mar 2012	3,499	ebay.com
6.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	2,099	ebay.com
7.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	6,799	ebay.com
8.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	4,999	ebay.com
9.		Canon 5D Mark II	4/5	91/100	..	79/100	4/5	..	Sep 2008	3,499	ebay.com
10.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	7,999	ebay.com
11.		Canon 1Ds Mark II	..	..	..	+ +	..	..	Sep 2004	7,999	ebay.com
12.		Canon 1Ds	..	..	..	+ +	..	..	Sep 2002	8,999	ebay.com
13.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	21,950	ebay.com
14.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	5,999	ebay.com
15.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	5,199	ebay.com
16.		Pentax 645Z	5/5	..	3.5/5	..	4.5/5	5/5	Apr 2014	8,499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
