Canon 10D vs Olympus XZ-2
The Canon EOS 10D and the Olympus XZ-2 are two digital cameras that were announced, respectively, in February 2003 and September 2012. The 10D is a DSLR, while the XZ-2 is a fixed lens compact. The cameras are based on an APS-C (10D) and a 1/1.7-inch (XZ-2) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 11.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 10D||Olympus XZ-2|
|Digital single lens reflex||Fixed lens compact camera|
|Canon EF mount lenses||28-112mm f/1.8-2.5|
|6.3 MP, APS-C Sensor||11.8 MP, 1/1.7" Sensor|
|no Video||1080/30p Video|
|ISO 100-3200||ISO 100-12800|
|Optical viewfinder||Viewfinder optional|
|1.8" LCD, 118k dots||3.0" LCD, 920k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|3 shutter flaps per second||5 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|500 shots per battery charge||340 shots per battery charge|
|150 x 107 x 75 mm, 850 g||113 x 65 x 48 mm, 346 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 10D and the Olympus XZ-2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 10D and the Olympus XZ-2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-2 is considerably smaller (54 percent) than the Canon 10D. In this context, it is worth noting that neither the 10D nor the XZ-2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-2 has a lens built in, whereas the 10D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 10D and their specifications in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 10D»||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||Canon 10D|
|Olympus XZ-2«||4.4 in||2.6 in||1.9 in||12.2 oz||340||n||Sep 2012||599||Olympus XZ-2|
|Canon T5« »||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449||Canon T5|
|Canon G16« »||4.3 in||3.0 in||1.6 in||12.6 oz||360||n||Aug 2013||549||Canon G16|
|Canon SL1« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||Canon SL1|
|Canon T4i« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon T4i|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||Canon 7D|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Canon Rebel« »||5.6 in||3.9 in||2.8 in||22.9 oz||400||n||Aug 2003||899||Canon Rebel|
|Canon D60« »||5.9 in||4.2 in||3.0 in||30.2 oz||620||n||Feb 2002||2,999||Canon D60|
|Nikon D100« »||5.7 in||4.6 in||3.2 in||27.5 oz||370||n||Feb 2002||1,999||Nikon D100|
|Olympus E-PL2« »||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599||Olympus E-PL2|
|Olympus E-PL3« »||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599||Olympus E-PL3|
|Olympus XZ-1« »||4.4 in||2.6 in||1.7 in||9.7 oz||320||n||Jan 2011||499||Olympus XZ-1|
|Pentax MX-1« »||4.8 in||2.4 in||2.0 in||13.8 oz||290||n||Jan 2013||499||Pentax MX-1|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XZ-2 was launched at a lower price than the 10D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 10D features an APS-C sensor and the Olympus XZ-2 a 1/1.7-inch sensor. The sensor area in the XZ-2 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the 10D has a native 3:2 aspect ratio, while the one in the XZ-2 offers a 4:3 aspect.

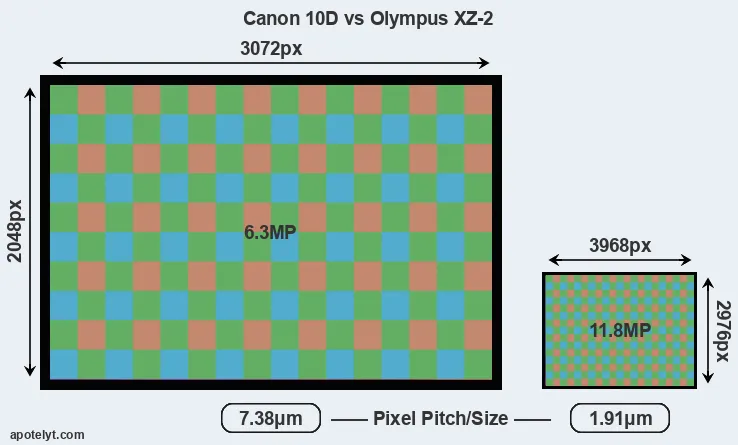

Despite having a smaller sensor, the XZ-2 offers a higher resolution of 11.8 megapixels, compared with 6.3 MP of the 10D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.91μm versus 7.38μm for the 10D). However, it should be noted that the XZ-2 is much more recent (by 9 years and 6 months) than the 10D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus XZ-2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the XZ-2 for good quality output (200 dots per inch) amounts to 19.8 x 14.9 inch or 50.4 x 37.8 cm, for very good quality (250 dpi) 15.9 x 11.9 inch or 40.3 x 30.2 cm, and for excellent quality (300 dpi) 13.2 x 9.9 inch or 33.6 x 25.2 cm. The corresponding values for the Canon 10D are 15.4 x 10.2 inch or 39 x 26 cm for good quality, 12.3 x 8.2 inch or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inch or 26 x 17.3 cm for excellent quality prints.
The Canon EOS 10D has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus XZ-2 are ISO 100 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 10D has a notably higher overall DXO score than the XZ-2 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.7 bits higher color depth, 0.4 EV of lower dynamic range, and 1.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 10D||APS-C||6.3||3072||2048||none||21.1||10.9||571||57||Canon 10D|
|Olympus XZ-2||1/1.7||11.8||3968||2976||1080/30p||20.4||11.3||216||49||Olympus XZ-2|
|Canon T5||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon T5|
|Canon G16||1/1.7||12.0||4000||3000||1080/60p||21.0||11.7||230||54||Canon G16|
|Canon SL1||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon SL1|
|Canon T4i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon T4i|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Canon Rebel||APS-C||6.3||3072||2048||none||21.0||10.8||544||55||Canon Rebel|
|Canon D60||APS-C||6.3||3072||2048||none||..||..||..||..||Canon D60|
|Nikon D100||APS-C||6.0||3008||2000||none||..||..||..||..||Nikon D100|
|Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55||Olympus E-PL2|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52||Olympus E-PL3|
|Olympus XZ-1||1/1.7||10.1||3664||2752||720/30p||18.8||10.4||117||34||Olympus XZ-1|
|Pentax MX-1||1/1.7||12.0||4000||3000||1080/30p||20.4||11.3||208||49||Pentax MX-1|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The XZ-2 indeed provides for movie recording, while the 10D does not. The highest resolution format that the XZ-2 can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 10D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XZ-2 relies on live view and the rear LCD for framing. That said, the XZ-2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon 10D and Olympus XZ-2 in connection with corresponding information for a sample of similar cameras.
|Canon 10D||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Olympus XZ-2||optional||n||3.0||920||tilting||Y||1/2000s||5.0||Y||Y||Olympus XZ-2|
|Canon T5||optical||n||3.0||460||fixed||n||1/4000s||3.0||Y||n||Canon T5|
|Canon G16||optical||n||3.0||922||fixed||n||1/4000s||2.2||Y||Y||Canon G16|
|Canon SL1||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon SL1|
|Canon T4i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T4i|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon Rebel||optical||n||1.8||118||fixed||n||1/4000s||2.5||Y||n||Canon Rebel|
|Canon D60||optical||Y||1.8||114||fixed||n||1/4000s||3.0||Y||n||Canon D60|
|Nikon D100||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Nikon D100|
|Olympus E-PL2||optional||n||3.0||460||fixed||n||1/4000s||3.0||Y||Y||Olympus E-PL2|
|Olympus E-PL3||optional||n||3.0||460||tilting||n||1/4000s||5.5||n||Y||Olympus E-PL3|
|Olympus XZ-1||optional||n||3.0||614||fixed||n||1/2000s||2.0||Y||Y||Olympus XZ-1|
|Pentax MX-1||none||n||3.0||920||tilting||n||1/8000s||1.0||Y||Y||Pentax MX-1|
One feature that is present on the 10D, but is missing on the XZ-2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Olympus XZ-2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 10D writes its imaging data to Compact Flash cards, while the XZ-2 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 10D and Olympus XZ-2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 10D||Y||none||none||-||-||none||1.1||-||-||-||Canon 10D|
|Olympus XZ-2||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus XZ-2|
|Canon T5||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon T5|
|Canon G16||Y||stereo||mono||-||-||mini||2.0||Y||-||-||Canon G16|
|Canon SL1||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon SL1|
|Canon T4i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T4i|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Canon Rebel||Y||none||none||-||-||none||1.1||-||-||-||Canon Rebel|
|Canon D60||Y||none||none||-||-||none||1.1||-||-||-||Canon D60|
|Nikon D100||Y||none||none||-||-||none||1.1||-||-||-||Nikon D100|
|Olympus E-PL2||Y||stereo||none||-||-||mini||2.0||-||-||-||Olympus E-PL2|
|Olympus E-PL3||Y||stereo||none||-||-||mini||2.0||-||-||-||Olympus E-PL3|
|Olympus XZ-1||Y||mono||none||-||-||mini||2.0||-||-||-||Olympus XZ-1|
|Pentax MX-1||-||stereo||mono||-||-||mini||2.0||-||-||-||Pentax MX-1|
Studio photographers will appreciate that the Canon 10D (unlike the XZ-2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 10D and the XZ-2 have been discontinued, but can regularly be found used on eBay. The 10D was replaced by the Canon 20D, while the XZ-2 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is the Canon 10D better than the Olympus XZ-2 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 10D:
- Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (500 versus 340) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2003).
Advantages of the Olympus XZ-2:
- More detail: Has more megapixels (11.8 vs 6.3MP), which boosts linear resolution by 34%.
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 118k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the 10D requires a separate lens.
- More compact: Is smaller (113x65mm vs 150x107mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 10D).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 9 years and 6 months of technical progress since the 10D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the XZ-2 is the clear winner of the contest (15 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 10D and the Olympus XZ-2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 10D or the XZ-2. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 10D vs Canon 760D
- Canon 10D vs Canon SX710
- Canon 10D vs Nikon D100
- Canon 10D vs Olympus E-PL8
- Canon 10D vs Sony A7S II
- Canon SL1 vs Olympus XZ-2
- Fujifilm GFX 100 vs Olympus XZ-2
- Nikon D3S vs Olympus XZ-2
- Nikon D500 vs Olympus XZ-2
- Nikon D800 vs Olympus XZ-2
- Nikon L840 vs Olympus XZ-2
- Olympus E-P5 vs Olympus XZ-2
Specifications: Canon 10D vs Olympus XZ-2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 10D||Olympus XZ-2|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||28-112mm f/1.8-2.5|
|Launch Date||February 2003||September 2012|
|Launch Price||USD 1999||USD 599|
|Sensor Specs||Canon 10D||Olympus XZ-2|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||22.7 x 15.1 mm||7.6 x 5.7 mm|
|Sensor Area||342.77 mm2||43.32 mm2|
|Sensor Diagonal||27.3 mm||9.5 mm|
|Sensor Resolution||6.3 Megapixels||11.8 Megapixels|
|Image Resolution||3072 x 2048 pixels||3968 x 2976 pixels|
|Pixel Pitch||7.38 μm||1.91 μm|
|Pixel Density||1.84 MP/cm2||27.26 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-3200 ISO||100-12800 ISO|
|Image Processor||DIGIC||TruePic VI|
|DXO Sensor Quality (score)||57||49|
|DXO Color Depth (bits)||21.1||20.4|
|DXO Dynamic Range (EV)||10.9||11.3|
|DXO Low Light (ISO)||571||216|
|Screen Specs||Canon 10D||Olympus XZ-2|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||1.8 inch||3.0 inch|
|LCD Resolution||118k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 10D||Olympus XZ-2|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 10D||Olympus XZ-2|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 10D||Olympus XZ-2|
|Battery Life (CIPA)||500 shots per charge||340 shots per charge|
150 x 107 x 75 mm
(5.9 x 4.2 x 3.0 in)
113 x 65 x 48 mm
(4.4 x 2.6 x 1.9 in)
|Camera Weight||850 g (30.0 oz)||346 g (12.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
