Canon 10D vs Olympus E-500
The Canon EOS 10D and the Olympus Evolt E-500 are two digital cameras that were officially introduced, respectively, in February 2003 and September 2005. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (10D) and a Four Thirds (E-500) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 10D||Olympus E-500|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Four Thirds lenses|
|6.3 MP, APS-C Sensor||8 MP, Four Thirds Sensor|
|no Video||no Video|
|ISO 100-3200||ISO 100-400 (100-1600)|
|Optical viewfinder||Optical viewfinder|
|1.8" LCD, 118k dots||2.5" LCD, 215k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|3 shutter flaps per second||2.5 shutter flaps per second|
|500 shots per battery charge||750 shots per battery charge|
|150 x 107 x 75 mm, 850 g||130 x 95 x 66 mm, 479 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 10D and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

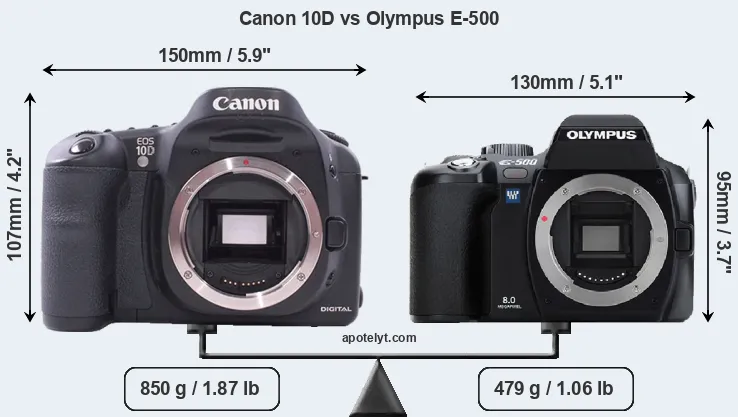

The physical size and weight of the Canon 10D and the Olympus E-500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is notably smaller (23 percent) than the Canon 10D. Moreover, the E-500 is substantially lighter (44 percent) than the 10D. In this context, it is worth noting that neither the 10D nor the E-500 are weather-sealed.

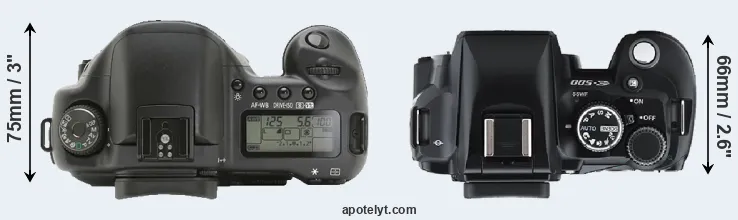

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (10D) and the Four Thirds Lens Catalog (E-500).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 10D»||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||Canon 10D|
|Olympus E-500«||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599||Olympus E-500|
|Canon T5« »||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449||Canon T5|
|Canon SL1« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||Canon SL1|
|Canon T4i« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon T4i|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||Canon 7D|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Canon Rebel« »||5.6 in||3.9 in||2.8 in||22.9 oz||400||n||Aug 2003||899||Canon Rebel|
|Canon D60« »||5.9 in||4.2 in||3.0 in||30.2 oz||620||n||Feb 2002||2,999||Canon D60|
|Nikon D100« »||5.7 in||4.6 in||3.2 in||27.5 oz||370||n||Feb 2002||1,999||Nikon D100|
|Olympus E-410« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699||Olympus E-410|
|Olympus E-510« »||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799||Olympus E-510|
|Olympus E-330« »||5.5 in||3.4 in||2.8 in||22.5 oz||750||n||Jan 2006||999||Olympus E-330|
|Olympus E-400« »||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699||Olympus E-400|
|Olympus E-300« »||5.8 in||3.3 in||2.5 in||22.0 oz||750||n||Sep 2004||799||Olympus E-300|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-500 was launched at a markedly lower price (by 70 percent) than the 10D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

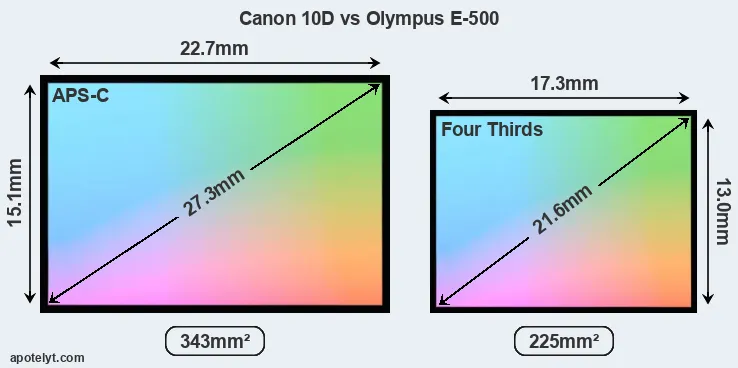

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 10D features an APS-C sensor and the Olympus E-500 a Four Thirds sensor. The sensor area in the E-500 is 34 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 10D has a native 3:2 aspect ratio, while the one in the E-500 offers a 4:3 aspect.
Despite having a smaller sensor, the E-500 offers a higher resolution of 8 megapixels, compared with 6.3 MP of the 10D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.30μm versus 7.38μm for the 10D). However, it should be noted that the E-500 is much more recent (by 2 years and 6 months) than the 10D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-500 for good quality output (200 dots per inch) amounts to 16.3 x 12.2 inch or 41.5 x 31.1 cm, for very good quality (250 dpi) 13.1 x 9.8 inch or 33.2 x 24.9 cm, and for excellent quality (300 dpi) 10.9 x 8.2 inch or 27.6 x 20.7 cm. The corresponding values for the Canon 10D are 15.4 x 10.2 inch or 39 x 26 cm for good quality, 12.3 x 8.2 inch or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inch or 26 x 17.3 cm for excellent quality prints.
The Canon EOS 10D has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 10D||APS-C||6.3||3072||2048||none||21.1||10.9||571||57||Canon 10D|
|Olympus E-500||Four Thirds||8.0||3264||2448||none||..||..||..||..||Olympus E-500|
|Canon T5||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon T5|
|Canon SL1||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon SL1|
|Canon T4i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon T4i|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Canon Rebel||APS-C||6.3||3072||2048||none||21.0||10.8||544||55||Canon Rebel|
|Canon D60||APS-C||6.3||3072||2048||none||..||..||..||..||Canon D60|
|Nikon D100||APS-C||6.0||3008||2000||none||..||..||..||..||Nikon D100|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51||Olympus E-410|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52||Olympus E-510|
|Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..||Olympus E-330|
|Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..||Olympus E-400|
|Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..||Olympus E-300|
Beyond body and sensor, cameras can and do differ across a range of features. The 10D and the E-500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 10D has a higher magnification than the one of the E-500 (0.55x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 10D, the Olympus E-500, and comparable cameras.
|Canon 10D||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Olympus E-500||optical||n||2.5||215||fixed||n||1/4000s||2.5||Y||n||Olympus E-500|
|Canon T5||optical||n||3.0||460||fixed||n||1/4000s||3.0||Y||n||Canon T5|
|Canon SL1||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon SL1|
|Canon T4i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T4i|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon Rebel||optical||n||1.8||118||fixed||n||1/4000s||2.5||Y||n||Canon Rebel|
|Canon D60||optical||Y||1.8||114||fixed||n||1/4000s||3.0||Y||n||Canon D60|
|Nikon D100||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Nikon D100|
|Olympus E-410||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-410|
|Olympus E-510||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||Y||Olympus E-510|
|Olympus E-330||optical||n||2.5||215||tilting||n||1/4000s||3.0||Y||n||Olympus E-330|
|Olympus E-400||optical||n||2.5||215||fixed||n||1/4000s||3.0||Y||n||Olympus E-400|
|Olympus E-300||optical||n||1.8||134||fixed||n||1/4000s||2.5||Y||n||Olympus E-300|
One feature that is present on the 10D, but is missing on the E-500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 10D writes its imaging data to Compact Flash cards, while the E-500 uses Compact Flash or xD Picture cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 10D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 10D and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 10D||Y||none||none||-||-||none||1.1||-||-||-||Canon 10D|
|Olympus E-500||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-500|
|Canon T5||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon T5|
|Canon SL1||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon SL1|
|Canon T4i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T4i|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Canon Rebel||Y||none||none||-||-||none||1.1||-||-||-||Canon Rebel|
|Canon D60||Y||none||none||-||-||none||1.1||-||-||-||Canon D60|
|Nikon D100||Y||none||none||-||-||none||1.1||-||-||-||Nikon D100|
|Olympus E-410||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-410|
|Olympus E-510||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-510|
|Olympus E-330||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-330|
|Olympus E-400||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-400|
|Olympus E-300||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-300|
Studio photographers will appreciate that the Canon 10D (unlike the E-500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 10D and the E-500 have been discontinued, but can regularly be found used on eBay. The 10D was replaced by the Canon 20D, while the E-500 was followed by the Olympus E-510. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is the Canon 10D better than the Olympus E-500 or vice versa? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS 10D:
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.55x vs 0.45x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster burst: Shoots at higher frequency (3 vs 2.5 flaps/sec) to capture the decisive moment.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2003).
Reasons to prefer the Olympus Evolt E-500:
- More detail: Has more megapixels (8 vs 6.3MP), which boosts linear resolution by 11%.
- Larger screen: Has a bigger rear LCD (2.5" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (215k vs 118k dots).
- More compact: Is smaller (130x95mm vs 150x107mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 371g or 44 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (750 versus 500) out of a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
- More modern: Reflects 2 years and 6 months of technical progress since the 10D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-500 comes out slightly ahead of the 10D (10 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 10D and the Olympus E-500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 10D and the E-500 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 10D vs Canon 1D X Mark II
- Canon 10D vs Canon 50D
- Canon 10D vs Panasonic G7
- Canon 10D vs Panasonic S1R
- Canon 10D vs Sony A6000
- Canon 10D vs Sony A7 III
- Canon 6D vs Olympus E-500
- Canon 7D II vs Olympus E-500
- Olympus E-500 vs Olympus E-P3
- Olympus E-500 vs Panasonic G9
- Olympus E-500 vs Panasonic G90
- Olympus E-500 vs Samsung NX1
Specifications: Canon 10D vs Olympus E-500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 10D||Olympus E-500|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||February 2003||September 2005|
|Launch Price||USD 1999||USD 599|
|Sensor Specs||Canon 10D||Olympus E-500|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.7 x 15.1 mm||17.3 x 13.0 mm|
|Sensor Area||342.77 mm2||224.9 mm2|
|Sensor Diagonal||27.3 mm||21.6 mm|
|Sensor Resolution||6.3 Megapixels||8 Megapixels|
|Image Resolution||3072 x 2048 pixels||3264 x 2448 pixels|
|Pixel Pitch||7.38 μm||5.30 μm|
|Pixel Density||1.84 MP/cm2||3.55 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100-3200 ISO||100-400 ISO|
|ISO Boost||no Enhancement||100-1600 ISO|
|DXO Sensor Quality (score)||57||..|
|DXO Color Depth (bits)||21.1||..|
|DXO Dynamic Range (EV)||10.9||..|
|DXO Low Light (ISO)||571||..|
|Screen Specs||Canon 10D||Olympus E-500|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|Rear LCD Size||1.8 inch||2.5 inch|
|LCD Resolution||118k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 10D||Olympus E-500|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||2.5 shutter flaps/s|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 10D||Olympus E-500|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 10D||Olympus E-500|
|Battery Life (CIPA)||500 shots per charge||750 shots per charge|
150 x 107 x 75 mm
(5.9 x 4.2 x 3.0 in)
130 x 95 x 66 mm
(5.1 x 3.7 x 2.6 in)
|Camera Weight||850 g (30.0 oz)||479 g (16.9 oz)|
