Canon 10D vs M100

The Canon EOS 10D and the Canon EOS M100 are two digital cameras that were announced, respectively, in February 2003 and August 2017. The 10D is a DSLR, while the M100 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The 10D has a resolution of 6.3 megapixels, whereas the M100 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 10D		Canon M100
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Canon EF-M mount lenses
6.3 MP, APS-C Sensor		24 MP, APS-C Sensor
no Video		1080/60p Video
ISO 100-3,200		ISO 100-25,600
Optical viewfinder		No viewfinder, LCD framing
1.8 LCD, 118k dots		3.0 LCD, 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		6.1 shutter flaps per second
500 shots per battery charge		295 shots per battery charge
150 x 107 x 75 mm, 850 g		108 x 67 x 35 mm, 302 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 10D and the Canon EOS M100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

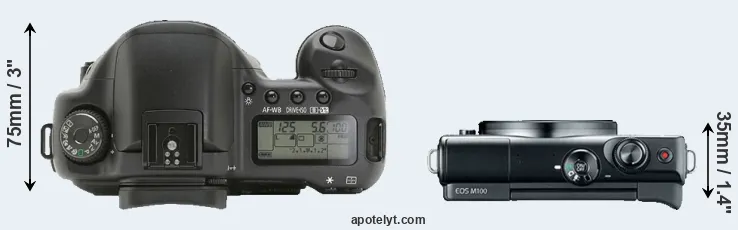

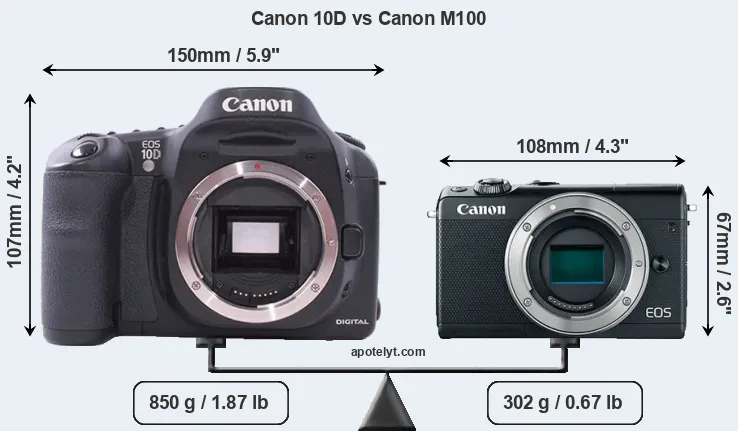

The physical size and weight of the Canon 10D and the Canon M100 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M100 can be obtained in two different colors (black, white), while the 10D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M100 is considerably smaller (55 percent) than the Canon 10D. Moreover, the M100 is substantially lighter (64 percent) than the 10D. In this context, it is worth noting that neither the 10D nor the M100 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 10D gets 500 shots out of its BP-511 battery, while the M100 can take 295 images on a single charge of its LP-E12 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	1,999
2.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499
3.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	549
4.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779
5.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979
6.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679
7.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499
8.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449
9.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549
10.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849
11.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	1,699
12.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299
13.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	1,399
14.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	1,499
15.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899
16.		Canon D60	150 mm	107 mm	75 mm	855 g	620	n	Feb 2002	2,999
17.		Nikon D100	144 mm	116 mm	81 mm	780 g	370	n	Feb 2002	1,999
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M100 was launched at a markedly lower price (by 75 percent) than the 10D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

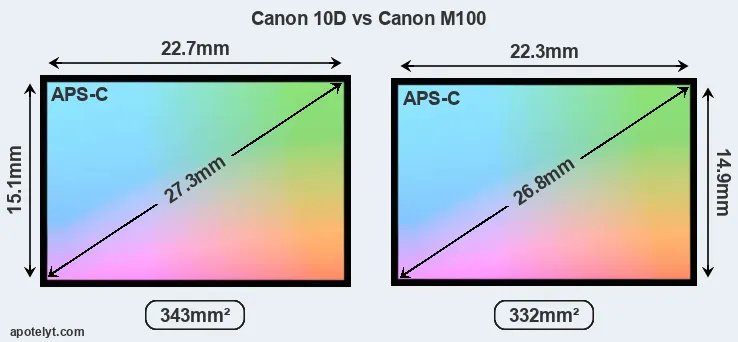

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the M100 is 3 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the M100 uses a more advanced image processing engine (DIGIC 7) than the 10D (DIGIC), with benefits for noise reduction, color accuracy, and processing speed.

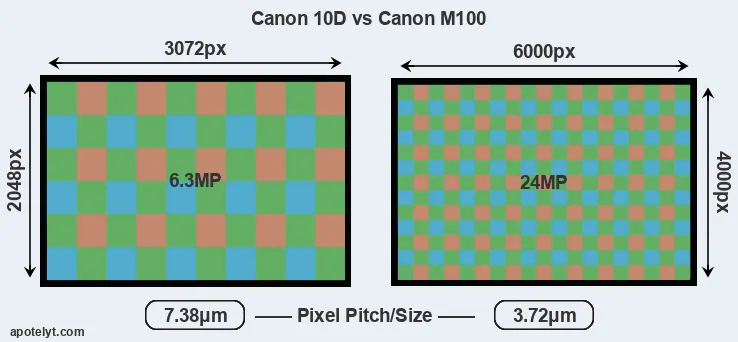

Despite having a slightly smaller sensor, the M100 offers a higher resolution of 24 megapixels, compared with 6.3 MP of the 10D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 7.38μm for the 10D). However, it should be noted that the M100 is much more recent (by 14 years and 6 months) than the 10D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 10D are 15.4 x 10.2 inches or 39 x 26 cm for good quality, 12.3 x 8.2 inches or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inches or 26 x 17.3 cm for excellent quality prints.

The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 10D has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Canon EOS M100 are ISO 100 to ISO 25600 (no boost).

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the M100 offers substantially better image quality than the 10D (overall score 21 points higher). The advantage is based on 2.4 bits higher color depth, 2 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
2.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
3.		Canon M200	APS-C	24.0	6000	4000	4k/25p	..	..	..	..
4.		Canon M6	APS-C	24.0	6000	4000	1080/60p	..	..	..	..
5.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
6.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
7.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
8.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
10.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
11.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
12.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
13.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
14.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
15.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
16.		Canon D60	APS-C	6.3	3072	2048	none	..	..	..	..
17.		Nikon D100	APS-C	6.0	3008	2000	none	..	..	..	..

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The M100 indeed provides for movie recording, while the 10D does not. The highest resolution format that the M100 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 10D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M100 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon 10D and Canon M100 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Mech Shutter Speed	Shutter Flaps (1/sec)	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0	Y	n
2.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1	Y	n
3.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1	Y	n
4.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0	Y	n
5.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0	Y	n
6.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2	Y	n
7.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6	Y	n
8.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0	Y	n
9.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9	Y	n
10.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0	Y	n
11.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0	Y	n
12.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5	Y	n
13.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0	Y	n
14.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0	Y	n
15.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5	Y	n
16.		Canon D60	optical	Y	1.8 / 114	fixed	n	1/4000s	3.0	Y	n
17.		Nikon D100	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0	Y	n

One feature that is present on the 10D, but is missing on the M100 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The 10D writes its imaging data to Compact Flash cards, while the M100 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 10D and Canon EOS M100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
2.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
8.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
12.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
13.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
14.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
15.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
16.		Canon D60	Y	- / -	-	-	-	1.1	-	-	-
17.		Nikon D100	Y	- / -	-	-	-	1.1	-	-	-

It is notable that the 10D has a hotshoe, while the M100 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon 10D (unlike the M100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 10D and the M100 have been discontinued, but can regularly be found used on eBay. The 10D was replaced by the Canon 20D, while the M100 was followed by the Canon M200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what is the bottom line? Which of the two cameras – the Canon 10D or the Canon M100 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 10D:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Longer lasting: Can take more shots (500 versus 295) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in February 2003).

Reasons to prefer the Canon EOS M100:

• More detail: Has more megapixels (24 vs 6.3MP), which boosts linear resolution by 95%.
• Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC).
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 118k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6.1 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (108x67mm vs 150x107mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 548g or 64 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
• More modern: Reflects 14 years and 6 months of technical progress since the 10D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the M100 is the clear winner of the contest (23 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 10D and the Canon M100 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 10D or the M100. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	1,999
2.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499
3.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	549
4.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779
5.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979
6.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679
7.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499
8.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449
9.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549
10.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849
11.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	1,699
12.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299
13.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	1,399
14.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	1,499
15.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	899
16.		Canon D60	..	..	..	+ +	o	..	Feb 2002	2,999
17.		Nikon D100	..	..	..	+ +	o	..	Feb 2002	1,999
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Specifications: Canon 10D vs Canon M100

Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
