Canon 100D vs Panasonic GH5s
The Canon EOS 100D (called Canon SL1 in some regions) and the Panasonic Lumix DC-GH5s are two digital cameras that were revealed to the public, respectively, in March 2013 and January 2018. The 100D is a DSLR, while the GH5s is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (100D) and a Four Thirds (GH5s) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 9.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 100D and the Panasonic Lumix DC-GH5s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

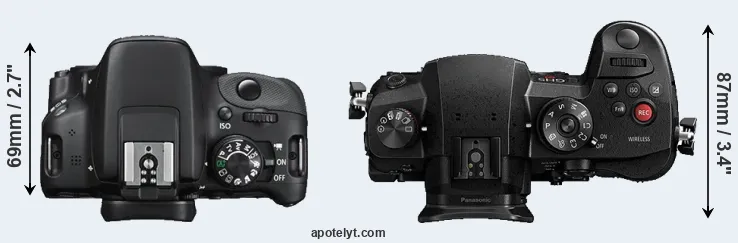

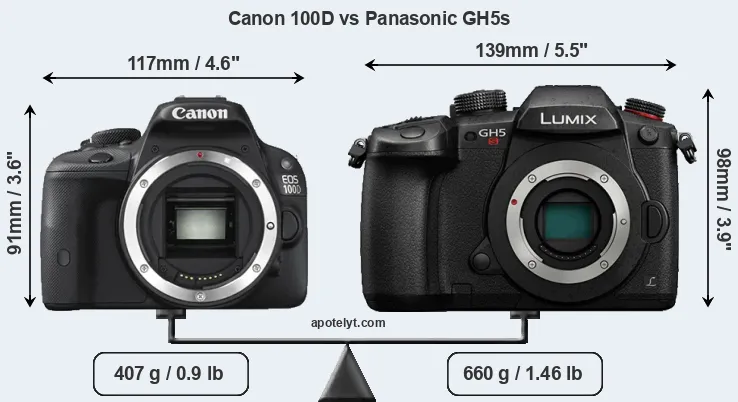

The physical size and weight of the Canon 100D and the Panasonic GH5s are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The 100D can be obtained in two different colors (black, white), while the GH5s is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5s is notably larger (28 percent) than the Canon 100D. Moreover, the GH5s is substantially heavier (62 percent) than the 100D. It is noteworthy in this context that the GH5s is splash and dust-proof, while the 100D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (100D) and the Micro Four Thirds Lens Catalog (GH5s). Mirrorless cameras, such as the GH5s, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 100D||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549|
|Panasonic GH5s||5.5 in||3.9 in||3.4 in||23.3 oz||440||Y||Jan 2018||2,499|
|Canon 4000D||5.1 in||4.0 in||3.0 in||15.4 oz||500||n||Feb 2018||399|
|Canon 200D||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549|
|Canon 7D II||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799|
|Canon 1200D||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449|
|Canon 700D||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649|
|Canon G16||4.3 in||3.0 in||1.6 in||12.6 oz||360||n||Aug 2013||549|
|Canon 650D||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849|
|Canon M||4.3 in||2.6 in||1.3 in||10.5 oz||230||n||Jul 2012||599|
|Canon 600D||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Panasonic FZ300||5.2 in||3.6 in||4.6 in||24.4 oz||380||Y||Jul 2015||599|
|Panasonic GH4||5.2 in||3.7 in||3.3 in||19.8 oz||500||Y||Feb 2014||1,499|
|Panasonic G6||4.8 in||3.3 in||2.8 in||13.8 oz||340||n||Apr 2013||599|
|Panasonic GH3||5.2 in||3.7 in||3.2 in||19.4 oz||540||Y||Sep 2012||1,299|
|Panasonic G2||4.9 in||3.3 in||2.9 in||15.1 oz||360||n||Mar 2010||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 100D was launched at a markedly lower price (by 78 percent) than the GH5s, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 100D features an APS-C sensor and the Panasonic GH5s a Four Thirds sensor. The sensor area in the GH5s is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 100D has a native 3:2 aspect ratio, while the one in the GH5s offers a 4:3 aspect.
With 17.9MP, the 100D offers a higher resolution than the GH5s (9.9MP), but the 100D has smaller individual pixels (pixel pitch of 4.31μm versus 4.77μm for the GH5s). Moreover, the GH5s is a much more recent model (by 4 years and 9 months) than the 100D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the GH5s has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 100D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 100D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Panasonic GH5s are 18.4 x 13.5 inches or 46.7 x 34.3 cm for good quality, 14.7 x 10.8 inches or 37.4 x 27.4 cm for very good quality, and 12.3 x 9 inches or 31.2 x 22.9 cm for excellent quality prints.
The 100D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 100D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-GH5s are ISO 160 to ISO 51200, with the possibility to increase the ISO range to 80-204800.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Panasonic GH5s||Four Thirds||9.9||3680||2700||4K/60p||..||..||..||..|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GH5s provides a better video resolution than the 100D. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GH5s has an electronic viewfinder (3680k dots), while the 100D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the GH5s offers a wider field of view (100%) than the one in the 100D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the GH5s has a higher magnification (0.76x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 100D, the Panasonic GH5s, and comparable cameras.
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The 100D has one, while the GH5s does not. While the built-in flash of the 100D is not very powerful, it can at times be useful as a fill-in light.The GH5s has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 100D does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH5s is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GH5s has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 100D and the GH5s write their files to SDXC cards. The GH5s features dual card slots, which can be very useful in case a memory card fails. In contrast, the 100D only has one slot. The GH5s supports UHS-II cards (on both slots), while the 100D can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 100D and Panasonic Lumix DC-GH5s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
It is notable that the GH5s offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 100D does not provide wifi capability.
Studio photographers will appreciate that the Panasonic GH5s (unlike the 100D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GH5s is a recent model that features in the current product line-up of Panasonic. In contrast, the 100D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 100D was succeeded by the Canon 200D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon 100D and the Panasonic GH5s? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 100D:
- More detail: Offers more megapixels (17.9 vs 9.9MP) with a 37% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More compact: Is smaller (117x91mm vs 139x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 253g or 38 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in March 2013).
Arguments in favor of the Panasonic Lumix DC-GH5s:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.54x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 4.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (440 versus 380) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 4 years and 9 months of technical progress since the 100D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the GH5s is the clear winner of the contest (25 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 100D and the Panasonic GH5s place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 100D or the GH5s. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 100D||+||78/100||4/5||4/5||4/5||Mar 2013||549|
|Panasonic GH5s||..||84/100||4.5/5||5/5||4.5/5||Jan 2018||2,499|
|Canon 4000D||o||..||3.5/5||..||3.5/5||Feb 2018||399|
|Canon 200D||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 1200D||+||..||4/5||4/5||4.5/5||Feb 2014||449|
|Canon 700D||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon G16||+||..||4.5/5||4.5/5||4.5/5||Aug 2013||549|
|Canon 650D||+ +||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849|
|Canon M||+||..||4/5||3.5/5||4/5||Jul 2012||599|
|Canon 600D||o||77/100||4.5/5||5/5||4.5/5||Feb 2011||599|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic FZ300||+ +||..||4.5/5||4.5/5||4.5/5||Jul 2015||599|
|Panasonic GH4||+ +||85/100||5/5||5/5||5/5||Feb 2014||1,499|
|Panasonic G6||+ +||..||5/5||..||4.5/5||Apr 2013||599|
|Panasonic GH3||+ +||79/100||4.5/5||5/5||4.5/5||Sep 2012||1,299|
|Panasonic G2||..||72/100||4/5||4/5||4.5/5||Mar 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 100D vs Canon G1 X Mark II
- Canon 100D vs Canon S120
- Canon 100D vs Olympus E-M5 II
- Canon 100D vs Panasonic FZ150
- Canon 100D vs Sony A6100
- Canon 100D vs Sony RX100 VII
- Canon T1i vs Panasonic GH5s
- Canon XT vs Panasonic GH5s
- Fujifilm X100V vs Panasonic GH5s
- Nikon D40X vs Panasonic GH5s
- Olympus E-M5 II vs Panasonic GH5s
- Panasonic GH5s vs Sony A900
Specifications: Canon 100D vs Panasonic GH5s
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 100D||Panasonic GH5s|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||March 2013||January 2018|
|Launch Price||USD 549||USD 2,499|
|Sensor Specs||Canon 100D||Panasonic GH5s|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||9.9 Megapixels|
|Image Resolution||5184 x 3456 pixels||3680 x 2700 pixels|
|Pixel Pitch||4.31 μm||4.77 μm|
|Pixel Density||5.39 MP/cm2||4.42 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/60p Video|
|ISO Setting||100 - 12,800 ISO||160 - 51,200 ISO|
|ISO Boost||100 - 25,600 ISO||80 - 204,800 ISO|
|Image Processor||DIGIC 5||Venus 10|
|DXO Sensor Quality (score)||63||..|
|DXO Color Depth (bits)||21.8||..|
|DXO Dynamic Range (EV)||11.3||..|
|DXO Low Light (ISO)||843||..|
|Screen Specs||Canon 100D||Panasonic GH5s|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon 100D||Panasonic GH5s|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||4.9 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Canon 100D||Panasonic GH5s|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||mini HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 100D||Panasonic GH5s|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||380 shots per charge||440 shots per charge|
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||407 g (14.4 oz)||660 g (23.3 oz)|
