Canon 100D vs 1D Mark II

The Canon EOS 100D (called Canon SL1 in some regions) and the Canon EOS-1D Mark II are two digital cameras that were revealed to the public, respectively, in March 2013 and January 2004. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (100D) and an APS-H (1D Mark II) sensor. The 100D has a resolution of 17.9 megapixels, whereas the 1D Mark II provides 8.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 100D		Canon 1D Mark II
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
17.9 MP – APS-C sensor		8.2 MP – APS-H sensor
1080/30p Video		no Video
ISO 100-12,800 (100 - 25,600)		ISO 100-1,600 (50 - 3,200)
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		2.0" LCD – 230k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
4.9 shutter flaps per second		8.3 shutter flaps per second
not weather sealed		Weathersealed body
380 shots per battery charge		1200 shots per battery charge
117 x 91 x 69 mm, 407 g		156 x 158 x 80 mm, 1535 g

Check 100D offers at
ebay.com
Check 1D Mark II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 100D and the Canon EOS-1D Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon 100D and the Canon 1D Mark II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The 100D can be obtained in two different colors (black, white), while the 1D Mark II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 1D Mark II is considerably larger (132 percent) than the Canon 100D. Moreover, the 1D Mark II is substantially heavier (277 percent) than the 100D. It is noteworthy in this context that the 1D Mark II is splash and dust-proof, while the 100D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the 1D Mark II) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (100D). You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 100D gets 380 shots out of its Canon LP-E12 battery, while the 1D Mark II can take 1200 images on a single charge of its Canon NP-E3 power pack. As can be seen in the images above, the 1D Mark II has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 100D, there are third party battery grips available as optional accessories (see here on ebay).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
2.		Canon 1D Mark II	156 mm	158 mm	80 mm	1535 g	1200	Y	Jan 2004	4,499	ebay.com
3.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
5.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
6.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
7.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
8.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
9.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
10.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
11.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
12.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	7,999	ebay.com
13.		Canon 1D Mark II N	156 mm	158 mm	80 mm	1565 g	1200	Y	Aug 2005	3,999	ebay.com
14.		Canon 5D	152 mm	113 mm	75 mm	895 g	400	Y	Aug 2005	3,299	ebay.com
15.		Canon 1Ds Mark II	156 mm	158 mm	80 mm	1215 g	1200	Y	Sep 2004	7,999	ebay.com
16.		Canon 1D	156 mm	158 mm	80 mm	1585 g	500	Y	Sep 2001	6,499	ebay.com
17.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 100D was launched at a markedly lower price (by 88 percent) than the 1D Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

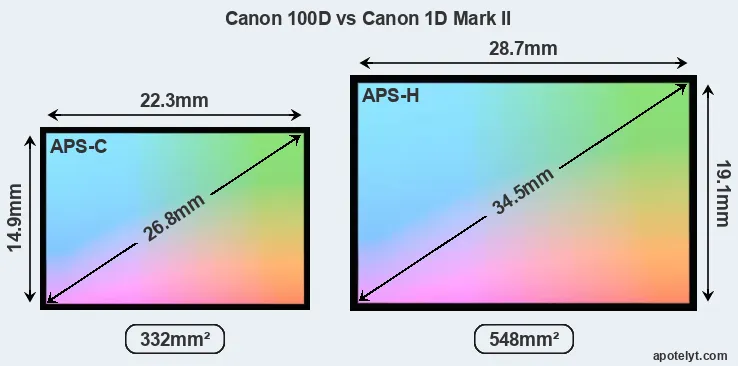

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 100D features an APS-C sensor and the Canon 1D Mark II an APS-H sensor. The sensor area in the 1D Mark II is 65 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.3. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the 100D uses a more advanced image processing engine (DIGIC 5) than the 1D Mark II (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the Canon 100D offers a higher resolution of 17.9 megapixels, compared with 8.2 MP of the Canon 1D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 8.17μm for the 1D Mark II). However, it should be noted that the 100D is much more recent (by 9 years and 1 month) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon 100D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 100D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon 1D Mark II are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.

The 100D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 100D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS-1D Mark II are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 50-3200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
2.		Canon 1D Mark II	APS-H	8.2	3504	2336	none	22.3	11.1	1003	66
3.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
6.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
7.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
8.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
9.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
10.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
11.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
12.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
13.		Canon 1D Mark II N	APS-H	8.2	3504	2336	none	22.3	11.2	975	66
14.		Canon 5D	Full Frame	12.7	4368	2912	none	22.9	11.1	1368	71
15.		Canon 1Ds Mark II	Full Frame	16.6	4992	3328	none	23.3	11.3	1480	74
16.		Canon 1D	APS-H	4.1	2496	1662	none	..	..	..	..
17.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61

Many modern cameras cannot only take still pictures, but also record videos. The 100D indeed provides movie recording capabilities, while the 1D Mark II does not. The highest resolution format that the 100D can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 100D and the 1D Mark II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 1D Mark II offers a wider field of view (100%) than the one in the 100D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 1D Mark II has a higher magnification (0.55x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 100D, the Canon 1D Mark II, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
2.		Canon 1D Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	8.3/s	n	n
3.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
9.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
11.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
12.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
13.		Canon 1D Mark II N	optical	Y	2.5 / 230	fixed	n	1/8000s	8.5/s	n	n
14.		Canon 5D	optical	Y	2.5 / 230	fixed	n	1/8000s	3.0/s	n	n
15.		Canon 1Ds Mark II	optical	Y	2.0 / 230	fixed	n	1/8000s	4.0/s	n	n
16.		Canon 1D	optical	Y	2.0 / 120	fixed	n	1/16000s	8.0/s	n	n
17.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 100D has one, while the 1D Mark II does not. While the built-in flash of the 100D is not very powerful, it can at times be useful as a fill-in light.

The 100D writes its imaging data to SDXC cards, while the 1D Mark II uses Compact Flash or SD cards. The 1D Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the 100D only has one slot. The 100D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 1D Mark II cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 100D and Canon EOS-1D Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Canon 1D Mark II	Y	- / -	-	-	-	1.1	-	-	-
3.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
7.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
9.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
13.		Canon 1D Mark II N	Y	- / -	-	-	-	1.1	-	-	-
14.		Canon 5D	Y	- / -	-	-	-	2.0	-	-	-
15.		Canon 1Ds Mark II	Y	- / -	-	-	-	2.0	-	-	-
16.		Canon 1D	Y	- / -	-	-	-	FW	-	-	-
17.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-

Studio photographers will appreciate that the Canon 1D Mark II (unlike the 100D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 100D and the 1D Mark II have been discontinued, but can regularly be found used on ebay. The 1D Mark II was replaced by the Canon 1D Mark II N, while the 100D was followed by the Canon 200D. Further information on the features and operation of the 100D and 1D Mark II can be found, respectively, in the Canon 100D Manual (free pdf) or the online Canon 1D Mark II Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 100D or the Canon 1D Mark II – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS 100D:

• More detail: Offers more megapixels (17.9 vs 8.2MP) with a 48% higher linear resolution.
• Better jpgs: Has a more modern image processing engine (DIGIC 5 vs DIGIC II).
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More compact: Is smaller (117x91mm vs 156x158mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 1128g or 73 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
• More modern: Reflects 9 years and 1 month of technical progress since the 1D Mark II launch.

Arguments in favor of the Canon EOS-1D Mark II:

• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.55x vs 0.54x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (8.3 vs 4.9 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (1200 versus 380) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in January 2004).

If the count of relative strengths (bullet points above) is taken as a measure, the 100D emerges as the winner of the contest (14 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 100D and the Canon 1D Mark II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 100D and the 1D Mark II in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
2.		Canon 1D Mark II	..	..	..	+ +	..	..	Jan 2004	4,499	ebay.com
3.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
5.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
6.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
7.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
8.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
9.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
10.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
11.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
12.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	7,999	ebay.com
13.		Canon 1D Mark II N	..	..	..	..	..	..	Aug 2005	3,999	ebay.com
14.		Canon 5D	..	88/100	..	+ +	o	..	Aug 2005	3,299	ebay.com
15.		Canon 1Ds Mark II	..	..	..	+ +	..	..	Sep 2004	7,999	ebay.com
16.		Canon 1D	..	..	..	+ +	..	..	Sep 2001	6,499	ebay.com
17.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
