Touchscreen on the Olympus PEN-F?
The rear monitor on the Olympus PEN-F is touch sensitive. This feature is convenient for adjusting camera settings and reviewing images, and – just like a touchscreen on a smartphone – makes operations easy, quick, and intuitive. Commands can be entered by tapping, swiping, and sliding on the rear screen, instead of having to use dials and buttons on the camera body.
The LCD is flexibly attached to the body to allow for odd-angle shots.
In terms of size and resolution, the rear LCD of the Olympus PEN-F measures 3.0 inches and offers a resolution of 1,037,000 dots.
Viewfinder Type | Electronic viewfinder | |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.62x | |
Viewfinder Resolution | 2360k dots | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 1037k dots | |
LCD Attachment | Swivel screen | |
Touch Input | Touchscreen |

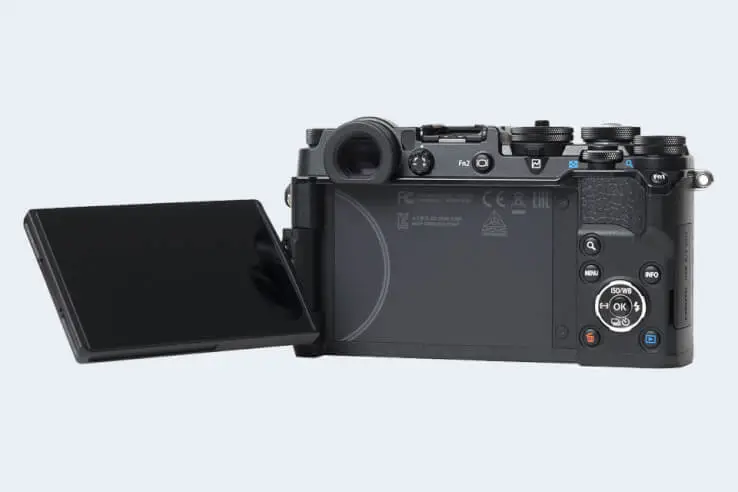

Back side of the Olympus PEN-F with LCD
As can be seen from the rear-side image, the 3.0-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.
Camera to camera comparisons
The Olympus PEN-F is a mirrorless interchangeable lens camera that was officially introduced in January 2016 and is equipped with a Four Thirds sensor. It offers a resolution of 20.2 megapixel. In the United States, the camera was initially launched at a price of $1,199.
The table below compares the rear screen specs of the Olympus PEN-F to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Mech Shutter Speed |
Shutter Flaps (1/sec) |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus PEN-F | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
2. | Olympus E-M10 III | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.6/s | Y | Y | |
3. | Olympus E-PL8 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
4. | Olympus E-M5 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
5. | Olympus E-M10 II | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
6. | Olympus E-PL7 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
7. | Olympus E-M1 | 2360 | n | 3.0 / 1037 | tilting | Y | 1/8000s | 10.0/s | n | Y | |
8. | Olympus E-P5 | optional | n | 3.0 / 1037 | tilting | Y | 1/8000s | 9.0/s | Y | Y | |
9. | Olympus E-M5 | 1440 | n | 3.0 / 610 | tilting | Y | 1/4000s | 9.0/s | n | Y | |
10. | Panasonic GX8 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
11. | Panasonic GX7 | 2760 | n | 3.0 / 1040 | tilting | Y | 1/8000s | 5.0/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
In case you would like to check on the differences and similarities with other camera models, just use the search menu below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 100D vs Olympus PEN-F
- Canon 1D X Mark III vs Olympus PEN-F
- Canon 20D vs Olympus PEN-F
- Canon D30 vs Olympus PEN-F
- Canon M50 vs Olympus PEN-F
- Canon SX620 vs Olympus PEN-F
- Fujifilm X100V vs Olympus PEN-F
- Leica V-LUX 2 vs Olympus PEN-F
- Nikon D2Xs vs Olympus PEN-F
- Nikon Z30 vs Olympus PEN-F
- Olympus PEN-F vs Panasonic G3
- Olympus PEN-F vs Sony A7R III
Camera Model | Olympus PEN-F | |
---|---|---|
Camera Type | Mirrorless system camera | |
Camera Lens | Micro Four Thirds lenses | |
Launch Date | January 2016 | |
Launch Price | USD 1 199 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | Four Thirds Sensor | |
Sensor Size | 17.3 x 13.0 mm | |
Sensor Area | 225 mm2 | |
Sensor Diagonal | 21.6 mm | |
Crop Factor | 2.0x | |
Sensor Resolution | 20.2 Megapixels | |
Image Resolution | 5 184 x 3 888 pixels | |
Pixel Pitch | 3.34 μm | |
Pixel Density | 8.96 MP/cm2 | |
Moiré control | no AA filter | |
Movie Capability | 1080/60p Video | |
ISO Setting | 80 - 25 600 ISO | |
Image Processor | TruePic VII | |
DXO Sensor Quality (score) | 74 | |
DXO Color Depth (bits) | 23.1 | |
DXO Dynamic Range (EV) | 12.4 | |
DXO Low Light (ISO) | 894 | |
Screen Specs | ||
Viewfinder Type | Electronic viewfinder | |
Viewfinder Field of View | 100% | |
Viewfinder Magnification | 0.62x | |
Viewfinder Resolution | 2360k dots | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 1037k dots | |
LCD Attachment | Swivel screen | |
V-logging Friendliness | Front-flip possible | |
Touch Input | Touchscreen | |
Shooting Specs | ||
Focus System | Contrast-detect AF | |
Manual Focusing Aid | Focus Peaking | |
Maximum Shutter Speed | 1/8000s | |
Continuous Shooting | 10 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | Electronic Shutter | |
Time Lapse Photography | Intervalometer Built-in | |
Image Stabilization | In-body stabilization | |
Fill Flash | no On-Board Flash | |
Storage Medium | SDXC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | UHS-II | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | micro HDMI | |
Wifi Support | Wifi built-in | |
Body Specs | ||
Battery Type | Olympus BLN-1 power pack | |
Battery Life (CIPA) | 330 shots per charge | |
Body Dimensions |
125 x 72 x 37 mm (4.9 x 2.8 x 1.5 in) |
|
Camera Weight | 427 g (15.1 oz) |
