What is the sensor size of the Leica TL2?

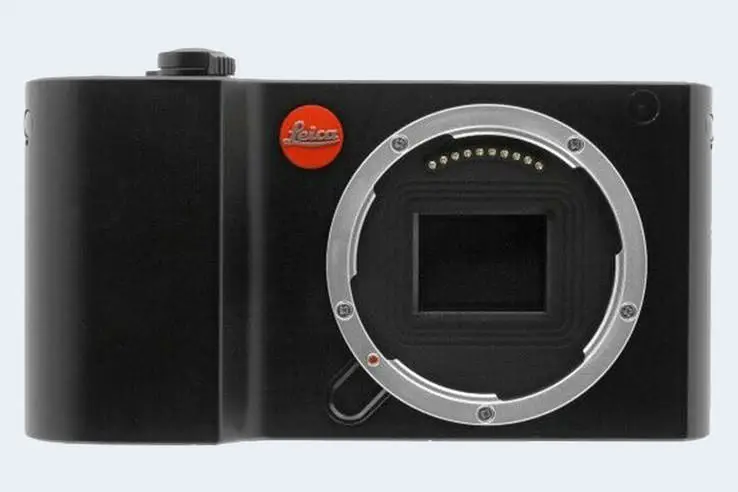

The Leica TL2 is a digital camera that has an APS-C sensor at its core. This imager measures 23.6mm in width and 15.7mm in height, so that the total imaging area of the sensor amounts to 371 mm2.

The TL2 provides an image resolution of 24.1 megapixels, based on 6 014 horizontal pixels and 4 014 vertical pixels.

camera

Sensor size comparison with a film slide

The sensor diagonal measures 28.3mm, which gives rise to a format factor (or crop factor) of 1.5. Hence, the Leica TL2 is a crop-sensor camera, as its sensor is smaller than a traditional 35mm film slide or negative.

Leica TL2 and Credit Card sensor measures
ad

Sensor specs and performance

The table below compares the sensor specs of the Leica TL2 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.

scroll hint
Sensor Characteristics
#   Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Leica TL2 APS-C 24.1 6014 40144K/30p23.913.3175382
2.

Fujifilm X-T100 APS-C 24.0 6000 40004K/15p24.013.4182983
3.

Fujifilm X-T20 APS-C 24.0 6000 40004K/30p23.913.2170481
4.

Fujifilm X-A3 APS-C 24.0 6000 40001080/60p23.813.1166481
5.

Leica C-LUX 1-inch 20.0 5472 36484K/30p22.112.348164
6.

Leica CL APS-C 24.1 6014 40144K/30p24.013.3178882
7.

Leica TL APS-C 16.1 4928 32641080/30p23.913.2169081
8.

Leica T APS-C 16.2 4944 32781080/30p23.012.7108275
9.

Nikon D3500 APS-C 24.0 6000 40001080/60p24.013.4185183
10.

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684
11.

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286
Note: DXO values in italics represent estimates based on sensor size and age.
padding
Further information on the sensor in the Leica TL2 and the camera's operation can be found in the camera manual.

In the United States, the TL2 was initially launched in July 2017 at a price of $1,950.

logo
Check TL2 offers at
ebay.com

Camera to camera comparisons

In case you are interested in seeing how this camera compares to another one, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications Summary
    Camera Model Leica TL2
    Camera Type Mirrorless system camera
    Camera Lens Leica T mount lenses
    Launch Date July 2017
    Launch Price USD 1 950
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 23.6 x 15.7 mm
    Sensor Area 371 mm2
    Sensor Diagonal 28.3 mm
    Crop Factor 1.5x
    Sensor Resolution 24.1 Megapixels
    Image Resolution 6 014 x 4 014 pixels
    Pixel Pitch 3.92 μm
    Pixel Density 6.52 MP/cm2
    Moiré control no AA filter
    Movie Capability 4K/30p Video
    ISO Setting 100 - 50 000 ISO
    Screen Specs
    Viewfinder Type Viewfinder optional
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.7 inch
    LCD Resolution 1230k dots
    LCD Attachment Fixed screen
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 7 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash no On-Board Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-II
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 3.0
    HDMI Port micro HDMI
    Wifi Support Wifi built-in
    Body Specs
    Battery Type Leica BP-DC13 power pack
    Battery Life (CIPA)250 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 134 x 69 x 33 mm
    (5.3 x 2.7 x 1.3 in)
    Camera Weight 399 g (14.1 oz)
