How many Megapixels does the Fujifilm X-H2 have?

The Fujifilm X-H2 is equipped with a an APS-C sensor that offers an image resolution of 39.8 megapixels (MP), or 39.8 million pixels. With its native aspect ratio of 3:2, the sensor has 7 728 horizontal pixels and 5 152 vertical pixels.

A 35mm film slide or negative contains 5-15 MP of useful detail, so that the Fujifilm X-H2 can be considered to be a high-resolution camera that outresolves any 35mm film camera.

Moreover, the X-H2 has the capacity to capture high quality composite images (160MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

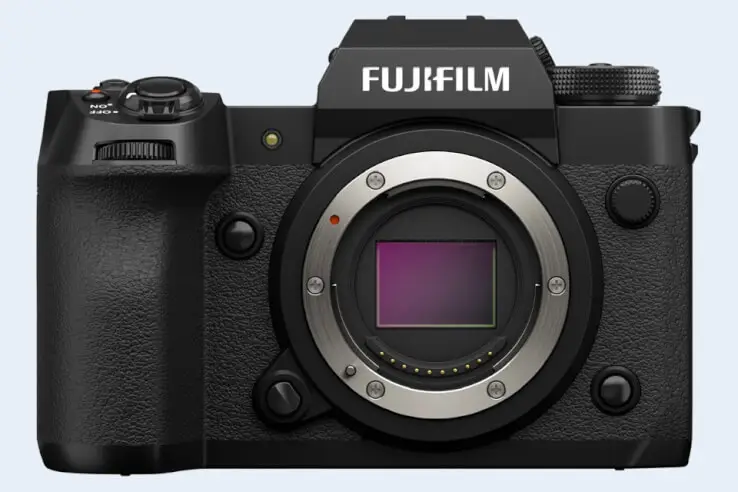

camera

A high megapixel count makes it possible to crop any captured image substantially or to make very large prints from the image file. On the downside, large megapixel files are slower to transfer and take up more storage space on the computer harddisk. Also, high-resolution imaging requires sharper, more expensive lenses than low-res picture taking.

How large can I print with 39.8 MP?

The maximum print size of the Fujifilm X-H2 for good quality output (200 dots per inch) amounts to 38.6 x 25.8 inches or 98.1 x 65.4 cm, for very good quality (250 dpi) 30.9 x 20.6 inches or 78.5 x 52.3 cm, and for excellent quality (300 dpi) 25.8 x 17.2 inches or 65.4 x 43.6 cm. Few people actually print their images that large on a regular basis, but it is nice to have the option to make very large prints of exceptional shots. Also, as mentioned earlier, a key advantage of high-MP cameras is that it is possible to crop an image ex-post and thereby, for example, change the composition of the capture or zoom in on some detail.

Sensor specs and performance

The table below compares the sensor specs of the Fujifilm X-H2 to those of several similar cameras. In addition to sensor class and megapixel count, DXO values are reported as indicators of the sensor's imaging quality (higher is better). Three aspects are covered: color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Fujifilm X-H2 APS-C 39.8 7728 51528k/30p24.313.9224986
2.

Fujifilm X-H2S APS-C 26.0 6240 41606.2k/30p24.313.9222486
3.

Fujifilm X-T5 APS-C 39.8 7728 51526.2k/30p24.313.9226486
4.

Fujifilm GFX 50S II Medium Format 51.1 8256 61921080/30p25.914.83456100
5.

Fujifilm X-T4 APS-C 26.0 6240 41604K/60p24.113.6199584
6.

Fujifilm X-H1 APS-C 24.0 6000 40004K/30p24.013.3180682
7.

OM System OM-1 Four Thirds 20.2 5184 38884K/60p23.413.4155377
8.

Panasonic S5 II Full Frame 24.0 6000 40006K/30p25.414.6315896
9.

Panasonic GH5 II Four Thirds 20.2 5184 38884K/60p23.713.1113679
10.

Pentax K-3 III APS-C 25.6 6192 41284K/30p24.213.7208385
11.

Sony A7 IV Full Frame 32.7 7008 46724K/60p25.414.7337997
Note: DXO values in italics represent estimates based on sensor size and age.
Further information on the sensor in the Fujifilm X-H2 and the camera's operation can be found in the camera manual.

In the United States, the X-H2 was initially launched in September 2022 at a price of $1,999.

logo
Check X-H2 price at
amazon.com

Camera to camera comparisons

If you would like to see a side-by-side review with another camera, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications Summary
    Camera Model Fujifilm X-H2
    Camera Type Mirrorless system camera
    Camera Lens Fujifilm X mount lenses
    Launch Date September 2022
    Launch Price USD 1 999
    Sensor Specs
    Sensor Technology BSI-CMOS
    Sensor Format APS-C Sensor
    Sensor Size 23.5 x 15.7 mm
    Sensor Area 369 mm2
    Sensor Diagonal 28.3 mm
    Crop Factor 1.5x
    Sensor Resolution 39.8 Megapixels
    Image Resolution 7 728 x 5 152 pixels
    Pixel Pitch 3.04 μm
    Pixel Density 10.79 MP/cm2
    Moiré control no AA filter
    Movie Capability 8k/30p Video
    ISO Setting 160 - 12 800 ISO
    ISO Boost 80 - 51 200 ISO
    Image Processor X-Processor 5
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.8x
    Viewfinder Resolution 5760k dots
    Top-Level Screen Control Panel
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1620k dots
    LCD Attachment Swivel screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System On-Sensor Phase-detect
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/8000s
    Continuous Shooting 15 shutter flaps/s
    Shutter Life Expectancy500 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Image StabilizationIn-body stabilization
    Fill Flash no On-Board Flash
    Storage Medium CFexB or SDXC cards
    Single or Dual Card Slots Dual card slots
    UHS card support UHS-II
    Connectivity Specs
    External Flash Hotshoe
    Studio Flash PC Sync socket
    USB Connector USB 3.2
    HDMI Port full HDMI
    Microphone Port External MIC port
    Headphone Socket Headphone port
    Wifi Support Wifi built-in
    Bluetooth Support Bluetooth built-in
    Body Specs
    Environmental SealingWeathersealed body
    Battery Type NP-W235 power pack
    Battery Life (CIPA)680 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 136 x 93 x 85 mm
    (5.4 x 3.7 x 3.3 in)
    Camera Weight 660 g (23.3 oz)
