Touchscreen on the Canon SX1?

The rear monitor on the Canon PowerShot SX1 IS is not touch sensitive. All interactions with the camera's firmware, thus, have to be entered through buttons and dials on the camera body. While this method of operating a camera might not be as intuitive as a touch interface and requires the photographer to memorize the functions of the external controls, it avoids accidental setting changes from unitentional contacts with the screen.

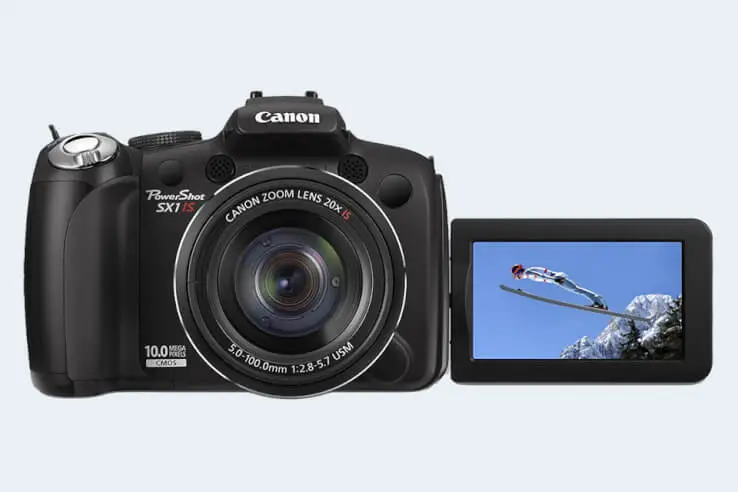

The LCD is flexibly attached to the body to allow for odd-angle shots.

articulated screen
Flexible screen on the SX1

In terms of size and resolution, the rear LCD of the Canon SX1 measures 2.8 inches and offers a resolution of 230,000 dots.

Canon SX1 Screen Specs
Viewfinder Type Electronic viewfinder
Viewfinder Field of View 100%
Viewfinder Resolution 202k dots
Top-Level Screen no Top Display
LCD Framing Live View
LCD Size 2.8 inch
LCD Resolution 230k dots
LCD Attachment Swivel screen
Touch Input No touchscreen

Back side of the Canon SX1 with LCD

SX1 and credit card rear side

As can be seen from the rear-side image, the 2.8-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.

Camera to camera comparisons

The Canon PowerShot SX1 IS is a fixed lens compact camera that was announced in September 2008 and is equipped with a 1/2.3-inch sensor. It offers a resolution of 10 megapixel. In the United States, the camera was initially launched at a price of $599.

Canon SX1:
Check Ebay offers

The table below compares the rear screen specs of the Canon SX1 to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.

scroll hint
LCD and Other Feature Comparison
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon SX1202 n2.8 / 230 swivel n 1/3200s 4.0 Y Y
2.

Canon SX702360 n3.0 / 922 swivel n 1/2000s 10.0 Y Y
3.

Canon SX60922 n3.0 / 922 swivel n 1/2000s 6.4 Y Y
4.

Canon G16optical n3.0 / 922 fixed n 1/4000s 2.2 Y Y
5.

Canon G15optical n3.0 / 922 fixed n 1/4000s 2.1 Y Y
6.

Canon SX50202 n3.0 / 461 swivel n 1/2000s 2.2 Y Y
7.

Canon G12optical n2.8 / 461 swivel n 1/4000s 1.1 Y Y
8.

Canon SX20202 n2.5 / 230 swivel n 1/3200s 0.7 Y Y
9.

Canon SX10202 n2.5 / 230 swivel n 1/3200s 0.7 Y Y
10.

Panasonic FZ2001312 n3.0 / 460 swivel n 1/4000s 12.0 Y Y
11.

Panasonic FZ150202 n3.0 / 460 swivel n 1/2000s 12.0 Y Y

In case you are interested in seeing how this camera compares to another one, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader

    Specifications Summary
    Camera Model Canon SX1
    Camera Type Fixed lens compact camera
    Camera Lens 28-560mm f/2.8-5.7
    Launch Date September 2008
    Launch Price USD 599
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format 1/2.3" Sensor
    Sensor Size 6.17 x 4.55 mm
    Sensor Area 28 mm2
    Sensor Diagonal 7.7 mm
    Crop Factor 5.6x
    Sensor Resolution 10 Megapixels
    Image Resolution 3 648 x 2 736 pixels
    Pixel Pitch 1.67 μm
    Pixel Density 35.55 MP/cm2
    Moiré control no AA filter
    Movie Capability 1080/30p Video
    ISO Setting 100 - 1 600 ISO
    ISO Boost 100 - 3 200 ISO
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Resolution 202k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 2.8 inch
    LCD Resolution 230k dots
    LCD Attachment Swivel screen
    V-logging Friendliness No front-flip
    Touch Input No touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/3200s
    Continuous Shooting 4 shutter flaps/s
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium SDHC cards
    Second Storage Option Single card slot
    UHS card support no
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port YES HDMI
    Wifi Support no Wifi
    Body Specs
    Battery Type 4xAA power pack
    Body Dimensions 128 x 88 x 88 mm
    (5.0 x 3.5 x 3.5 in)
    Camera Weight 615 g (21.7 oz)
