LCD attachment on the Canon M6 Mark II

The LCD screen on the Canon EOS M6 Mark II is flexibly attached to the body. In particular, the LCD can be tilted vertically to facilitate odd-angle shots in landscape orientation. This tilting design is often preferred, for example, by street photographers to a fully articulated, swivel type of LCD attachment, as it is more unobtrusive during shooting than a screen that flips out to the side.

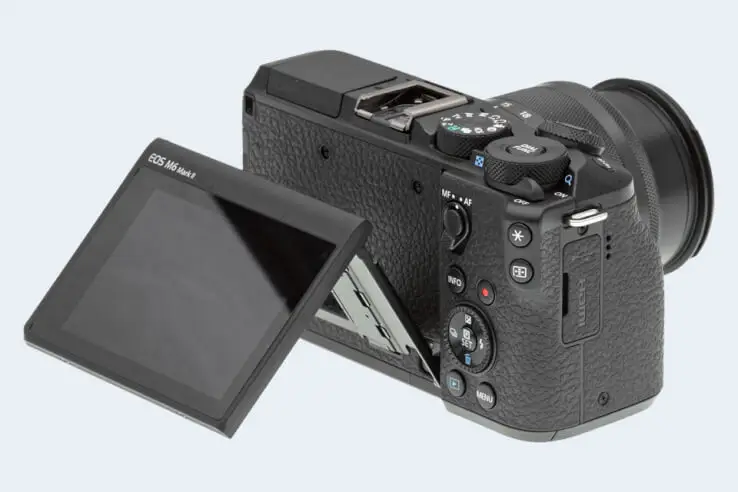

articulated screen
Flexible screen on the M6 Mark II

In terms of size and resolution, the rear LCD of the Canon M6 Mark II measures 3.0 inches and offers a resolution of 1,040,000 dots. The panel is touch sensitive.

Canon M6 Mark II Screen Specs
Viewfinder Type Viewfinder optional
Top-Level Screen no Top Display
LCD Framing Live View
LCD Size 3.0 inch
LCD Resolution 1040k dots
LCD Attachment Tilting screen
Touch Input Touchscreen

Back side of the Canon M6 Mark II with LCD

M6 Mark II and credit card rear side

As can be seen from the rear-side image, the 3.0-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.

ad

Camera to camera comparisons

The Canon EOS M6 Mark II is a mirrorless interchangeable lens camera that was officially introduced in August 2019 and is equipped with an APS-C sensor. It offers a resolution of 32.3 megapixel. In the United States, the camera was initially launched at a price of $849.

logo
Check M6 Mark II offers at
ebay.com

The table below compares the rear screen specs of the Canon M6 Mark II to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.

scroll hint
LCD and Other Feature Comparison
#   Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon M6 Mark IIoptional n3.0 / 1040 tilting Y 1/4000s 14.0/s Y n
2.

Canon M50 Mark II2360 n3.0 / 1040 swivel Y 1/4000s 10.0/s Y n
3.

Canon M200none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
4.

Canon SL3optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon G5 X Mark II2360 n3.0 / 1040 tilting Y 1/2000s 30/s Y Y
6.

Canon M502360 n3.0 / 1040 swivel Y 1/4000s 10.0/s Y n
7.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
8.

Canon T100optical n2.7 / 230 fixed n 1/4000s 3.0/s Y n
9.

Canon M6optional n3.0 / 1040 tilting Y 1/4000s 9.0/s Y n
10.

Canon M52360 n3.2 / 1620 tilting Y 1/4000s 9.0/s Y n
11.

Canon M3optional n3.0 / 1040 tilting Y 1/4000s 4.2/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One convenient feature of the M6 Mark II is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.

If you would like to see a side-by-side review with another camera, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications Summary
    Camera Model Canon M6 Mark II
    Camera Type Mirrorless system camera
    Camera Lens Canon EF-M mount lenses
    Launch Date August 2019
    Launch Price USD 849
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 22.5 x 15.0 mm
    Sensor Area 338 mm2
    Sensor Diagonal 27 mm
    Crop Factor 1.6x
    Sensor Resolution 32.3 Megapixels
    Image Resolution 6 960 x 4 640 pixels
    Pixel Pitch 3.23 μm
    Pixel Density 9.57 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 4K/30p Video
    ISO Setting 100 - 25 600 ISO
    ISO Boost 100 - 51 200 ISO
    Image Processor DIGIC 8
    Screen Specs
    Viewfinder Type Viewfinder optional
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Tilting screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System On-Sensor Phase-detect
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 14 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-II
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Microphone Port External MIC port
    Wifi Support Wifi built-in
    Bluetooth Support Bluetooth built-in
    Body Specs
    Battery Type Canon LP-E17 power pack
    Battery Life (CIPA)305 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 120 x 70 x 49 mm
    (4.7 x 2.8 x 1.9 in)
    Camera Weight 408 g (14.4 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
