LCD resolution of the Canon M10

The rear LCD screen of the Canon EOS M10 has a resolution of 1,040,000 dots and measures 3.0 inches across its diagonal. A high-resolution display offers a clearer and crisper user experience than a lower pixel screen, notably during live view framing and image review. While the physical size of the LCD is naturally limited by the space that is available on the back of the camera, the resolution of the rear screen has continued to increase over time, with new camera models often featuring nicer rear panels as one of the key arguments for a camera upgrade.

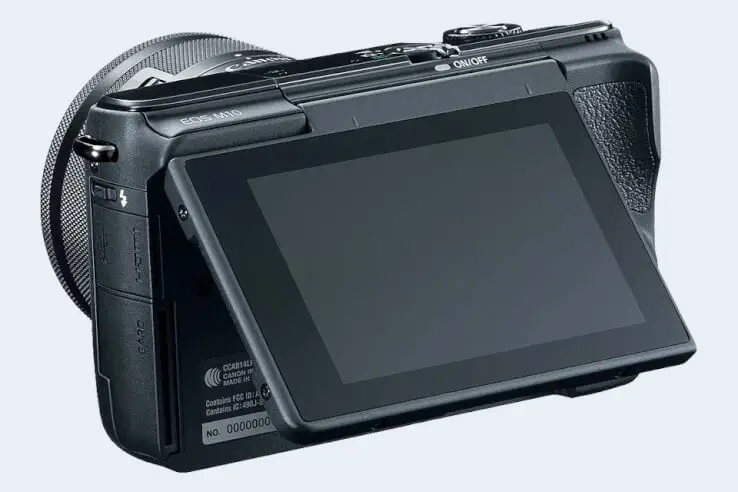

articulated screen
Flexible screen on the M10
Canon M10 Screen Specs
Viewfinder Type No viewfinder
Top-Level Screen no Top Display
LCD Framing Live View
LCD Size 3.0 inch
LCD Resolution 1040k dots
LCD Attachment Tilting screen
Touch Input Touchscreen

In terms of screen handling characteristics, the LCD of the Canon M10 is touch sensitive and is flexibly attached to the body to allow for odd-angle shots. Also, the screen can be turned to be front-facing, such that it enables selfies and facilitates v-logging.

Back side of the Canon M10 with LCD

M10 and credit card rear side

As can be seen from the rear-side image, the 3.0-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.

Camera to camera comparisons

The Canon EOS M10 is a mirrorless interchangeable lens camera that was revealed to the public in October 2015 and is equipped with an APS-C sensor. It offers a resolution of 17.9 megapixel. In the United States, the Canon M10 was initially launched at a price of $499.

Canon M10:
Check Ebay offers

The table below compares the rear screen specs of the Canon M10 to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.

scroll hint
LCD and Other Feature Comparison
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon M10none n3.0 / 1040 tilting Y 1/4000s 4.6 Y n
2.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1 Y n
3.

Canon T6optical n3.0 / 920 fixed n 1/4000s 3.0 Y n
4.

Canon G9 Xnone n3.0 / 1040 fixed Y 1/2000s 6.0 Y Y
5.

Canon M3optional n3.0 / 1040 tilting Y 1/4000s 4.2 Y n
6.

Canon G7 Xnone n3.0 / 1040 tilting Y 1/2000s 6.5 Y Y
7.

Canon T5optical n3.0 / 460 fixed n 1/4000s 3.0 Y n
8.

Canon SL1optical n3.0 / 1040 fixed Y 1/4000s 4.9 Y n
9.

Canon Mnone n3.0 / 1040 fixed Y 1/4000s 4.3 n n
10.

Canon T3ioptical n3.0 / 1040 swivel n 1/4000s 3.7 Y n
11.

Sony A5000none n3.0 / 461 tilting n 1/4000s 3.5 Y n

One convenient feature of the M10 is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.

In case you would like to check on the differences and similarities with other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader

    Specifications Summary
    Camera Model Canon M10
    Camera Type Mirrorless system camera
    Camera Lens Canon EF-M mount lenses
    Launch Date October 2015
    Launch Price USD 499
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 22.3 x 14.9 mm
    Sensor Area 332 mm2
    Sensor Diagonal 26.8 mm
    Crop Factor 1.6x
    Sensor Resolution 17.9 Megapixels
    Image Resolution 5 184 x 3 456 pixels
    Pixel Pitch 4.31 μm
    Pixel Density 5.39 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/30p Video
    ISO Setting 100 - 12 800 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor DIGIC 6
    DXO Sensor Quality (score) 65
    DXO Color Depth (bits) 22.2
    DXO Dynamic Range (EV) 11.4
    DXO Low Light (ISO) 753
    Screen Specs
    Viewfinder Type No viewfinder
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Tilting screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System On-Sensor Phase-detect
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 4.6 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Second Storage Option Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash no Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Wifi Support Wifi built-in
    Near-Field Communication NFC built-in
    Body Specs
    Battery Type LP-E12 power pack
    Battery Life (CIPA)255 shots per charge
    Body Dimensions 108 x 67 x 35 mm
    (4.3 x 2.6 x 1.4 in)
    Camera Weight 301 g (10.6 oz)
