What is the pixel pitch of the Canon 70D?

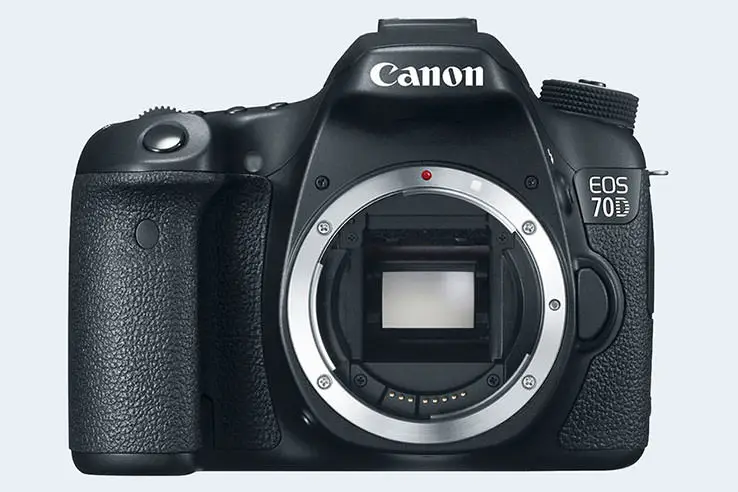

The Canon EOS 70D provides 20 megapixels from an APS-C sensor. This pixel density gives rise to a size of the individual pixel of 4.11µm.
The pixel size or pixel pitch can be calculated by dividing the sensor area by the pixel count and then taking the square root. In particular, the sensor in the Canon 70D measures 22.5mm in width and 15.0mm in height, so that the total imaging area of the sensor amounts to 338 mm2. Moreover, the 70D has 5 472 horizontal pixels and 3 648 vertical pixels, for a total of 20 megapixels. Then, the size (height or width) of each individual pixel can be calculated as the square root of the ratio of the sensor area (338 mm2) to the MP count (19 961 856).
Larger pixels provide advantages with respect to gathering light, particularly in low-light situations. Large pixels notably have a better signal to noise ratio, meaning that they can better differentiate between incoming photons and the noisy signals that the internal processes of the camera create. As a result, big pixels are particularly helpful to the photographer when shooting with high ISO settings.
Sensor specs and performance
The table below compares the sensor specs of the Canon 70D to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon 70D | APS-C | 20.0 | 5472 | 3648 | 1080/30p | 22.5 | 11.6 | 926 | 68 | |
2. | Canon 80D | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.6 | 13.2 | 1135 | 79 | |
3. | Canon G3 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.4 | 12.3 | 521 | 63 | |
4. | Canon 7D II | APS-C | 20.0 | 5472 | 3648 | 1080/60p | 22.4 | 11.8 | 1082 | 70 | |
5. | Canon T5 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.3 | 724 | 63 | |
6. | Canon 6D | Full Frame | 20.0 | 5472 | 3648 | 1080/30p | 23.8 | 12.1 | 2340 | 82 | |
7. | Canon 60D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.2 | 11.5 | 813 | 66 | |
8. | Canon 7D | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 854 | 66 | |
9. | Canon 50D | APS-C | 15.1 | 4752 | 3168 | none | 21.8 | 11.4 | 696 | 63 | |
10. | Nikon D7100 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.2 | 13.7 | 1256 | 83 | |
11. | Sony RX10 | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 22.9 | 12.6 | 474 | 69 |
Further information on the sensor in the Canon 70D and the camera's operation can be found in the camera manual.
In the United States, the 70D was initially launched in July 2013 at a price of $1,199.
Camera to camera comparisons
If you would like to see a side-by-side review with another camera, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Camera Model | Canon 70D | |
---|---|---|
Camera Type | Digital single lens reflex | |
Camera Lens | Canon EF mount lenses | |
Launch Date | July 2013 | |
Launch Price | USD 1 199 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | APS-C Sensor | |
Sensor Size | 22.5 x 15.0 mm | |
Sensor Area | 338 mm2 | |
Sensor Diagonal | 27 mm | |
Crop Factor | 1.6x | |
Sensor Resolution | 20 Megapixels | |
Image Resolution | 5 472 x 3 648 pixels | |
Pixel Pitch | 4.11 μm | |
Pixel Density | 5.91 MP/cm2 | |
Moiré control | Anti-Alias filter | |
Movie Capability | 1080/30p Video | |
ISO Setting | 100 - 12 800 ISO | |
ISO Boost | 100 - 25 600 ISO | |
Image Processor | DIGIC 5+ | |
DXO Sensor Quality (score) | 68 | |
DXO Color Depth (bits) | 22.5 | |
DXO Dynamic Range (EV) | 11.6 | |
DXO Low Light (ISO) | 926 | |
Screen Specs | ||
Viewfinder Type | Optical viewfinder | |
Viewfinder Field of View | 98% | |
Viewfinder Magnification | 0.59x | |
Top-Level Screen | Control Panel | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 1040k dots | |
LCD Attachment | Swivel screen | |
V-logging Friendliness | Front-flip possible | |
Touch Input | Touchscreen | |
Shooting Specs | ||
Focus System | Phase-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/8000s | |
Continuous Shooting | 7 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | Built-in Flash | |
Storage Medium | SDXC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | UHS-I | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | mini HDMI | |
Microphone Port | External MIC port | |
Wifi Support | Wifi built-in | |
Body Specs | ||
Environmental Sealing | Weathersealed body | |
Battery Type | Canon LP-E6 power pack | |
Battery Life (CIPA) | 920 shots per charge | |
Body Dimensions |
139 x 104 x 79 mm (5.5 x 4.1 x 3.1 in) |
|
Camera Weight | 755 g (26.6 oz) |
