Canon SX10 PDF User Manual

Did you lose or misplace the instruction manual that came with your Canon PowerShot SX10 IS? It happens all too easily, but fortunately Canon makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the SX10 offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

camera

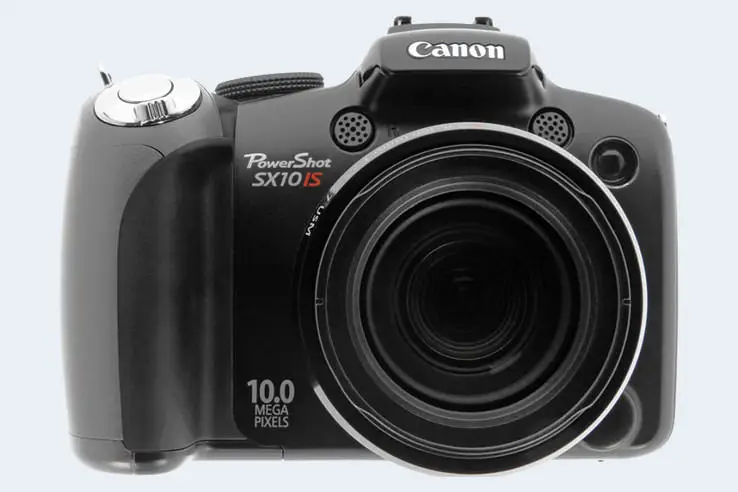

In any case, the SX10 is an advanced imaging tool, whose many features merit serious attention. This fixed lens compact camera was revealed to the public on September 17th, 2008, which means that, as of today, the camera is 5692 days old (young?). The camera has meanwhile been discontinued and was succeeded by the Canon SX20 as a replacement in the same line of cameras.

ad

Canon's user guide for the SX10

The camera's user guide is 292 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the SX10 is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Canon PowerShot SX10 IS manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Canon's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Canon SX10 manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

ad

Canon SX10 FAQ

Below are some additional questions and answers concerning some particular features of the SX10.

What is the technology behind the imaging sensor in the Canon SX10?

The camera is build around a CCD (Charged Coupled Device) sensor.

What is the ISO sensitivity range of the Canon SX10?

The camera has a native sensitivity range from ISO 100 to ISO 1600.

Does the Canon SX10 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Canon SX10 for flash photography?

The SX10's flash sync speed is 1/500 sec.

Which battery does the Canon SX10 use?

The camera gets its power from the Canon 4xAA, which is a rechargeable Lithium-Ion power pack.

ad

Further reading

How does the SX10 stack up against available alternatives? In case you are interested in seeing how this camera compares to another one, just make your choice using the following search menu. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Canon PowerShot SX10 IS.

    Specifications Summary
    Camera Model Canon SX10
    Camera Type Fixed lens compact camera
    Camera Lens 28-560mm f/2.8-5.7
    Launch Date September 2008
    Launch Price USD 399
    Sensor Specs
    Sensor Technology CCD
    Sensor Format 1/2.3" Sensor
    Sensor Size 6.17 x 4.55 mm
    Sensor Area 28 mm2
    Sensor Diagonal 7.7 mm
    Crop Factor 5.6x
    Sensor Resolution 10 Megapixels
    Image Resolution 3 648 x 2 736 pixels
    Pixel Pitch 1.67 μm
    Pixel Density 35.55 MP/cm2
    Moiré control no AA filter
    Movie Capability 480/30p Video
    ISO Setting 100 - 1 600 ISO
    ISO Boost 100 - 3 200 ISO
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Resolution 202k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 2.5 inch
    LCD Resolution 230k dots
    LCD Attachment Swivel screen
    V-logging Friendliness No front-flip
    Touch Input No touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/3200s
    Continuous Shooting 0.7 shutter flaps/s
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Fill Flash Built-in Flash
    Storage Medium SDHC cards
    Single or Dual Card Slots Single card slot
    UHS card support no
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port no HDMI
    Wifi Support no Wifi
    Body Specs
    Battery Type Canon 4xAA power pack
    Body Dimensions 123 x 88 x 87 mm
    (4.8 x 3.5 x 3.4 in)
    Camera Weight 600 g (21.2 oz)
