Leica CL vs Olympus E-M5

The Leica CL (Typ 7323) and the Olympus OM-D E-M5 are two digital cameras that were officially introduced, respectively, in November 2017 and February 2012. Both the CL and the E-M5 are mirrorless interchangeable lens cameras that are based on an APS-C (CL) and a Four Thirds (E-M5) sensor. The Leica has a resolution of 24.1 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica CL		Olympus E-M5
Mirrorless system camera		Mirrorless system camera
Leica T mount lenses		Micro Four Thirds lenses
24.1 MP – APS-C sensor		15.9 MP – Four Thirds sensor
4K/30p Video		1080/60i Video
ISO 100-50,000		ISO 200-25,600
Electronic viewfinder (2360k dots)		Electronic viewfinder (1440k dots)
3.0" LCD – 1040k dots		3.0" LCD – 610k dots
Fixed touchscreen		Tilting touchscreen
10 shutter flaps per second		9 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
220 shots per battery charge		360 shots per battery charge
131 x 78 x 45 mm, 403 g		122 x 89 x 43 mm, 425 g

Check CL offers at
ebay.com
Check E-M5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica CL (Typ 7323) and the Olympus OM-D E-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

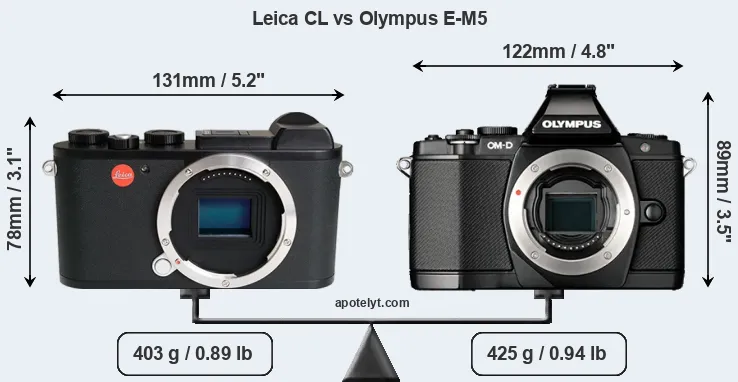

An illustration of the physical size and weight of the Leica CL and the Olympus E-M5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-M5 can be obtained in two different colors (black, silver), while the CL is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 is notably larger (6 percent) than the Leica CL. Moreover, the E-M5 is markedly heavier (5 percent) than the CL. It is noteworthy in this context that the E-M5 is splash and dust-proof, while the CL does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the CL gets 220 shots out of its Leica BP-DC12 battery, while the E-M5 can take 360 images on a single charge of its Olympus BLN-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
2.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	US$ 1 299	ebay.com
3.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
5.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
6.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	US$ 1 049	ebay.com
7.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
8.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	US$ 1 695	ebay.com
9.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
10.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
11.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
13.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
14.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
15.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
16.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	US$ 1 199	ebay.com
17.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M5 was launched at a markedly lower price (by 54 percent) than the CL, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

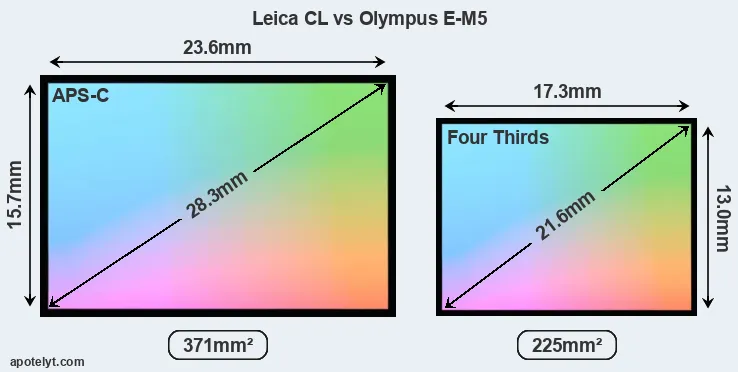

Of the two cameras under consideration, the Leica CL features an APS-C sensor and the Olympus E-M5 a Four Thirds sensor. The sensor area in the E-M5 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the CL has a native 3:2 aspect ratio, while the one in the E-M5 offers a 4:3 aspect.

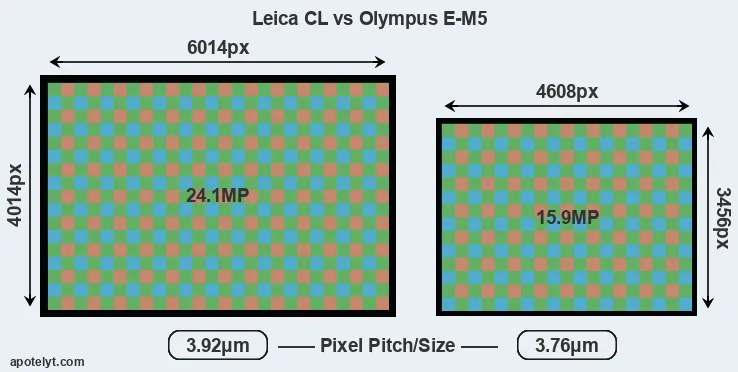

With 24.1MP, the CL offers a higher resolution than the E-M5 (15.9MP), but the CL nevertheless has larger individual pixels (pixel pitch of 3.92μm versus 3.76μm for the E-M5) due to its larger sensor. Moreover, the CL is a much more recent model (by 5 years and 9 months) than the E-M5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the CL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica CL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the CL for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inches or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inches or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20 x 13.4 inches or 50.9 x 34 cm. The corresponding values for the Olympus E-M5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Leica CL (Typ 7323) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Olympus OM-D E-M5 are ISO 200 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
2.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
3.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1664	81
4.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
5.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
6.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
7.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
8.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
9.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
10.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
11.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
14.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
15.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
16.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
17.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the CL provides a higher video resolution than the E-M5. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the CL offers a substantially higher resolution than the one in the E-M5 (2360k vs 1440k dots). The adjacent table lists some of the other core features of the Leica CL and Olympus E-M5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
2.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
3.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
5.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
7.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
8.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
9.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
10.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
11.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
14.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
15.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
16.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
17.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the CL, but is missing on the E-M5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the CL is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica CL has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the CL and the E-M5 write their files to SDXC cards. The CL supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the E-M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica CL (Typ 7323) and Olympus OM-D E-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
2.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
8.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
10.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
11.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
14.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-

It is notable that the CL offers wifi support, while the E-M5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the CL and the E-M5 have been discontinued, but can regularly be found used on ebay. The E-M5 was replaced by the Olympus E-M5 II, while the CL does not have a direct successor. Further information on the features and operation of the CL and E-M5 can be found, respectively, in the Leica CL Manual (free pdf) or the online Olympus E-M5 Manual.

Review summary

So what conclusions can be drawn? Is the Leica CL better than the Olympus E-M5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Leica CL (Typ 7323):

• More detail: Offers more megapixels (24.1 vs 15.9MP) with a 26% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 1440k dots).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 610k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 5 years and 9 months of technical progress since the E-M5 launch.

Arguments in favor of the Olympus OM-D E-M5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.49x).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Longer lasting: Gets more shots (360 versus 220) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in February 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the CL is the clear winner of the match-up (17 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica CL and the Olympus E-M5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the CL and the E-M5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
2.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	US$ 1 299	ebay.com
3.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
5.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
6.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	US$ 1 049	ebay.com
7.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
8.		Leica TL	..	..	..	..	..	4/5	Nov 2016	US$ 1 695	ebay.com
9.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
10.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
11.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
13.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
14.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
15.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
16.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	US$ 1 199	ebay.com
17.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check CL offers at
ebay.com
Check E-M5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check CL offers at
ebay.com
Check E-M5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
