Canon SX20 vs Panasonic FZ300

The Canon PowerShot SX20 IS and the Panasonic Lumix DMC-FZ300 (labelled Panasonic FZ330 in some countries) are two digital cameras that were announced, respectively, in August 2009 and July 2015. Both the SX20 and the FZ300 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. Both cameras offer a resolution of 12 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX20		Panasonic FZ300
Fixed lens compact camera		Fixed lens compact camera
28-560mm f/2.8-5.7		25-600mm f/2.8
12 MP – 1/2.3" sensor		12 MP – 1/2.3" sensor
720/30p Video		4K/30p Video
ISO 100-3,200		ISO 100-6,400
Electronic viewfinder (202k dots)		Electronic viewfinder (1440k dots)
2.5" LCD – 230k dots		3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive)		Swivel touchscreen
0.7 shutter flaps per second		12 shutter flaps per second
not weather sealed		Weathersealed body
123 x 88 x 87 mm, 600 g		132 x 92 x 117 mm, 691 g

Check SX20 offers at
ebay.com
Check FZ300 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX20 IS and the Panasonic Lumix DMC-FZ300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

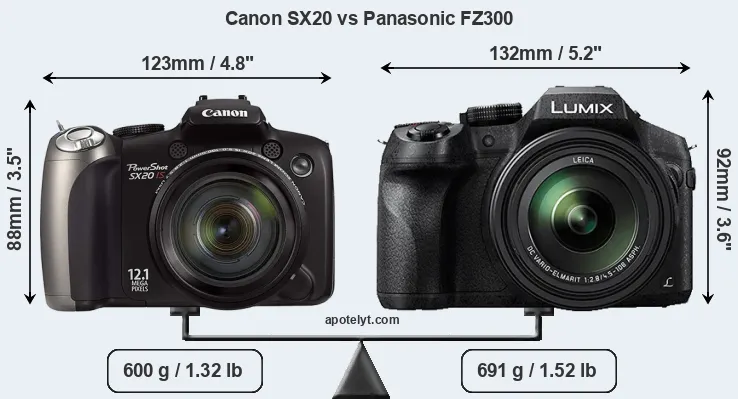

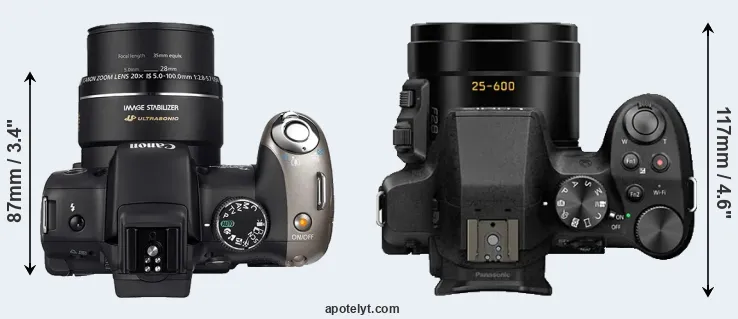

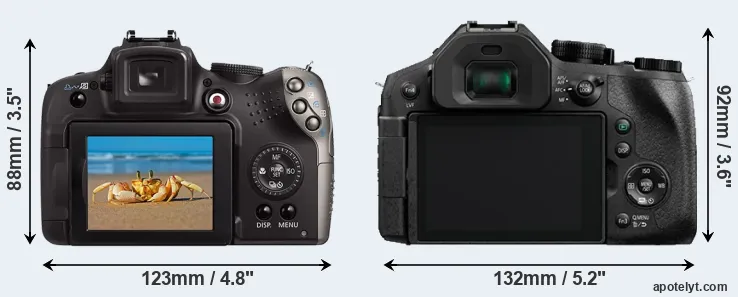

The side-by-side display below illustrates the physical size and weight of the Canon SX20 and the Panasonic FZ300. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FZ300 is notably larger (12 percent) than the Canon SX20. Moreover, the FZ300 is markedly heavier (15 percent) than the SX20. It is noteworthy in this context that the FZ300 is splash and dust-proof, while the SX20 does not feature any corresponding weather-sealing.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
2.		Panasonic FZ300	132 mm	92 mm	117 mm	691 g	380	Y	Jul 2015	US$ 599	amazon.com
3.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	US$ 599	ebay.com
4.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
5.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
6.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
10.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
11.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
12.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
13.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
14.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
15.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX20 was launched at a markedly lower price (by 33 percent) than the FZ300, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

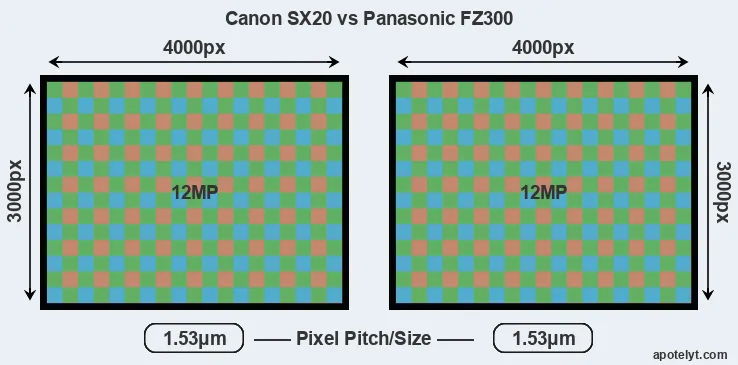

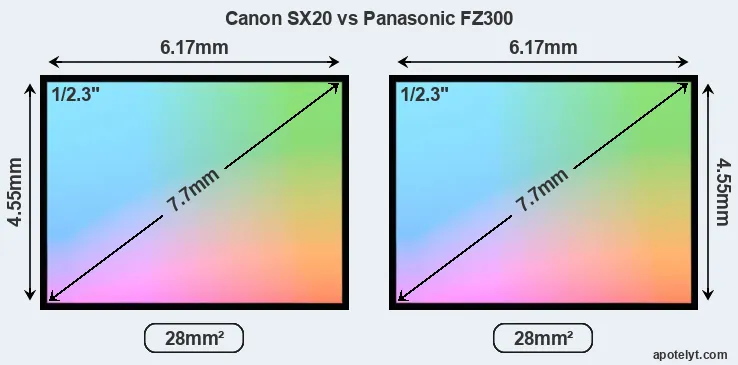

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 12 megapixels. This similarity in sensor specs implies that both the SX20 and the FZ300 have the same pixel density, as well as the same pixel size. It should, however, be noted that the FZ300 is much more recent (by 5 years and 10 months) than the SX20, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX20 IS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-FZ300 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the SX20 is build around a CCD sensor, while the FZ300 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
2.		Panasonic FZ300	1/2.3	12.0	4000	3000	4K/30p	19.3	11.0	97	38
3.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
4.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
5.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
6.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
10.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
11.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
12.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
13.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
14.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
15.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the FZ300 provides a better video resolution than the SX20. It can shoot movie footage at 4K/30p, while the Canon is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the FZ300 offers a substantially higher resolution than the one in the SX20 (1440k vs 202k dots). The following table reports on some other key feature differences and similarities of the Canon SX20, the Panasonic FZ300, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
2.		Panasonic FZ300	1440	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
3.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
4.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
5.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
6.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
10.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
12.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
13.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
14.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
15.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The FZ300 has a touchscreen, while the SX20 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the FZ300 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic FZ300 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the SX20 and the FZ300 have zoom lenses built in. The SX20 has a 28-560mm f/2.8-5.7 optic and the FZ300 offers a 25-600mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Panasonic provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Canon. Both cameras offer the same maximum aperture.

The SX20 writes its imaging data to SDHC cards, while the FZ300 uses SDXC cards. The FZ300 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX20 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX20 IS and Panasonic Lumix DMC-FZ300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Panasonic FZ300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
3.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
4.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
6.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
10.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
11.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the FZ300 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX20 does not provide wifi capability.

The FZ300 is a recent model that features in the current product line-up of Panasonic. In contrast, the SX20 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the SX20 was succeeded by the Canon SX30. Further information on the features and operation of the SX20 and FZ300 can be found, respectively, in the Canon SX20 Manual (free pdf) or the online Panasonic FZ300 Manual.

Review summary

So how do things add up? Is the Canon SX20 better than the Panasonic FZ300 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon PowerShot SX20 IS:

• More compact: Is smaller (123x88mm vs 132x92mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 91g or 13 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in August 2009).

Arguments in favor of the Panasonic Lumix DMC-FZ300:

• Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (1440k vs 202k dots).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 0.7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 5 years and 10 months of technical progress since the SX20 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the FZ300 is the clear winner of the contest (17 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX20 and the Panasonic FZ300 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX20 or the FZ300 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
2.		Panasonic FZ300	..	+ +	..	..	4.5/5	4.5/5	Jul 2015	US$ 599	amazon.com
3.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	US$ 599	ebay.com
4.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
5.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
6.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
10.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
11.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
12.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
13.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
14.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
15.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
