Canon M3 vs Olympus E-PL9

The Canon EOS M3 and the Olympus PEN E-PL9 are two digital cameras that were officially introduced, respectively, in February 2015 and February 2018. Both the M3 and the E-PL9 are mirrorless interchangeable lens cameras that are based on an APS-C (M3) and a Four Thirds (E-PL9) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M3		Olympus E-PL9
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Micro Four Thirds lenses
24 MP – APS-C sensor		15.9 MP – Four Thirds sensor
1080/30p Video		4K/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 200-6,400 (100 - 25,600)
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Tilting touchscreen
4.2 shutter flaps per second		8.6 shutter flaps per second
Lens stabilization only		In-body stabilization
250 shots per battery charge		350 shots per battery charge
111 x 68 x 44 mm, 366 g		117 x 68 x 39 mm, 380 g

Check M3 offers at
ebay.com
Check E-PL9 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M3 and the Olympus PEN E-PL9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

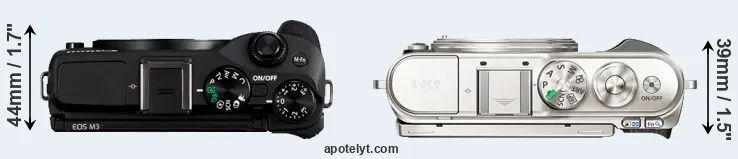

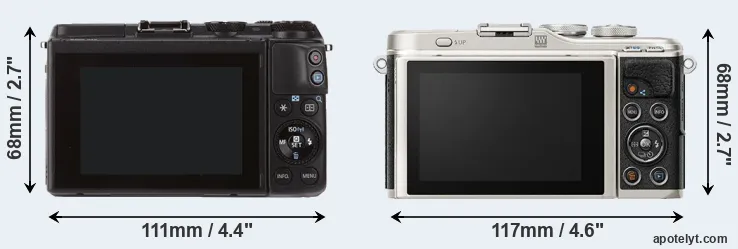

The side-by-side display below illustrates the physical size and weight of the Canon M3 and the Olympus E-PL9. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M3 can be obtained in two different colors (black, white), while the E-PL9 is available in four color-versions (black, brown, blue, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL9 is notably larger (5 percent) than the Canon M3. Moreover, the E-PL9 is slightly heavier (4 percent) than the M3. In this context, it is worth noting that neither the M3 nor the E-PL9 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M3 gets 250 shots out of its Canon LP-E17 battery, while the E-PL9 can take 350 images on a single charge of its Olympus BLS-50 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	EUR 749	ebay.com
2.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	EUR 599	ebay.com
3.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	EUR 699	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	EUR 789	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	EUR 649	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	EUR 685	ebay.com
7.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	EUR 599	ebay.com
8.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	EUR 1 129	ebay.com
9.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	EUR 799	ebay.com
10.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	EUR 499	ebay.com
11.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	EUR 479	ebay.com
12.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	EUR 649	ebay.com
13.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	EUR 599	ebay.com
14.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	EUR 599	ebay.com
15.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	EUR 549	ebay.com
16.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	EUR 599	ebay.com
17.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	EUR 549	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL9 was launched at a somewhat lower price (by 12 percent) than the M3, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M3 features an APS-C sensor and the Olympus E-PL9 a Four Thirds sensor. The sensor area in the E-PL9 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M3 has a native 3:2 aspect ratio, while the one in the E-PL9 offers a 4:3 aspect.

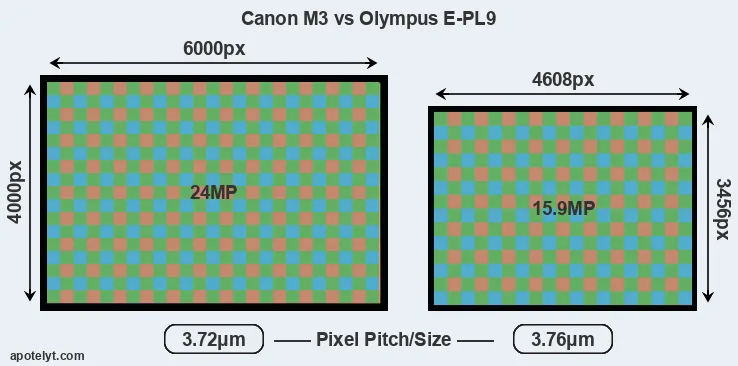

With 24MP, the M3 offers a higher resolution than the E-PL9 (15.9MP), but the M3 has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-PL9). Moreover, the E-PL9 is a much more recent model (by 3 years) than the M3, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon M3 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M3 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL9 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The M3 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M3 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL9 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
2.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
3.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
8.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
9.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
10.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
11.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
12.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
13.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
14.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
15.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
16.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
17.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-PL9 provides a better video resolution than the M3. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The M3 and the E-PL9 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the M3 can be equipped with an optional viewfinder – the EVF-DC1. The table below summarizes some of the other core capabilities of the Canon M3 and Olympus E-PL9 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
2.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
3.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
8.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
11.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
12.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
13.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
15.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
16.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
17.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-PL9 and the M3 is in-body image stabilization (IBIS). The E-PL9 reduces the risk of handshake-induced blur with all attached lenses, while the M3 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL9 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-PL9 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M3 and the E-PL9 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M3 and Olympus PEN E-PL9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
2.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
11.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
12.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
17.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the M3 has a microphone port, which is missing on the E-PL9. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the M3 and the E-PL9 have been discontinued, but can regularly be found used on ebay. The M3 was replaced by the Canon M6, while the E-PL9 was followed by the Olympus E-PL10. Further information on the features and operation of the M3 and E-PL9 can be found, respectively, in the Canon M3 Manual (free pdf) or the online Olympus E-PL9 Manual.

Review summary

So what conclusions can be drawn? Is the Canon M3 better than the Olympus E-PL9 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M3:

• More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been available for much longer (launched in February 2015).

Reasons to prefer the Olympus PEN E-PL9:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Faster burst: Shoots at higher frequency (8.6 vs 4.2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (350 versus 250) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was released into a lower priced segment (12 percent cheaper at launch).
• More modern: Reflects 3 years of technical progress since the M3 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-PL9 emerges as the winner of the match-up (9 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M3 and the Olympus E-PL9 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the M3 or the E-PL9 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	EUR 749	ebay.com
2.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	EUR 599	ebay.com
3.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	EUR 699	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	EUR 789	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	EUR 649	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	EUR 685	ebay.com
7.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	EUR 599	ebay.com
8.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	EUR 1 129	ebay.com
9.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	EUR 799	ebay.com
10.		Canon M10	..	..	..	..	..	4/5	Oct 2015	EUR 499	ebay.com
11.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	EUR 479	ebay.com
12.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	EUR 649	ebay.com
13.		Olympus E-PL6	..	..	..	..	..	..	May 2013	EUR 599	ebay.com
14.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	EUR 599	ebay.com
15.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	EUR 549	ebay.com
16.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	EUR 599	ebay.com
17.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	EUR 549	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
